KFI STEALTH SE35-EKO Owner's Manual And Operating Instructions

3500 lb. atv winch

Advertisement

Quick Links

Model #SE35
Revision Date 2020-12-09
Owner's Manual and Operating Instructions
3500 lb.
ATV WINCH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STEALTH SE35-EKO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KFI STEALTH SE35-EKO

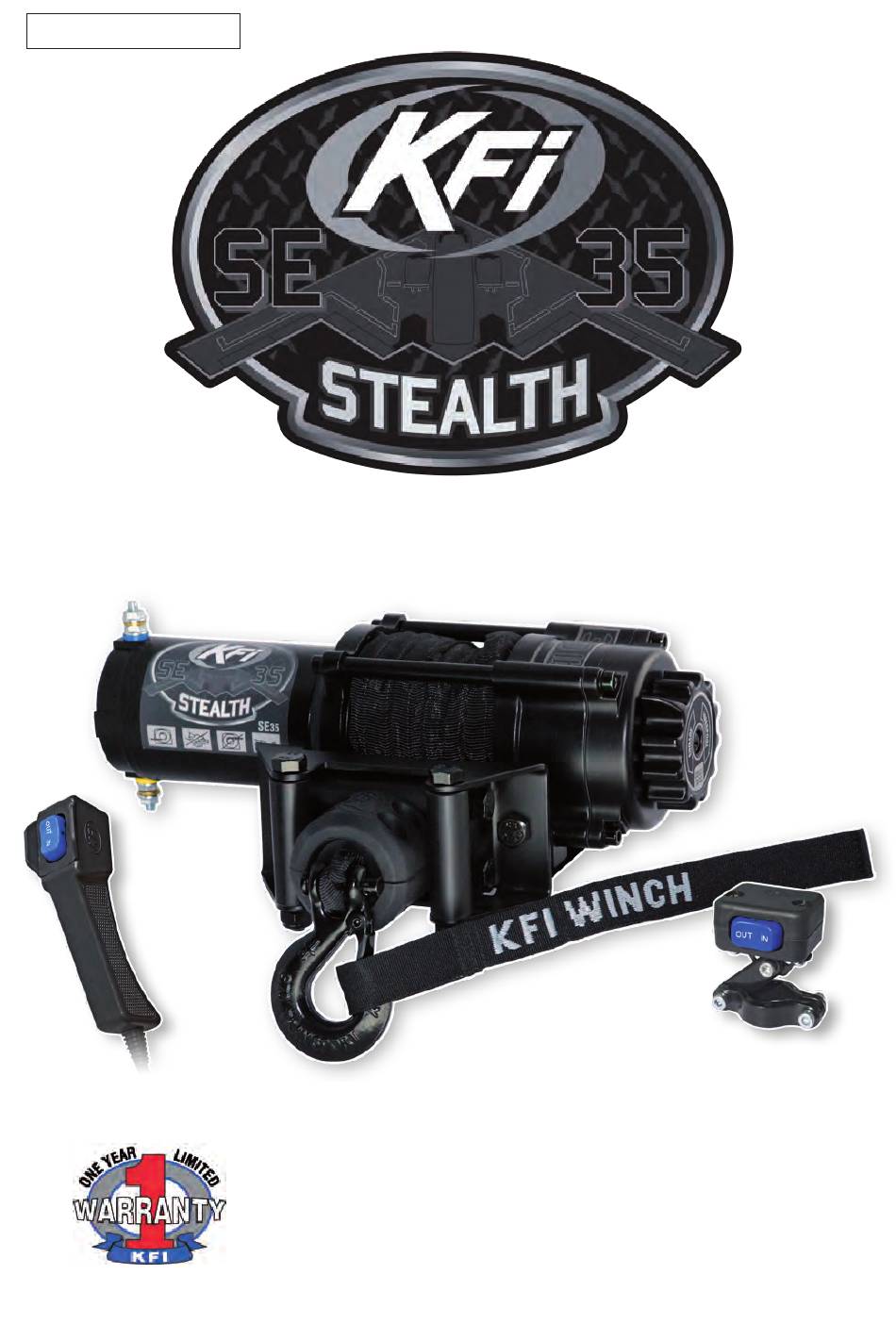

  • Page 1 Model #SE35 Revision Date 2020-12-09 Owner’s Manual and Operating Instructions 3500 lb. ATV WINCH...
  • Page 3: Table Of Contents

    Table of Contents Introduction��������������������������������������������������������������������������������� 1 Accessories �������������������������������������������������������������������������������������������������������1 This Booklet �����������������������������������������������������������������������������������������������������1 Introduction��������������������������������������������������������������������������������� 1 ManualConventions������������������������������������������������������������������� 2 SafetyRules���������������������������������������������������������������������������������� 3 ControlsandFeatures����������������������������������������������������������������� 5 Winch ���������������������������������������������������������������������������������������������������������������5 Installation � ����������������������������������������������������������������������������������� 6 Step 1-Mount the Winch ����������������������������������������������������������������������������������6 Step 2-Mount the Contactor �����������������������������������������������������������������������������6 Step 3-Mount Mini Rocker Switch ������������������������������������������������������������������6 Step 4-Mount the Hand Remote Socket (Optional) �����������������������������������������7 Step 5-Wiring the Winch ����������������������������������������������������������������������������������7 WinchWiringDiagram �...
  • Page 5: Introduction

    Introduction Introduction This Booklet Congratulations on your purchase of a KFI winch. Every effort has been made to ensure the KFI researches and develops winches to strict accuracy and completeness of the information in specifications. With proper use and maintenance, this manual.
  • Page 6: ManualConventions

    Manual Conventions Manual Conventions CAUTION This manual uses the following symbols to CAUTION indicates a potentially hazardous help differentiate between different kinds of situation which, if not avoided, may result in information. The safety symbol is used with a key minor or moderate injury.
  • Page 7: SafetyRules

    Manual Conventions Safety Rules WARNING WARNING Read this manual thoroughly before operating Do not move the vehicle to pull a load (towing) your winch. Failure to follow instructions could on the winch cable. This could result in cable result in serious injury or death. breakage.
  • Page 8: Safety Rules

    Safety Rules CAUTION WARNING Do not wrap the cable around any object and Batteries contain acid and produce explosive hook it back onto itself. gases. Keep sparks, flames and cigarettes away from CAUTION batteries at all times. Wear safety glasses and protect the eyes at all times.
  • Page 9: ControlsAndFeatures

    Controls and Features Read this owner’s manual before operating your winch. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. Winch Motor (1): 1.5 HP 12V DC motor provides power Planetary Gear System (7): The reduction gears to the planetary gear mechanism.
  • Page 10: Installation

    Installation location. Make sure the location you chose allows sufficient clearance from all metal This KFI 3,500 lb winch is designed with a bolt components. Drill mounting holes if required. pattern that is standard in this class of winch. Once location is found do not install until all Many winch mounting kits are available that wiring is completed.
  • Page 11: Step 4-Mount The Hand Remote Socket (Optional)

    Installation Step 4-Mount the Hand Remote NOTE Socket Depending on the location of the contactor, Determine a mounting location for the hand you may need to use an alternate winch remote socket. Make sure the area behind configuration. Please see the “Alternate your selected location is clear.
  • Page 12: WinchWiringDiagram

    Installation Winch Wiring Diagram POS + POS + These two posts must be wired to the battery! TO WINCH TO BATTERY BLUE POST BLACK POST TO BATTERY + TO WINCH + RED POST YELLOW POST LEADS AT DEFAULT POSITION LEADS ROTATED 90° With some applications the motor leads may need to be rotated to avoid interference with other components.
  • Page 13: SwitchWiringDiagram

    Installation Switch Wiring Diagram Cable Hook Stopper Installation and Use Freespool winch and pull out approx. 2 feet of synthetic rope. Assemble cable hook stopper as shown to the right with the flat portion of the two halves resting against your fairlead. Tighten fasteners.
  • Page 14: Operation

    Operation Self Recovery General Tips for Safe Operation Locate a suitable anchor such as a strong tree Your SE35 winch is rated at 3,500 lbs. capacity in trunk or boulder. Always use a sling as an anchor first layer (max) when spooling the first rope layer point.
  • Page 15: Winching Techniques

    Operation Winching Techniques 15. The vehicle to be winched should be placed in neutral and the parking brake released. Only release the loads to the winch. This can damage the winch, cable and vehicle. Take time to assess your situation and plan your pull.
  • Page 16: Maintenance

    Maintenance Lubrication Maintenance All moving parts within the Electric Winch have The owner/operator is responsible for all periodic been Lubricated using high temperature lithium maintenance. grease at the factory. No internal lubrication is WARNING required under normal conditions. If the winch is subjected to extreme conditions lubrication may be Never operate a damaged or defective winch.
  • Page 17: Se35Specifications

    SE35 Specifications Performance Specifications Rated Pull 3,500 lbs (1589 kg) Gear Reduction Ratio 171:1 Motor Permanent Magnet 1.5 HP (DC 12V) Drum Size 1.5” (D) x 3.15” (L) 38 mm (D) x 80 mm (L) Synthetic Cable 3/16” (D) x 50.0’ (L) 4.8 mm (D) x 15.2 m (L) (48 useable feet with five wraps on the winch drum)
  • Page 18: Model Winch Diagram

    SE35 Specifications Model Winch Diagram Item #35 Sold as a Kit SE35...
  • Page 19: Winch Parts List

    SE35 Specifications Winch Parts List Part # Description Part # Description MOTOR-35-BL Motor Assembly 250032-B Hex Bolt M8 x 25 – Black Zinc 250001-B Screw M6 x 20 – Black Zinc 250063-B Locking Washer Φ8 – Black Zinc 250002-B Washer -Flat Φ6 250033-B Screw M10 x 20–...
  • Page 20: Troubleshooting

    Contactor Issue Refer to our contactor troubleshooting guide at www.kfiproducts.com under “Support” Call KFI Technical support Double check your winch wiring diagram to make sure all wires are correct. Wired Incorrectly Hand remote / Dash rocker wires need to always Contactor clicks but the be green to green and black to black.
  • Page 21: Warranty

    WARRANTIES, EXPRESS OR IMPLIED, replacement of the defective part or component INCLUDING WARRANTIES OF MERCHANT- at a KFI Service Center. KFI will provide you with ABILITY OR FITNESS FOR A PARTICULAR a case number for warranty service. Please keep PURPOSE it for future reference.
  • Page 22: Contact Information

    Your purchase of the product shall constitute your release and indemnity in favor of KFI and/or or its parent company, its shareholders, officers, directors and employees from any and all claims or injuries of every kind resulting from use or operation of the product, including costs and attorney’s fees...
  • Page 23: SyntheticCable

    Synthetic Cable DANGER Sharp edges and rough surfaces will shorten cable life. Inspect the cable and protective sleeve before use. Replace cable immediately if the cable has cut strands, fused or melted fibers, odd stiff sections, chemical contaminated, flat areas or lumps that cannot be eliminated after flexing the cable.
  • Page 24 1-877-346-2050 KFI Products P.O. Box 32 721 Sata Drive Spring Valley, MN 55975 www.kfiproducts.com Made in China ©2019 Kappers Fabricating Inc. Corporate Office: Kappers Fabricating Inc. P.O. Box 32 1015 Industrial Drive Spring Valley, MN 55975 USA...
