TELEMATICS KEYPAD
INSTALLATION
SJ12, SJ16
ANSI/CSA, CE, & AS
VERTICAL MAST LIFTS
235371AAA
March 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elevate SJ12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Skyjack Elevate SJ12

Summary of Contents for Skyjack Elevate SJ12

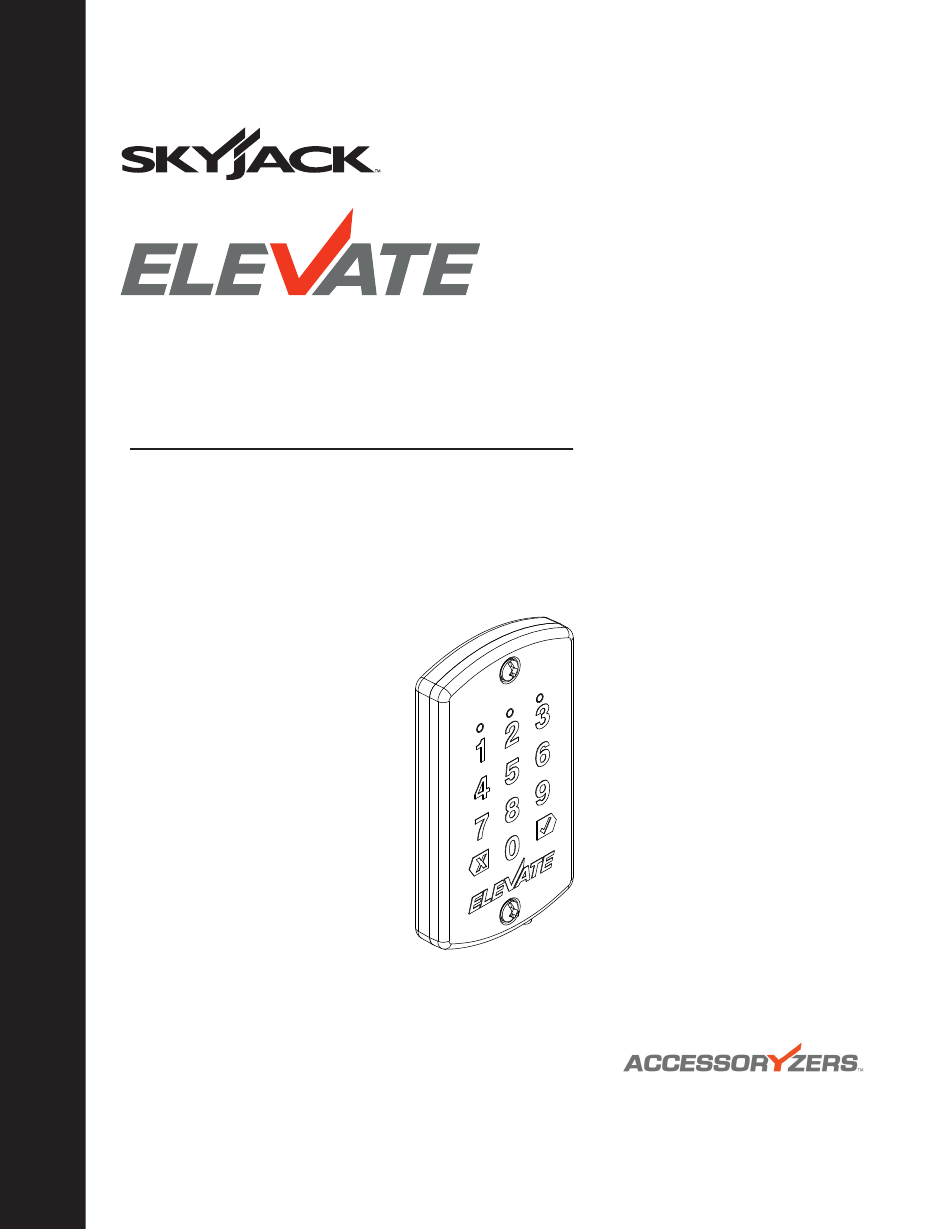

  • Page 1 TELEMATICS KEYPAD INSTALLATION SJ12, SJ16 ANSI/CSA, CE, & AS VERTICAL MAST LIFTS 235371AAA March 2020...
  • Page 2 This field kit applies to serial numbers: SJ12/16: A600 000 001 to A600 999 999 Please refer to the website (www.skyjack.com) for contact information, other Serial Numbers, the most recent Technical Manuals and USB software. Original instructions in English.
  • Page 3 THIS SAFETY ALERT SYMBOL MEANS ATTENTION! BE ALERT! YOUR SAFETY IS INVOLVED. The Safety Alert Symbol identifies important safety messages on MEWPs, safety signs in manuals or elsewhere. When you see this symbol, be alert to the possibility of personal injury or death. Follow the instructions in the safety message.
  • Page 4 Notes 235371AAA SJ12, SJ16...

  • Page 5: Table Of Contents

    Having equipment with features and functionality that allow you and your customers to do more is a vital part of the utilization equation. Skyjack offers a range of accessory products to further expand a given products adaptability and your power to offer a truly flexible rental choice.

  • Page 6: Section 1 - Kit Components

    Section 1 – Kit Components 235371AAA SJ12, SJ16...
  • Page 7 Section 1 – Kit Components Index Skyjack Qty. Description Part No. 235841 ELEVATE KEYPAD FIELD KIT 213099 • KEYPAD, Track Unit - dual ID 112248 • SCREW, Round head machine (#8-32 x 1") 103991 • WASHER, Flat (#8) 138765 •...

  • Page 8: Section 2 - Before You Start

    6. Turn the main power disconnect switch to the off IMPORTANT position. If you have not received the complete parts inventory, contact the Skyjack Service Department to have the missing parts sent to you. Do not attempt installation without the complete package. 235371AAA...

  • Page 9: Section 3 - Procedures

    Section 3 – Procedures 3.1 Install the keypad 3. Place the keypad label (173002) onto the 1. Use screws (112248 x 2), washers (103991 x machine above the serial plate. 2), and nuts (138765 x 2) to install the keypad 173002 (213099) onto the telematics bracket.

  • Page 10: Section 4 - Testing

    Section 4 – Testing 4.1 Preparation 1. Turn the main power disconnect switch to the on position. 2. Pull out the emergency stop button on the base control console. 3. Turn the off/platform/base key switch to the platform position to power up the MEWP . 4.
  • Page 12 www.skyjack.com...

This manual is also suitable for:

Elevate sj16
