PixLite E4-S Mk3 Quick Start Guide
1 - Physical Connections
The PixLite E4-S Mk3 requires a source of 5 – 24Vdc to be connected to the power input, which is
the small screw terminal marked "+" & "-". The screws should be loosened for wire insertion and
then tightened again, providing a highly robust and secure connection. Polarity for the connector is
clearly marked on the lid.

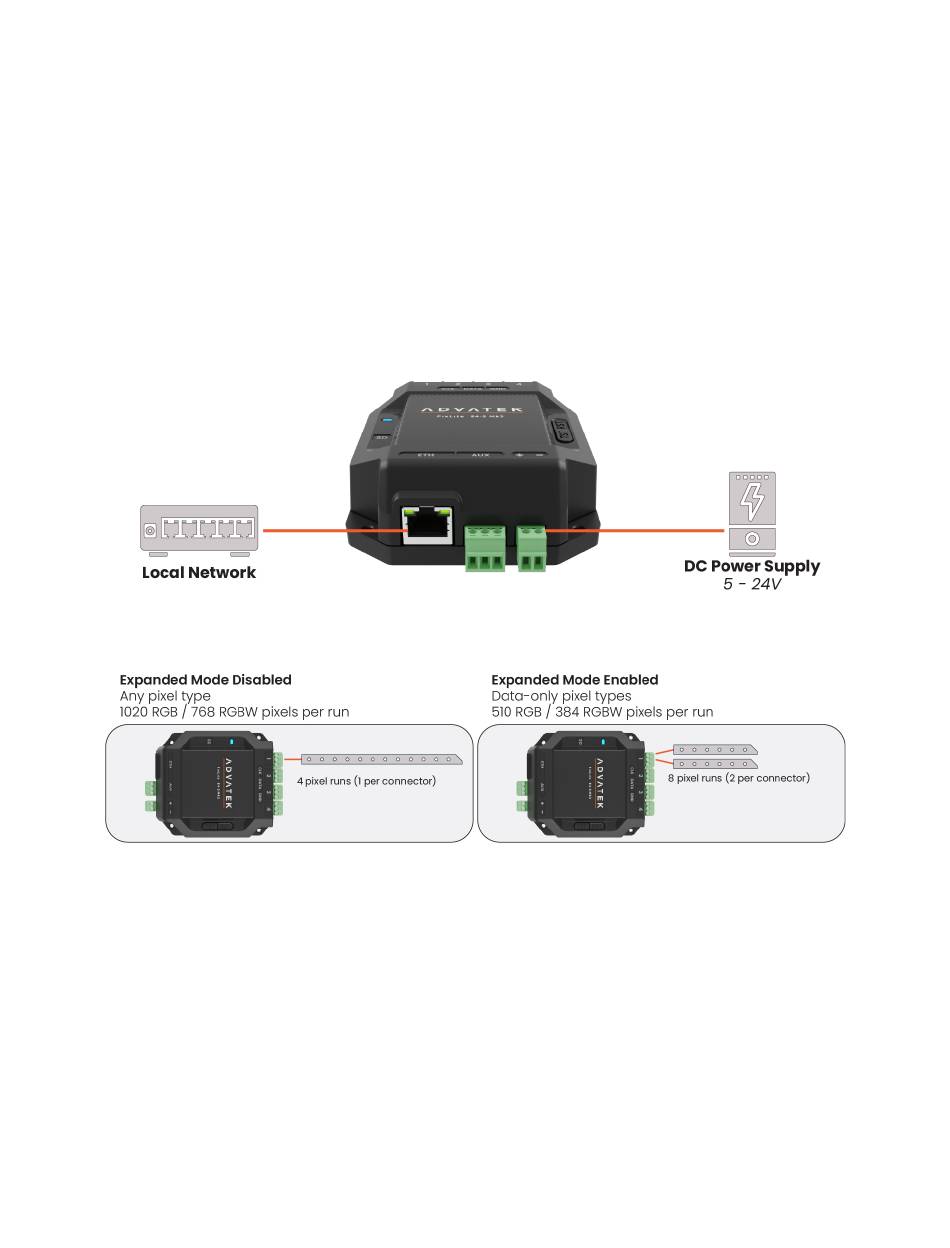

The pixel LEDs can be connected to the pixel outputs as shown below.
- 1-
www.advateklighting.com
PixLite E4-S Mk3 Quick Start Guide V20250606
