1 - Physical Connections

In order to connect to the PixLite A4-S Mk3, there must be a working power supply

between 5 – 24Vdc connected to the power input. Simply lift up each lever, insert the

power wires (with the correct polarity), and clamp the levers back down. An Ethernet

cable should also be connected to either of the Ethernet Ports, allowing connection to

a local network, or directly to a PC.

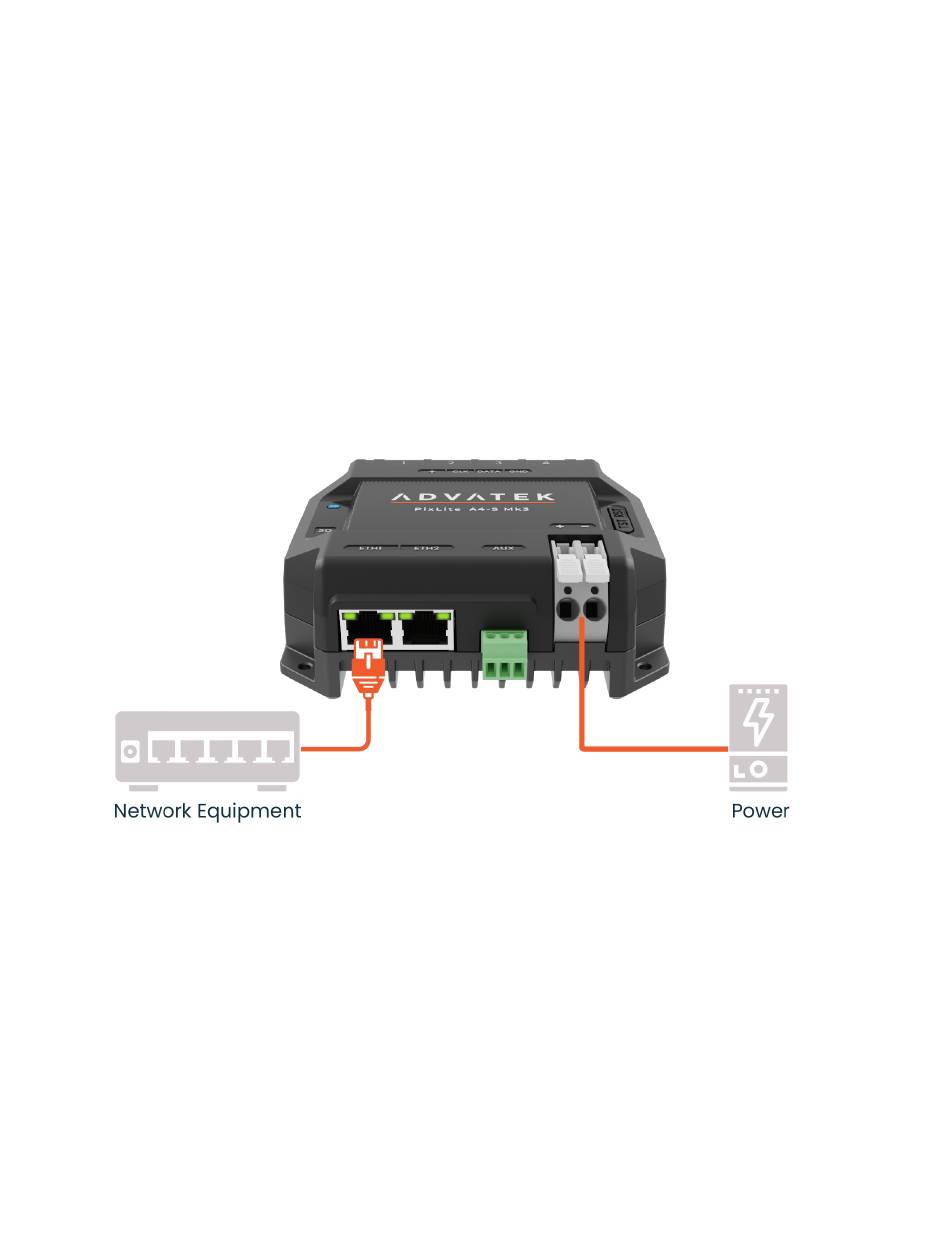

Figure 1: Connection Points

- 1 -

www.advateklighting.com

PixLite A4-S Mk3 Quick Start Guide V20230823

Table of Contents

Do you have a question about the PixLite A4-S Mk3 and is the answer not in the manual?

Page 1 PixLite A4-S Mk3 Quick Start Guide 1 - Physical Connections In order to connect to the PixLite A4-S Mk3, there must be a working power supply between 5 – 24Vdc connected to the power input. Simply lift up each lever, insert the power wires (with the correct polarity), and clamp the levers back down.
Page 2 Advatek Assistant 3. 2.2 - Advatek Assistant 3 The easiest method for connecting to the PixLite A4-S Mk3 is by launching Advatek Assistant 3 to discover the device. Advatek Assistant 3 can be downloaded and installed, using the URL below: www.advateklighting.com/advatek-assistant-3...
Page 3 3 - Further Information For a more in- depth understanding of the device, including physical installation, electrical connections, network connections, operation, and specifications, you should consult the PixLite A4-S Mk3 User Manual: www.advateklighting.com/downloads/user-manuals/pixlite-a4-s-mk3 4 - Advatek SHOWTime Advatek SHOWTime ™ unleashes the potential of Advatek PixLite® Mk3 devices to independently drive light shows without a computer or any source of live data.
