PixLite E4-S Mk3 Quick Start Guide

1 - Physical Connections

In order to connect to the PixLite E4-S Mk3, there must be a working power supply
between 5 – 24Vdc connected to the power input, which is the small screw terminal
marked "+" & "-". The screws should be loosened for wire insertion and then tightened
again, providing a highly robust and secure connection. Polarity for the connector is
clearly marked on the lid.

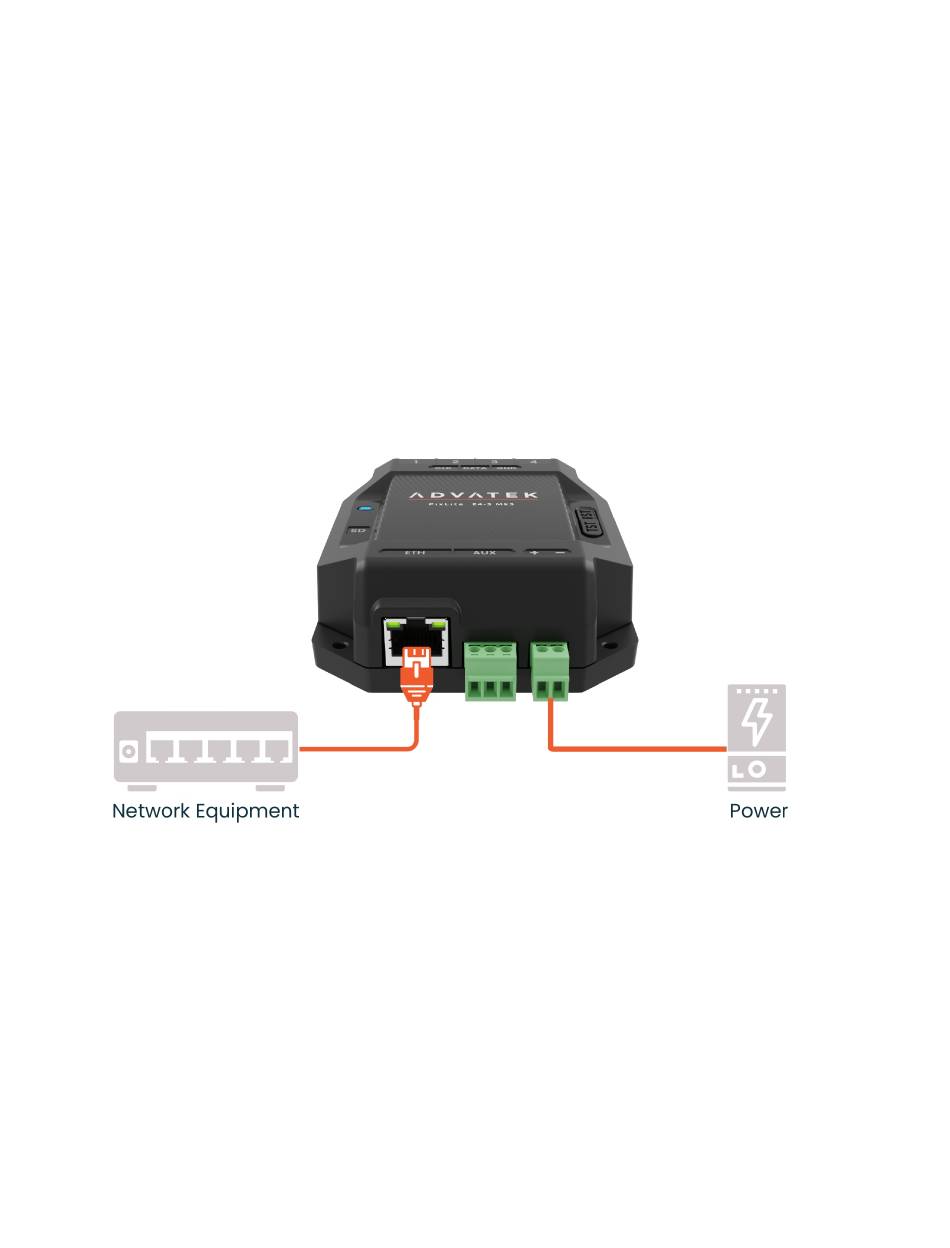

Figure 1: Connection Points
- 1 -
www.advateklighting.com
PixLite E4-S Mk3 Quick Start Guide V20230823
