ADVATEK LIGHTING PixLite E16-S Mk3 Quick Start Manual

Hide thumbs Also See for PixLite E16-S Mk3:

PixLite E16-S Mk3 Quick Start Guide

1 - Physical Connections

In order to connect to the PixLite E16-S Mk3, there must be a working power supply

between 5 – 24Vdc connected to the power input, which is the small screw terminal

marked "+" & "-". The screws should be loosened for wire insertion and then tightened

again, providing a highly robust and secure connection. Polarity for the connector is

clearly marked on the lid.

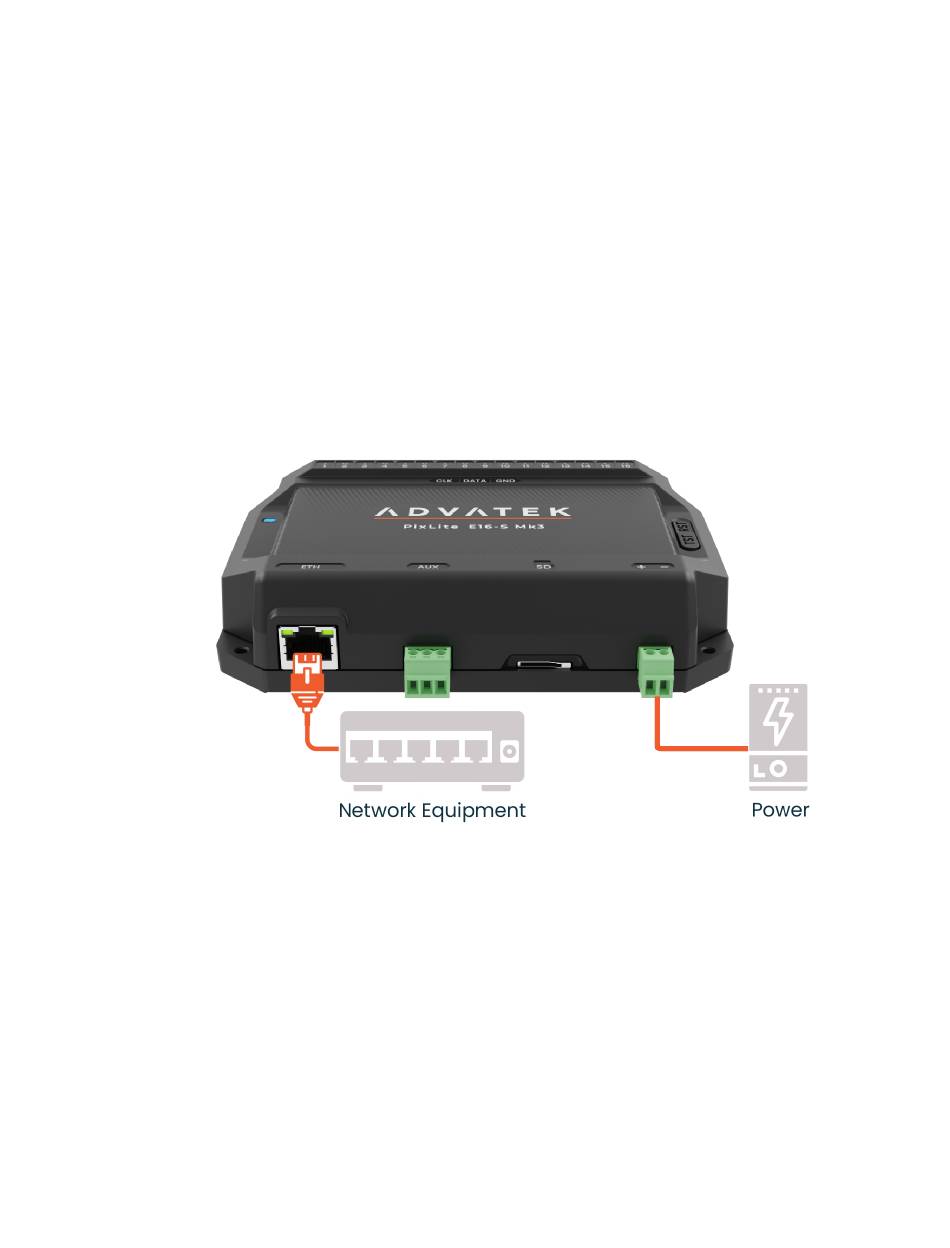

Figure 1: Connection Points

- 1 -

www.advateklighting.com

PixLite E16-S Mk3 Quick Start Guide V20230823

Table of Contents

Do you have a question about the PixLite E16-S Mk3 and is the answer not in the manual?

Page 1 PixLite E16-S Mk3 Quick Start Guide 1 - Physical Connections In order to connect to the PixLite E16-S Mk3, there must be a working power supply between 5 – 24Vdc connected to the power input, which is the small screw terminal marked “+”...
Page 2 Advatek Assistant 3. 2.2 - Advatek Assistant 3 The easiest method for connecting to the PixLite E16-S Mk3 is by launching Advatek Assistant 3 to discover the device. Advatek Assistant 3 can be downloaded and installed, using the URL below: www.advateklighting.com/advatek-assistant-3...
Page 3 3 - Further Information For a more in- depth understanding of the device, including physical installation, electrical connections, network connections, operation, and specifications, you should consult the PixLite E16-S Mk3 User Manual: www.advateklighting.com/downloads/user-manuals/pixlite-e16-s-mk3 4 - Advatek SHOWTime Advatek SHOWTime ™ unleashes the potential of Advatek PixLite® Mk3 devices to independently drive light shows without a computer or any source of live data.
