ADVATEK LIGHTING PixLite E4-S Mk3 Installation Manual

PixLite E4-S Mk3 Installation Guide
Safety Notes
This LED pixel controller should be installed by someone with proper technical knowledge
only. Installation of the device should not be attempted without such knowledge.
The output connectors shall be used for pixel output connection only.
Completely disconnect the supply source during abnormal operation and before making any
other connections to the device.
Specification and certification markings are located on the bottom of the device.
Supplying Power
Power is applied to the PixLite E4-S Mk3 via the small screw terminal marked "+" & "-". The
screws should be loosened for wire insertion and then tightened again, providing a highly
robust and secure connection. Polarity for the connector is clearly marked on the lid, as
shown in Figure 1 below.
2
The type of wire required for supply connection is 1.0mm

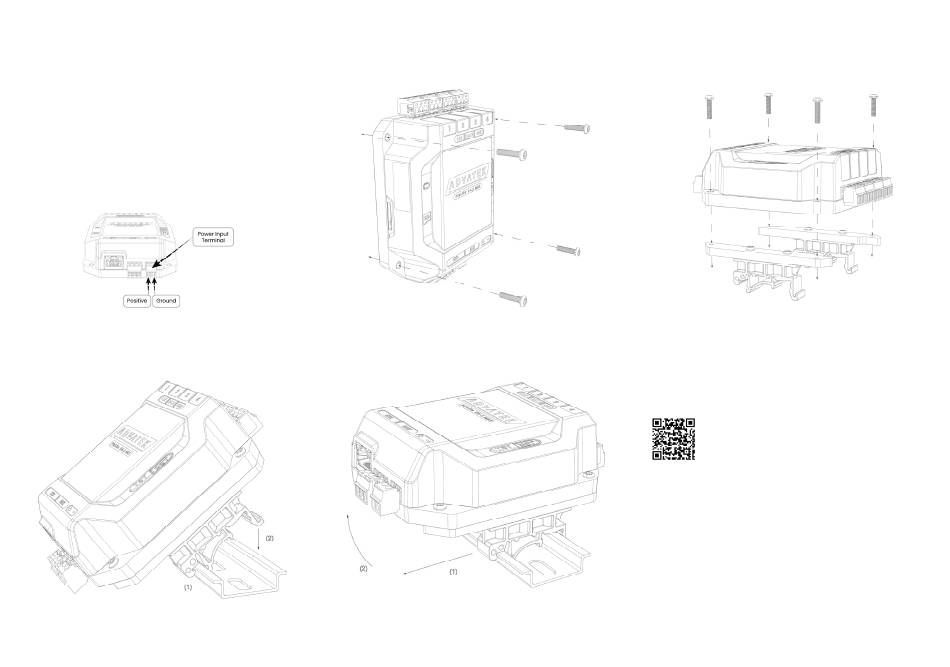

Figure 1 : Location of Power Input
- 1 -
2. Align the lower edge of the bracket with the lower edge of the DIN rail (1), and push the
controller down so it clicks onto the DIN rail (2), as shown in Figure 4 below.
Figure 4: Controller Assembled to DIN Rail
- 4 -
Physical Installation
Wall Mount
Assemble the unit onto the wall / ceiling using four screws of a type suitable for the
mounting surface (not supplied). The screws should be a pan head type, 3mm in thread
diameter and at least 15mm long, as shown in Figure 2 below.
, 16AWG, VW-1.
3. To remove the controller from the DIN rail, pull the controller horizontally, toward its power
connector (1) and rotate the controller up and off the rail (2), as shown in Figure 5 below.
Figure 2: Controller Assembled to Wall
- 2 -
Figure 5: Removal of Controller from DIN Rail
- 5 -
DIN Rail Mount
The controller can be mounted to a DIN rail using the optional mounting kit (part number
MNT0101).
1. Align the controller's mounting holes with the outermost mounting holes on each bracket.
Using the four supplied M3, 12mm long screws, assemble the controller to the mounting
brackets, as shown in Figure 3 below.
Figure 3: Controller Assembled to Bracket
- 3 -
Further Information
For more detailed instructions about how to use this product, consult the relevant
documentation available at:
https://www.advateklights.com/downloads
Or scan the QR code below.
