ICP DAS USA GTM-201-3GWA Quick Start Manual

Industrial tri-band 3g modem
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Package Checklist
The package includes the following items:
 One GTM-201-3GWA hardware module
 One Quick Start (this manual)
 One companion CD
 One USB Type A to Type B connector cable (CA-USB18)
 One 3G/GSM antenna (ANT-421-02)
 One GPS antenna (ANT-115-03) (only for GTM-201P-3GWA)
Related Documents and Software Utilities
Documents
 User manual: GTM-201-3GWA_User_Manual
 Quick start: GTM-201-3GWA_QuickStart
 CD: \napdos\3G_Modem\GTM-201-3GWA\Manual
 http://ftp.icpdas.com/pub/cd/usbcd/napdos/3G_modem/
GTM-201-3GWA/manual/

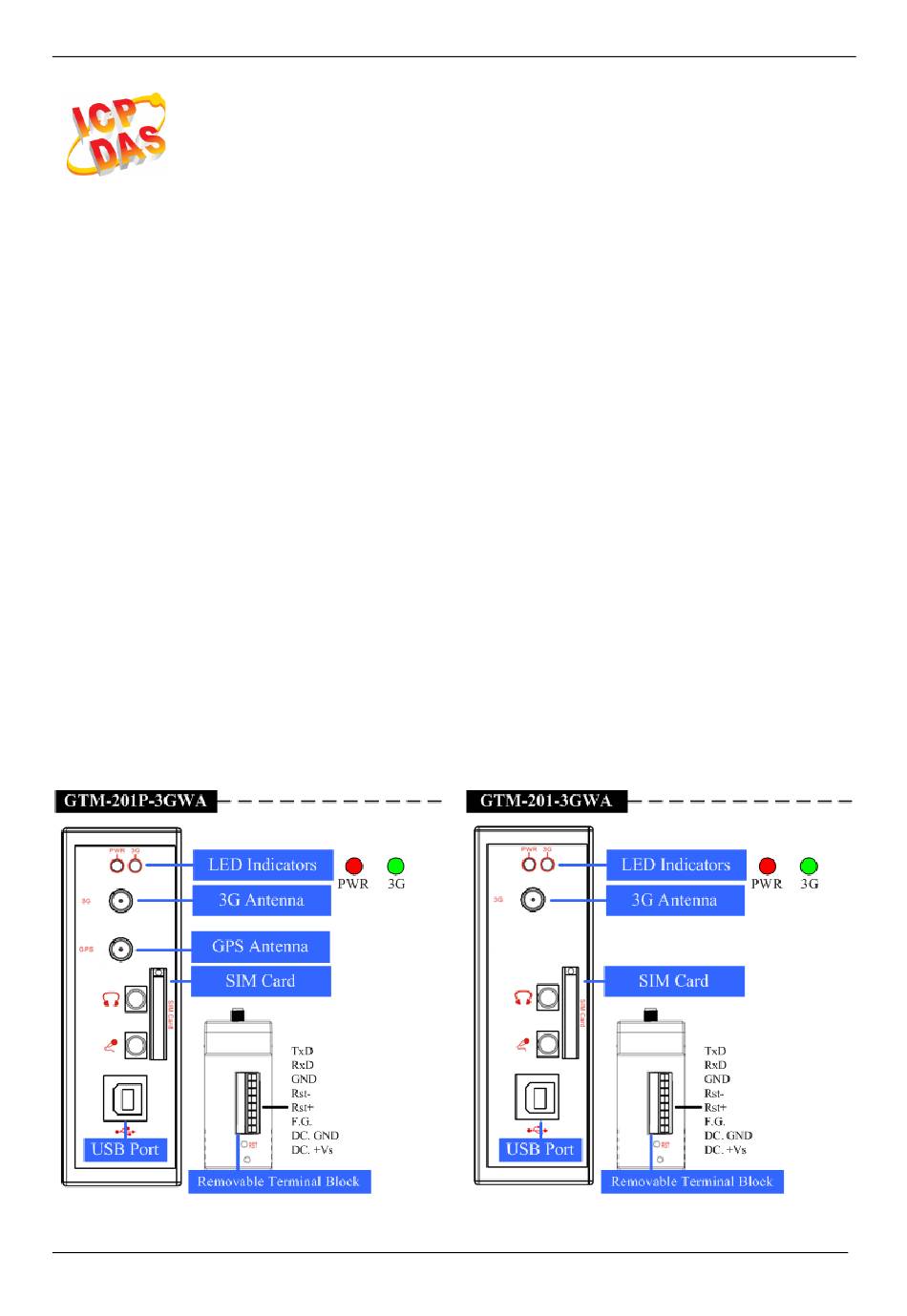

 View of the GTM-201-3GWA Panel
www.ipc2u.ru
Industrial Tri-band 3G Modem
GTM-201-3GWA
Quick Start
www.icp-das.ru
GTM-201-3GWA Quick Start
1
www.ipc2u.de
