ICP DAS USA GTM-201-USB Quick Start Manual

Hide thumbs Also See for GTM-201-USB:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Industrial Quad-band GPRS/GSM Modem
Package Checklist
The package includes the following items:
One GTM-201-USB hardware module
One Quick Start Manual (this manual)
One companion CD
One USB Type A to Type B connector cable (CA-USB18)
One GPRS antenna
Related Documents and Software Utilities
Documents
User manual: GTM-201_User_Manual
Quick Start Manual: GTM-201-USB_QuickStart_Manual
CD: \napdos\GPRS_GSM_Modem\GTM-201_Modem\Manual
http://ftp.icpdas.com/pub/cd/usbcd/napdos/gprs_gsm_modem/
gtm-201_modem/manual/

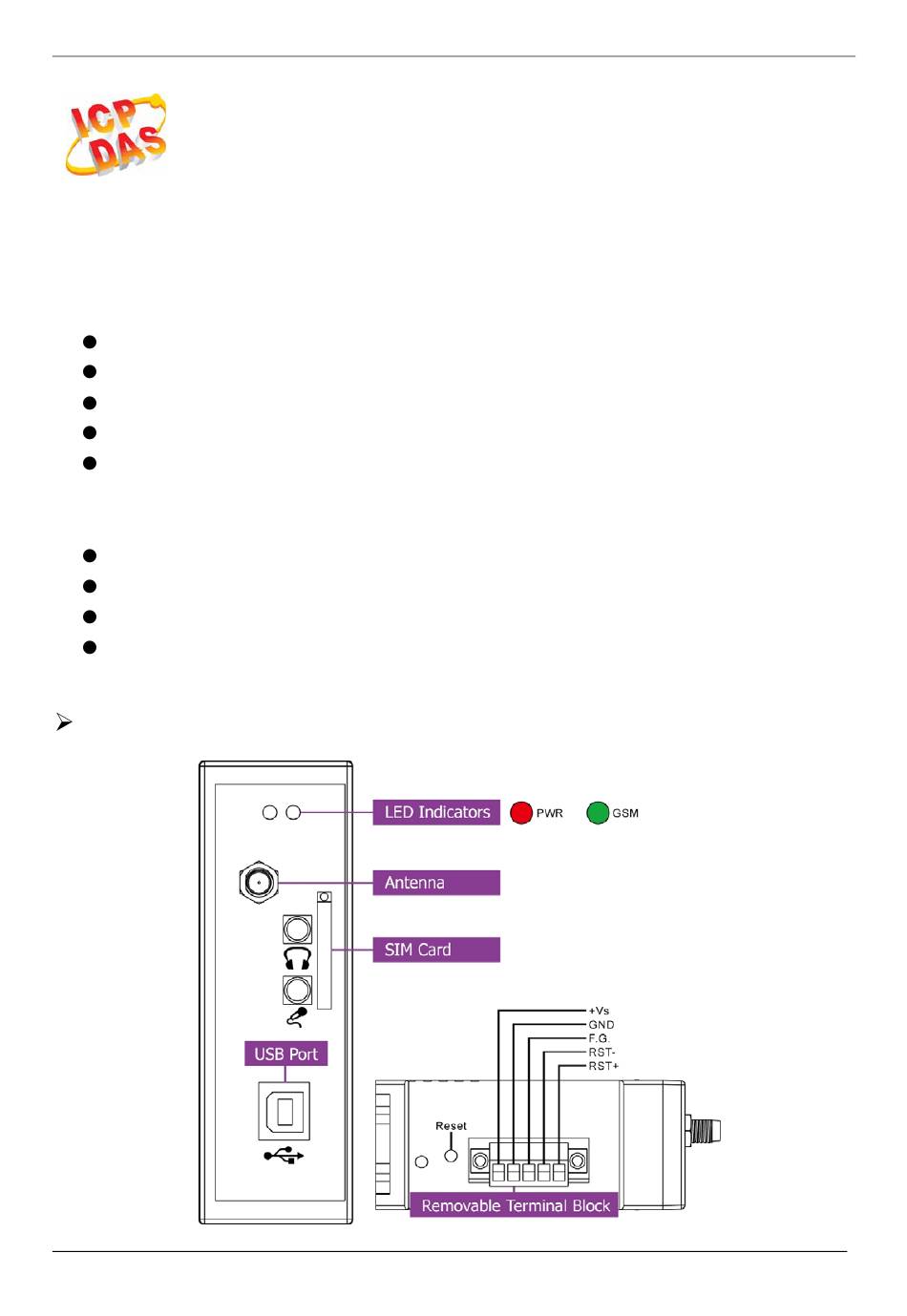

View of the GTM-201-USB Panel
www.ipc2u.ru
GTM-201-USB
Quick Start Manual
www.icp-das.ru
GTM-201-USB Quick Start
1
www.ipc2u.de
GTM-201-USB Ver 1.00
www.ipc2u.com
