1

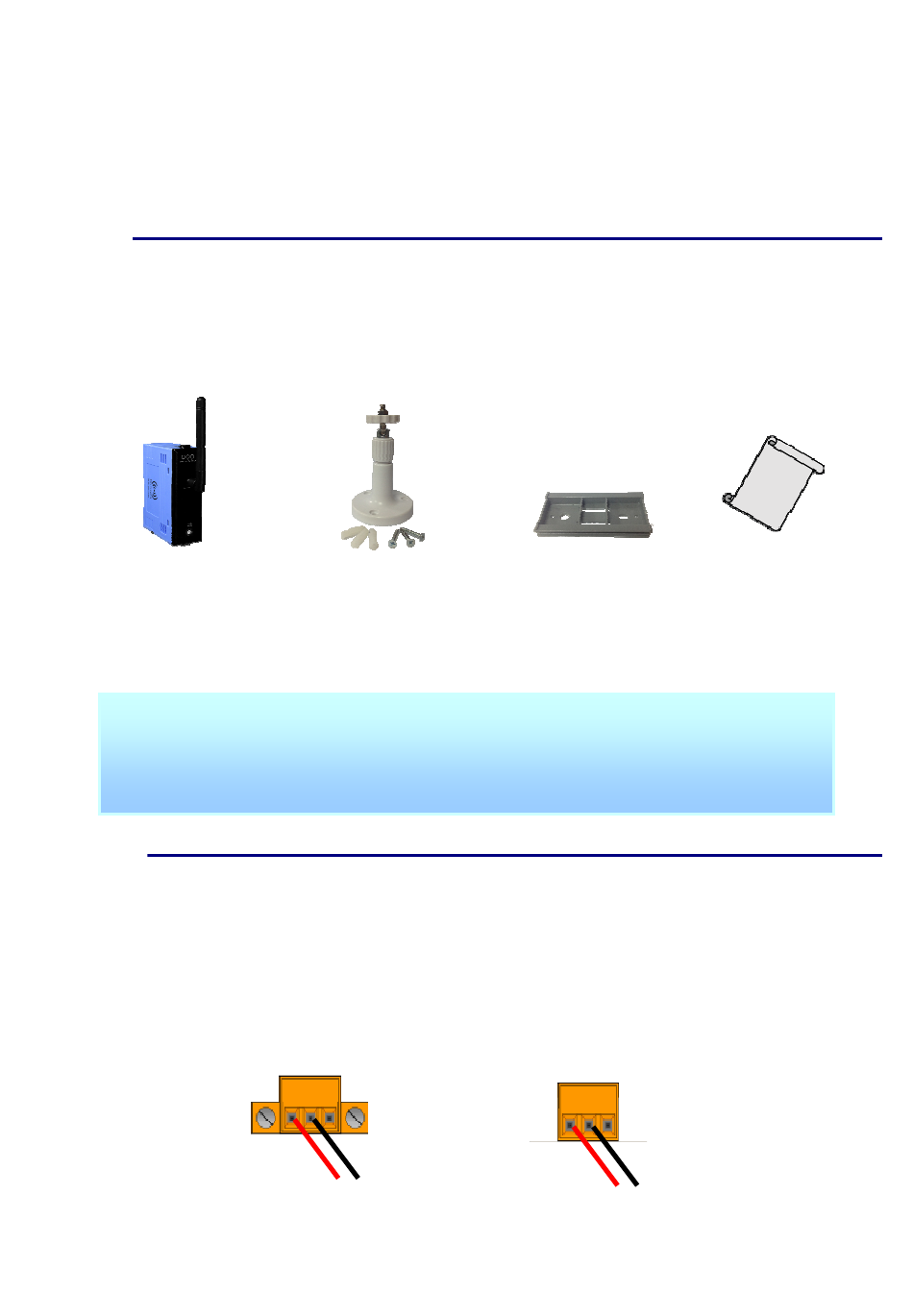

What's in the Shipping Package?
The shipping package contains the following items:
WLS-R01 module
+
0 dBi antenna
(ANT-104-01)
If any of these items are missing or damaged, please contact your local
distributor for more information. Save the shipping materials and cartons in
case you need to ship the module in the future.
2
Preparing the Device
1. Refer the chapter 3. to configure the DIP switch and rotary switch of
WLS-R01 module.
2. Power Supply：+10 ~ +30V D C
Copyright © 2016 by ICP DAS Co., Ltd. All Rights Reserved.
WLS-R01
Plastic stent group
(4SI11G0000009)
+Vs
GND
Page 1
Quick Start
Plastic rail
(4PAPP-006-G)
+Vs
GND
Version 1.0.0
Quick Start
Advertisement
Table of Contents
Related Manuals for ICP DAS USA WLS-R01
Summary of Contents for ICP DAS USA WLS-R01
- Page 1 Version 1.0.0 WLS-R01 Quick Start What’s in the Shipping Package? The shipping package contains the following items: WLS-R01 module Plastic stent group Plastic rail Quick Start (4SI11G0000009) (4PAPP-006-G) 0 dBi antenna (ANT-104-01) If any of these items are missing or damaged, please contact your local distributor for more information.
- Page 2 RF Channel 400M RF Channel 400M Node ID Group ID Rotation switch description： 1. 400M RF channel，the ranges are 0x00 to 0x0F. WLS-R01 can communicate with RFU-400 in same 400M RF channel. 0: 429.8125 1: 429.8250 2: 429.8375 3: 429.8500 Channel 4: 429.8625...
- Page 3 The ranges are 0x01 to 0xFF. ----- 0x02 If 400M Node ID is set to 0x00, ----- the LED of RF_Tx will steady lit 0x04 ----- to caution, and WLS-R01 400M 0x08 doesn’t transmit wireless Node ID ----- packages of location, the user 0x10...
- Page 4 Version 1.0.0 There are 3 LEDs in the WLS-R01, and they are PWR, RF_Tx and RF_Rx. The description of 3 LEDs as below: 1. PWR：Power LED, red, it will steady lit after power-on. If the LED don’t steady lit, it means the power have problem.
- Page 5 Startup to use Wireless Location System (WLS) includes the modules that RFU-400, WLS-T01, WLS-R01 and WLS software. The user need to check the wireless setting of each module as below. If the user need more detail about parameters of wireless setting, please refer to the user manual of each module.
- Page 6 The default value about RF channel is 4, RF power is F, Node ID is the last two bytes of build-in IEEE address. If the user adjust WLS-R01 2.4GHz RF channel to 4, the WLS-R01 will can receive the wireless package.
