1. Checking the Parts in the Kit
Confirm that all parts listed below are included in the kit. If any part is shorted or any abnormality is found in the
appearance of the parts, contact our sales representative where you bought the instrument.
List of parts included in the kit.
Right side bracket (1 pc), Left side bracket (1 pc), Upper bracket (1 pc), binding head screws (M5, 12 mm long,
6 pcs), binding head screws (M3, 5 mm long, 2 pcs), sealing labels (8 pcs)
2. Removing the Parts from the Instrument (per each set)
Removing the Handle (applies only to models with handles)
Note : There is a chance that the handle cannot be reattached once it has been removed from the instrument.

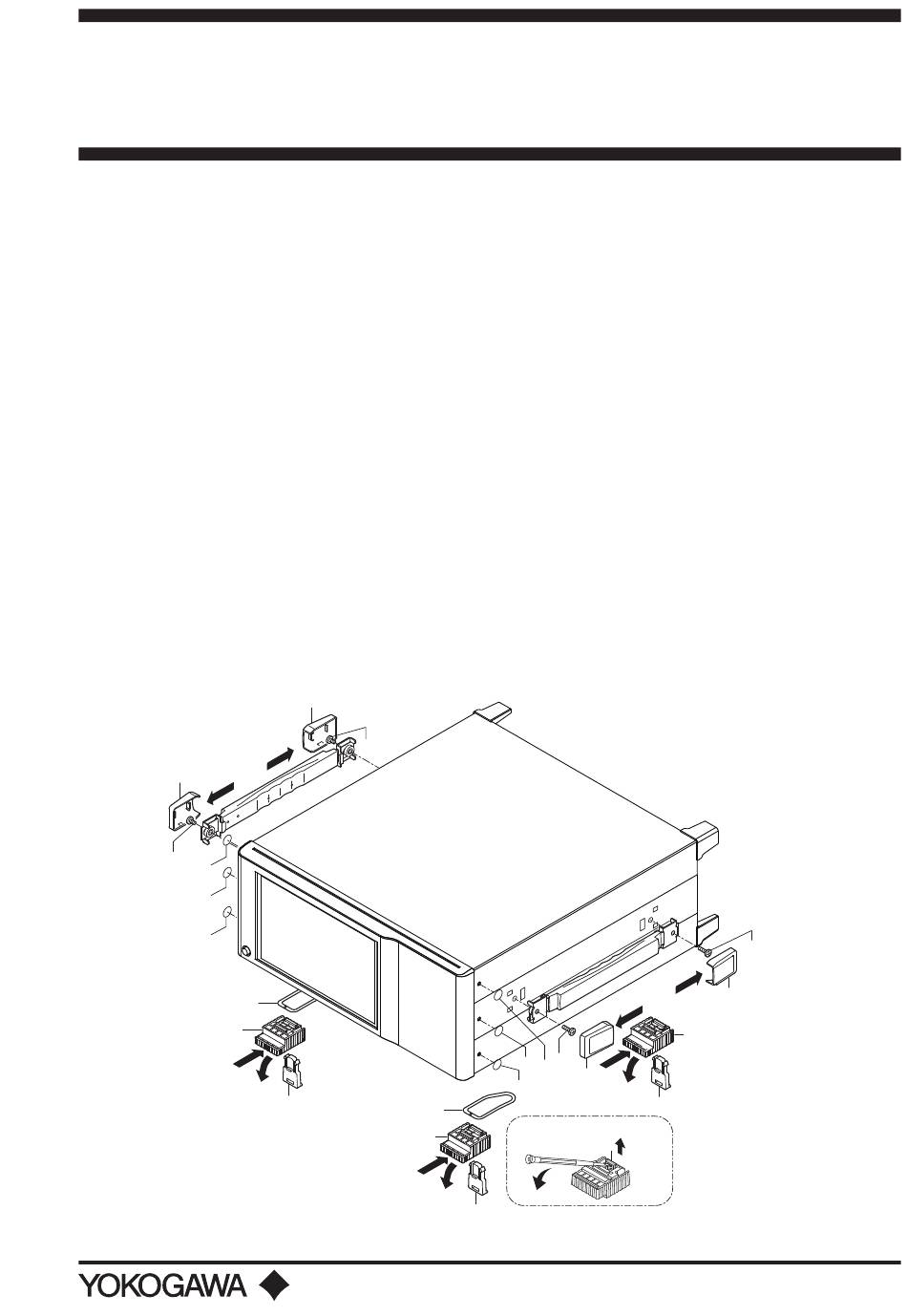

1.
Remove the four covers (a) from the handle by firmly inserting a screwdriver in the direction of the four
arrows marked A. If the covers stick to the handle, use another tool to widen the opening of each cover
horizontally and then retry taking off the cover.
2.
To remove the handle, unscrew the four screws (b) which fix the handle to the instrument.
Removing the Feet on the Bottom
1. When a black pin (i) is included in each foot (c), pry out the four pins with a thin screwdriver as shown in the figure below.
2.
Press each foot (c) in the direction of arrow B, that is, toward the rear of the instrument, to slide off the four feet (c).
3. Press each foot (c) in the direction of arrow C, that is, downward, to remove the four feet (c).
After the front feet (c) are removed, the support hardware (d) is also detached.
Removing the Sealing Labels
1.
Remove the six sealing labels (e).
a
A
b
e
e
e
c
B
The figure is an example of WT5000.
