YOKOGAWA 751539-E2 User Manual

Rack mounting kit for dm7560

User's

Manual

Contents of the Package

Check that the following components are included in the package. If items are missing or if there is a

problem with the appearance of the items, contact your nearest YOKOGAWA dealer.

Side bracket(S: 1pc, L: 1pc)

• When you remove the handle, be careful not to get your fingers caught between the handle

and the instrument. We recommend that you use a pair of gloves.

• To use the measuring instrument without attaching the rack mount kit, be sure to put the

protectors and handle back on.

Otherwise, foreign objects and the like may enter the inside of the measuring instrument

through the holes for attaching the rack mount kit and may cause electric shock or

malfunction.

Remove the protectors from the front and back of the DM7560.

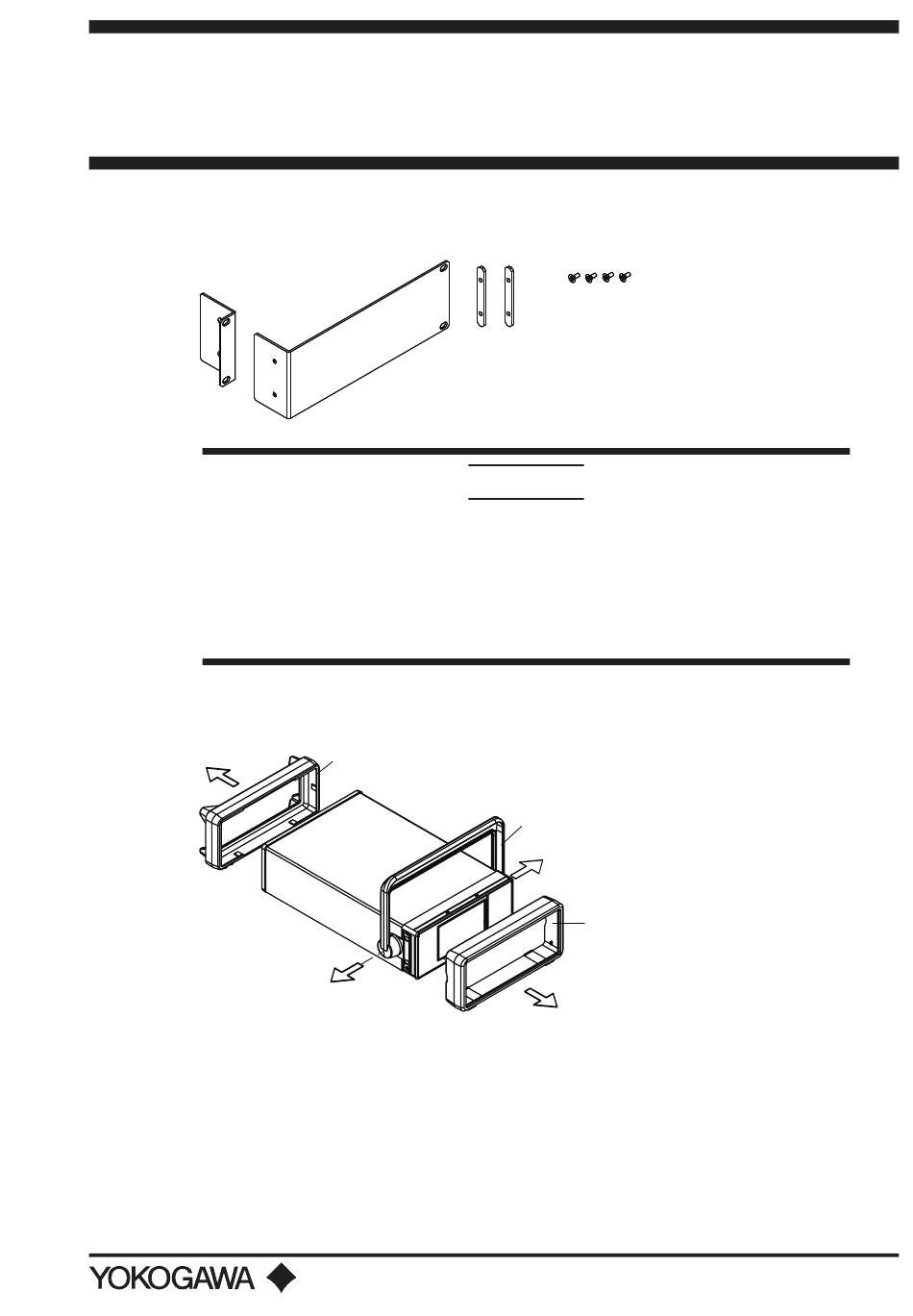

Remove the handle. Move the handle to the position shown in the following figure, and pull the

attachment areas of the handle outward to remove the handle.

Model 751539-E2

Rack Mounting Kit for DM7560

(Single-housing Rack, Inch)

Protector

1st Edition : September 2016 (YMI)

Printed in Japan

Spacer(2pcs)

Screw(M4x10 4pcs)

CAUTION

Handle

Protector

IM 751539-E2-01EN (1/2)

1st Edition

Table of Contents

Do you have a question about the 751539-E2 and is the answer not in the manual?

Page 1 (Single-housing Rack, Inch) Contents of the Package Check that the following components are included in the package. If items are missing or if there is a problem with the appearance of the items, contact your nearest YOKOGAWA dealer. Spacer(2pcs) Screw(M4x10 4pcs)
Page 2 When using a rack manufacturer’s support bracket, attach it to the small bracket side. Mounting to a Rack Mount the measuring instruments according to the following dimensions. Note: Make sure to provide adequate support from the bottom of the instruments. Unit: mm ±0.4 482.4 465.7 Mounting surface IM 751539-E2-01EN (2/2)
