YOKOGAWA 701969-E User Manual

User's
Manual

1. Checking the Parts in the Kit

Confirm that all parts listed below are included in the kit. If some of the contents are missing or if there is
physical damage, please contact your nearest YOKOGAWA dealer.
List of parts included in the kit.
• Rack frames (2pcs)
• Upper bracket (1pcs)
• M4 binding screws (length: 12 mm) (8pcs)

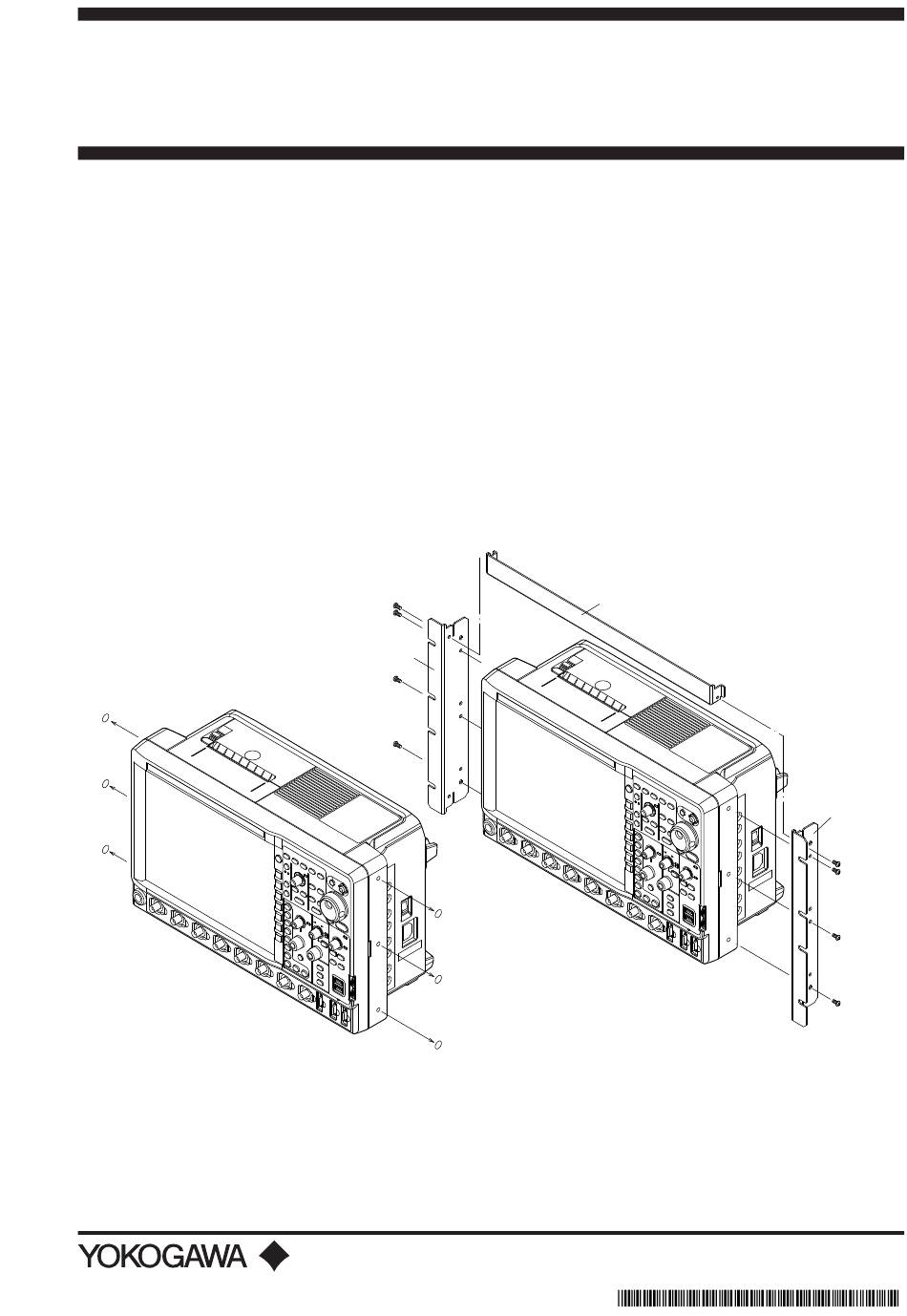

2. Joining the Instruments with Mounting Hardware

1.
Remove sealing label (a) from the left and right sides of the instrument (6 labels).
2.
Attach the rack frames (A) to the left and right sides of the instrument with three screws (B) on each rack
frame.
Reference torque value: 1.3 to 1.4 N∙m
3.
Attach the upper bracket (C) to the upper of the instrument with two screws (D).
Reference torque value: 1.3 to 1.4 N∙m
(a)
(a)
(a)
Model 701969-E
Rack Mounting Kit (EIA compliant)
D
B
A
B
B
(a)
(a)
(a)
3rd Edition : September 2020 (YMI)
All Rights Reserved, Copyright © 2013 Yokogawa Test & Measurement Corporation
C
IM 701969-02EN 1/2
*IM 701969-02EN/3*
A
D
B
B
B
3rd Edition
