Rack mounting kit for an eia-compliant single-housing rack

Advertisement

User's
Manual

1. Checking the Parts in the Kit

Confirm that all parts listed below are included in the kit. If any part is shorted or any abnormality is found in the
appearance of the parts, contact our sales representative where you bought the instrument.
List of parts included in the kit.
left side bracket (1 pc), right side bracket (1 pc), flat-head screws (M5, 14 mm long) (3 pcs), binding-head
screw (M5, 14 mm long) (3 pcs), sealing labels (6 pcs)

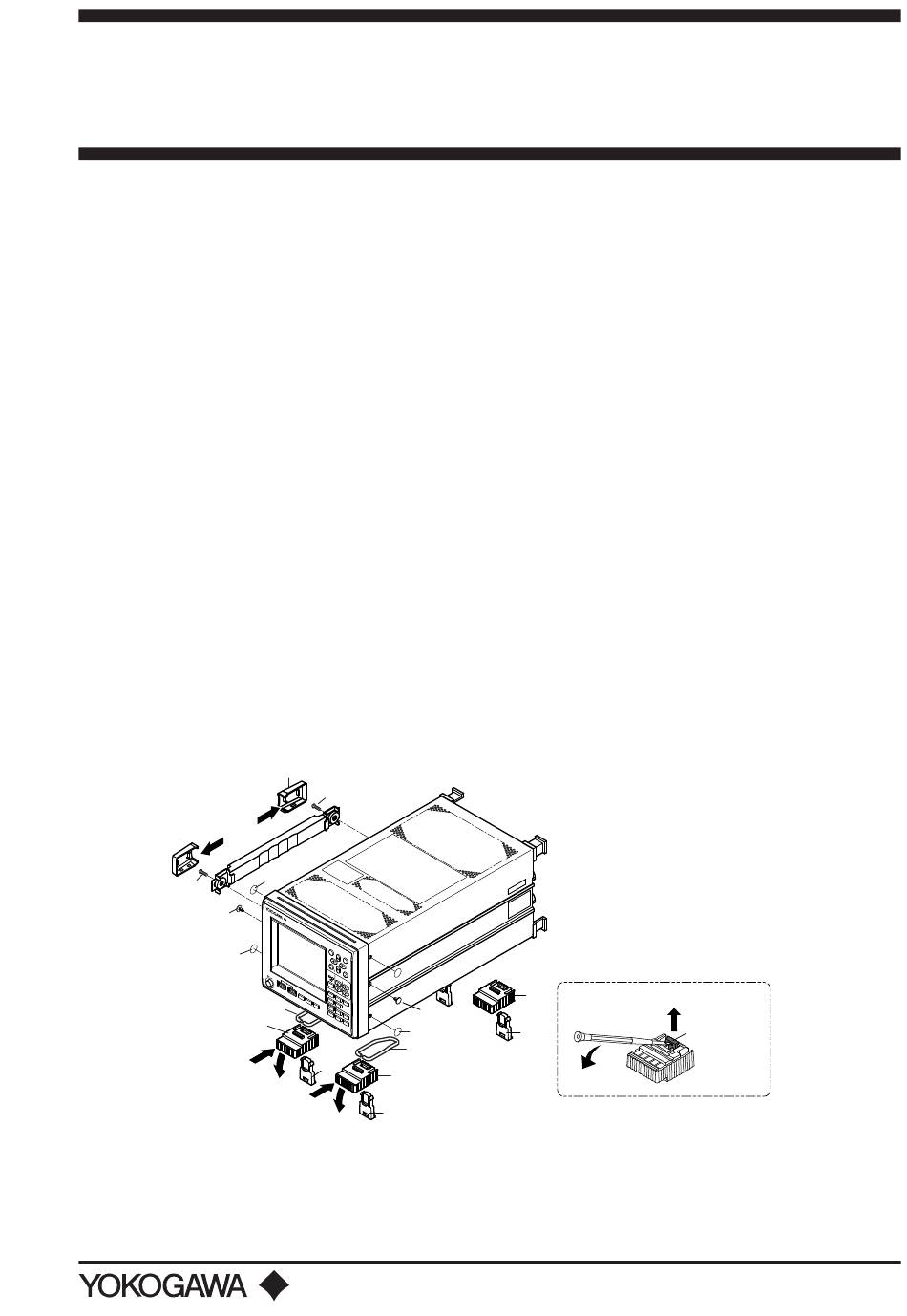

2. Joining the Instruments with Mounting Hardware

Removing the Handle
Note: There is a chance that the handle cannot be reattached once it has been removed from the
instrument.
1.
Remove the two covers (a) from the handle by firmly inserting a screwdriver in the direction of the two
arrows marked (A). If the covers stick to the handle, use another tool to widen the opening of each cover
horizontally and then retry taking off the cover.
2.
To remove the handle, unscrew the two screws (b) which fix the handle to the instrument.
Removing the Feet on the Bottom
1.
When a black pin (g) is included in each foot (c), pry out the four pins with a thin screwdriver as shown in
the figure below.
2.
Press each foot (c) in the direction of arrow (B), that is, toward the rear of the instrument, to slide off the
four feet (c).
3.
Press each foot (c) in the direction of arrow (C), that is, downward, to remove the four feet (c).
After the front feet (c) are removed, the support hardware (d) is also detached.
Removing the Sealing Labels
1.
Remove the four sealing labels (e).
2.
Unplug the two blind plugs (f).
A
a
b
f
e
B
Model 751533-E4
RACK MOUNTING KIT
For an EIA-compliant Single-housing Rack
a
b
A
e
ES C
RE
SE T
SE T
CA
L
PA GE
P O
EL EM
PA GE
W E
EN
R
1
T
R A
2
VO
LT AG
N G
3
E
E
CU
RR
ELE
EN
ME NT
T
AL L
D IS
AU
TO
NU ME
P L
RIC
A Y
AU
FIL
E
TO
WA VE
d
FO RM
IM AG
E
CU
RS
OT HE
ME
NU
OR
RS
ST OR
ITE M
ST OR
E
SE TU
E SE
P
INT EG
T
INP UT
RA TO
INF O
R
ST AR
ST OP
T/
LO CA
L
RE SE
KE Y
T
c
HO LD
LO CK
MIS
SIN
e
C
GL E
NU
LL
SH IFT
d
g
c
C
B
g
C
1st Edition : June 2008 (YK)
All Rights Reserved, Copyright © 2008 Yokogawa Electric Corporation
c
pry out a black pin each foot (c)
f
g
g
IM 751533-E4-01E 1/2
