User's
Manual

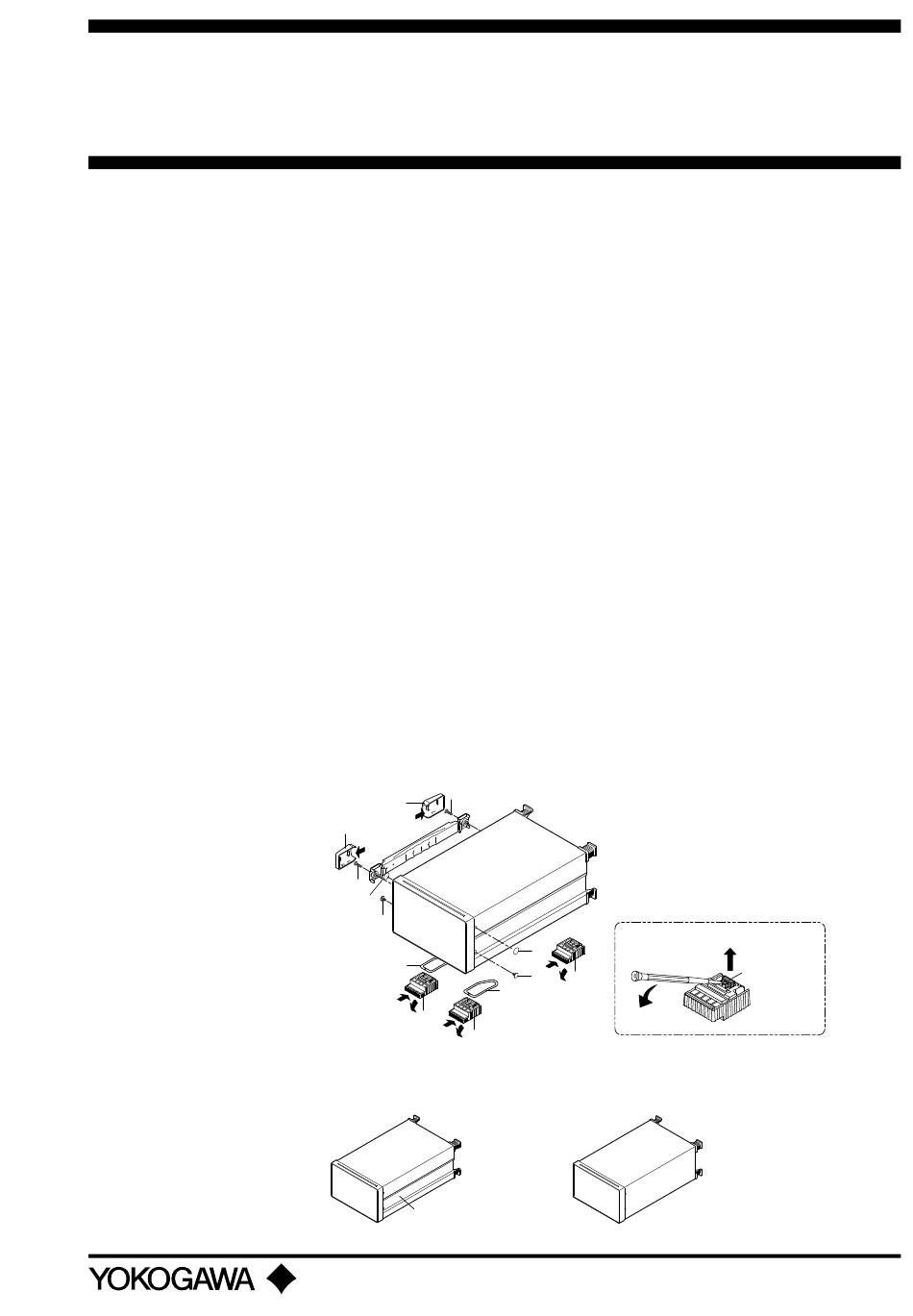

1.
Checking the Parts in the Kit
2.
Removing the Parts from the Instrument
Removing the Handle
Removing the Feet on the Bottom
Removing the Sealing Labels
3.
Compatible Cases
Model 751533-J3
RACK MOUNTING KIT
For a JIS-compliant Single-housing Rack
Confirm that all parts listed below are included in the kit. If any part is shorted or any
abnormality is found in the appearance of the parts, contact our sales representative
where you bought the instrument.
List of parts included in the kit :
Right side bracket (1 pc), left side bracket (1 pc), side bracket spacers (for Case A; 2pcs),
upper bracket (1 pc), flat-head screws (M5, 14 mm long) (2 pcs), binding-head screws(M5,
14 mm long) (2 pcs), binding-head screw (M3, 8 mm long) (3 pcs), sealing labels (6 pcs)
Note: T here is a chance that the handle cannot be reattached once it has
been removed from the instrument.
1.
Remove the two covers (a) from the handle by firmly inserting a screwdriver in the
direction of the two arrows marked (A).
If the covers stick to the handle, use another tool to widen the opening of each
cover horizontally and then retry taking off the cover.
2.
To remove the handle, unscrew the two screws (b) which fix the handle to the
instrument.
1.
When a black pin (i) is included in each foot (c), pry out the four pins with a thin
screwdriver as shown in the figure below.
2.
Press each foot (c) in the direction of arrow B, that is, toward the rear of the
instrument, to slide off the four feet (c).
3.
Press each foot (c) in the direction of arrow C, that is, downward, to remove the
four feet (c).
After the front feet (c) are removed, the support hardware (d) is also detached.
1.
Remove the two sealing labels (e).
2.
Unplug the two blind plugs (f).
a
A
a
A
b
e
f
d
B
C
c
B
The mounting hardware can be attached to the following two types of cases. To attach
mounting hardware to case A, use the accompanying spacers.
Case A
Recessed area
4th Edition : March 2013 (YMI)
All Rights Reserved, Copyright © 1995 Yokogawa Electric Corporation
All Rights Reserved, Copyright © 2010 Yokogawa Meters & Instruments Corporation
b
e
B
c
f
C
d
c
C
Case B
pry out the black pin from each
foot (c)
i
IM 751533-J3-11E (1/2)
4th Edition
