YOKOGAWA 751541-J4 User Manual

User's
Manual

1. Contents of the Package

Confirm that the parts listed below are included in the kit. If any parts are missing or appear to be abnormal,
contact your nearest sales representative.
Rack frames (left and right) (2 pcs), brackets (2 pcs), screws for rack frames (M5, 10 mm long) (4 pcs), screws
for brackets (M3, 5 mm long) (4 pcs)

2. Attaching the Rack Mounting Hardware

1.
Remove sealing labels (a) from the left and right sides of the measuring instrument (4 labels).
2. Attach the rack frames (b) to the left and right sides of the measuring instrument with two rack frame
attachment screws (M5, 10 mm long) (c) on each rack frame.
Reference tightening torque value: 2.8 to 2.9 N-m
Use the second and fourth holes from the top to attach the rack frames.
3.
Attach the brackets (d) to the top and bottom of the measuring instrument with two bracket attachment
screws (M3, 5 mm long) (e) on each bracket.
Reference tightening torque value: 0.6 to 0.7 N-m

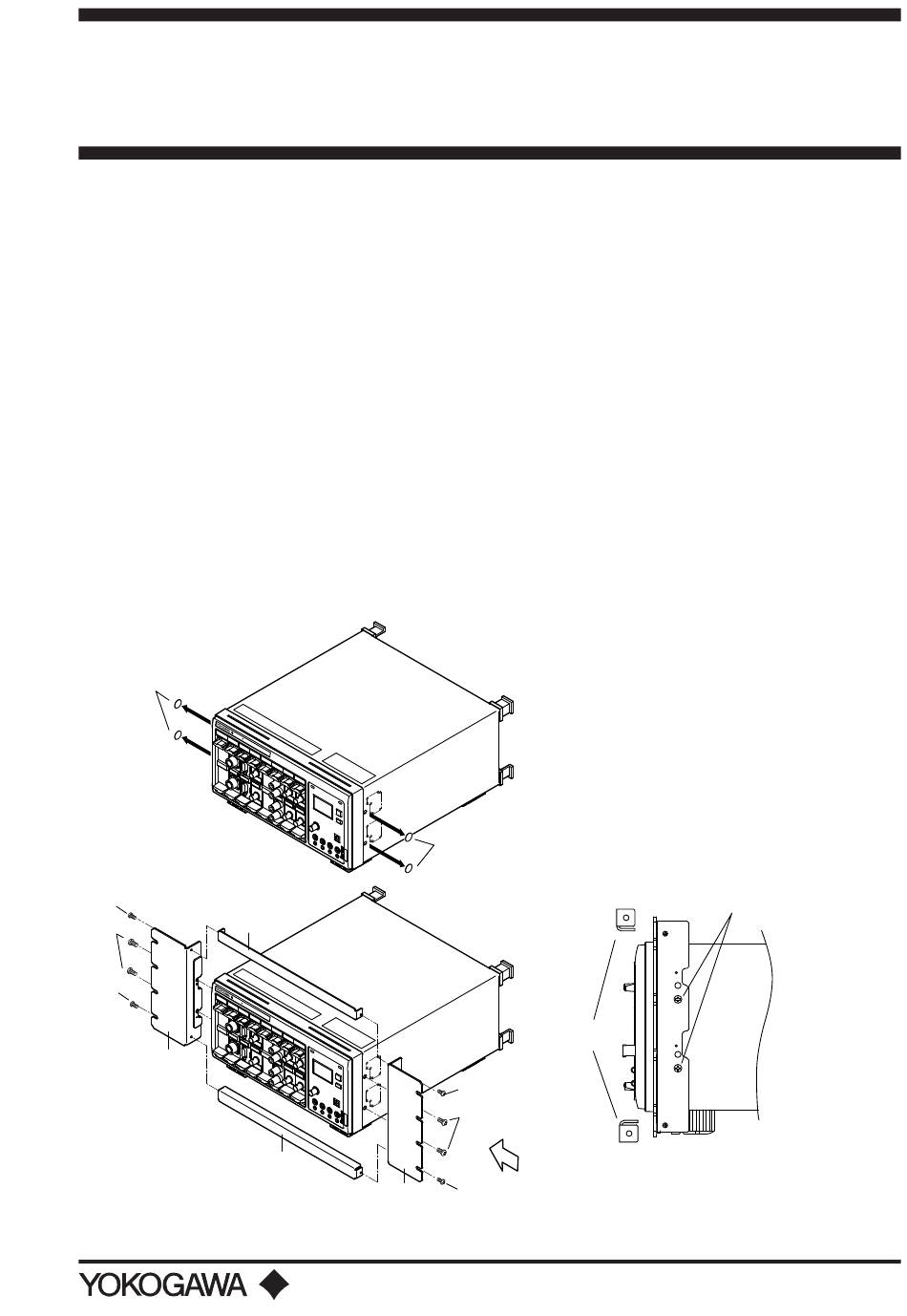

Attach the brackets so that the bent surface touches the measuring instrument (see figure below).
a
S L
1 0 0
0
e
d
c
e
S L
1 0 0
0
b
Model 751541-J4
Rack Mounting Kit
For JIS Compliant Single Housing Rack
a
d
b
1st Edition: February 2008 (YK)
All Rights Reserved, Copyright © 2008 Yokogawa Electric Corporation
Bracket
orientation
e
c
A
e
2nd and 4th holes from the top
Arrow A view
IM 751541-J4-01E 1/2
1st Edition
