User's
Manual
1.
Checking the Parts in the Kit
Confirm that all parts listed below are included in the kit. If any part is shorted or any abnormality
is found in the appearance of the parts, contact our sales representative where you bought the
instrument.
List of parts included in the kit.
lright side bracket (1 pc), left side bracket (1 pc), upper bracket (1 pc), flat-head screws (M3, 10 mm
long) (4 pcs), flat-head screws (M3, 6 mm long) (4 pcs)
2.

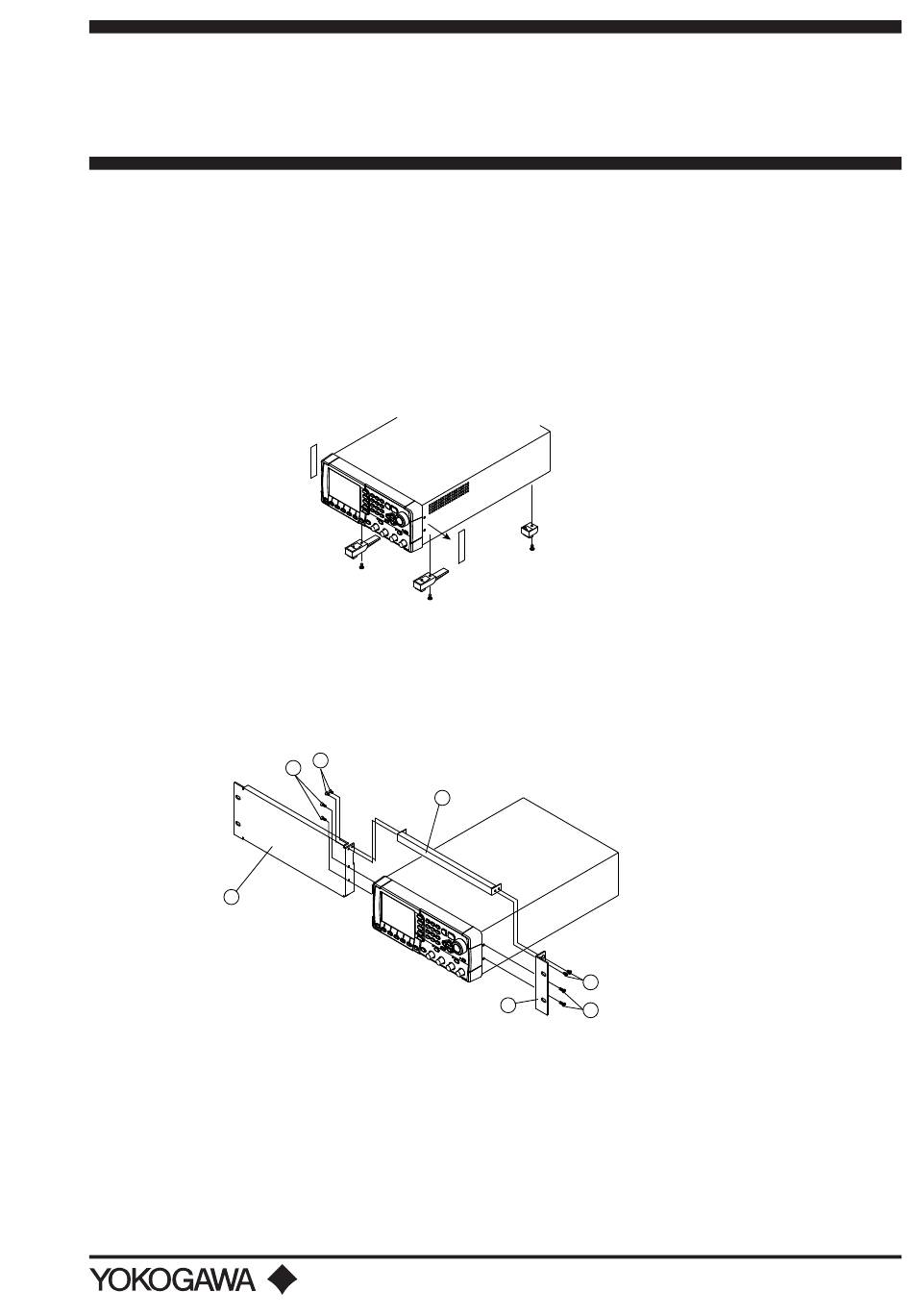

Removing the Parts from the Instrument
1.
Remove the four feet.
2.
Remove the two sealing labels.
3.
Joining the Instruments with Mounting Hardware
1.
Using two flat-head screws (M3, 10 mm long) (4), screw the right side bracket (1) to the right
side and the left side bracket (2) to the left side of the instrument.
2.
Screw the upper brackets (3) to the left and right side brackets with flat-head screws (M3, 6 mm
long) (5).
Reference torque value: 0.6 to 0.7 N·m
2
Model 751537-J2
RACK MOUNTING KIT for FG400
(Single-housing Rack, mm type)
5
4
3
1st Edition : December 2013 (YMI)
All Rights Reserved, Copyright © 2013 Yokogawa Meters & Instruments Corporation
Printed in Japan
5
1
4
IM 751537-J2-01EN (1/2)
1st Edition

Advertisement

loading
Need help?

Need help?

Do you have a question about the 751537-J2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for YOKOGAWA 751537-J2

  • Page 1 Screw the upper brackets (3) to the left and right side brackets with flat-head screws (M3, 6 mm long) (5). Reference torque value: 0.6 to 0.7 N·m IM 751537-J2-01EN (1/2) 1st Edition : December 2013 (YMI) All Rights Reserved, Copyright © 2013 Yokogawa Meters & Instruments Corporation 1st Edition Printed in Japan...
  • Page 2 Mounting the Joined Instruments to the Rack Dimensions after mounting to the rack are illustrated below. Be sure to place support beneath the rack. IM 751537-J2-01EN (2/2)
