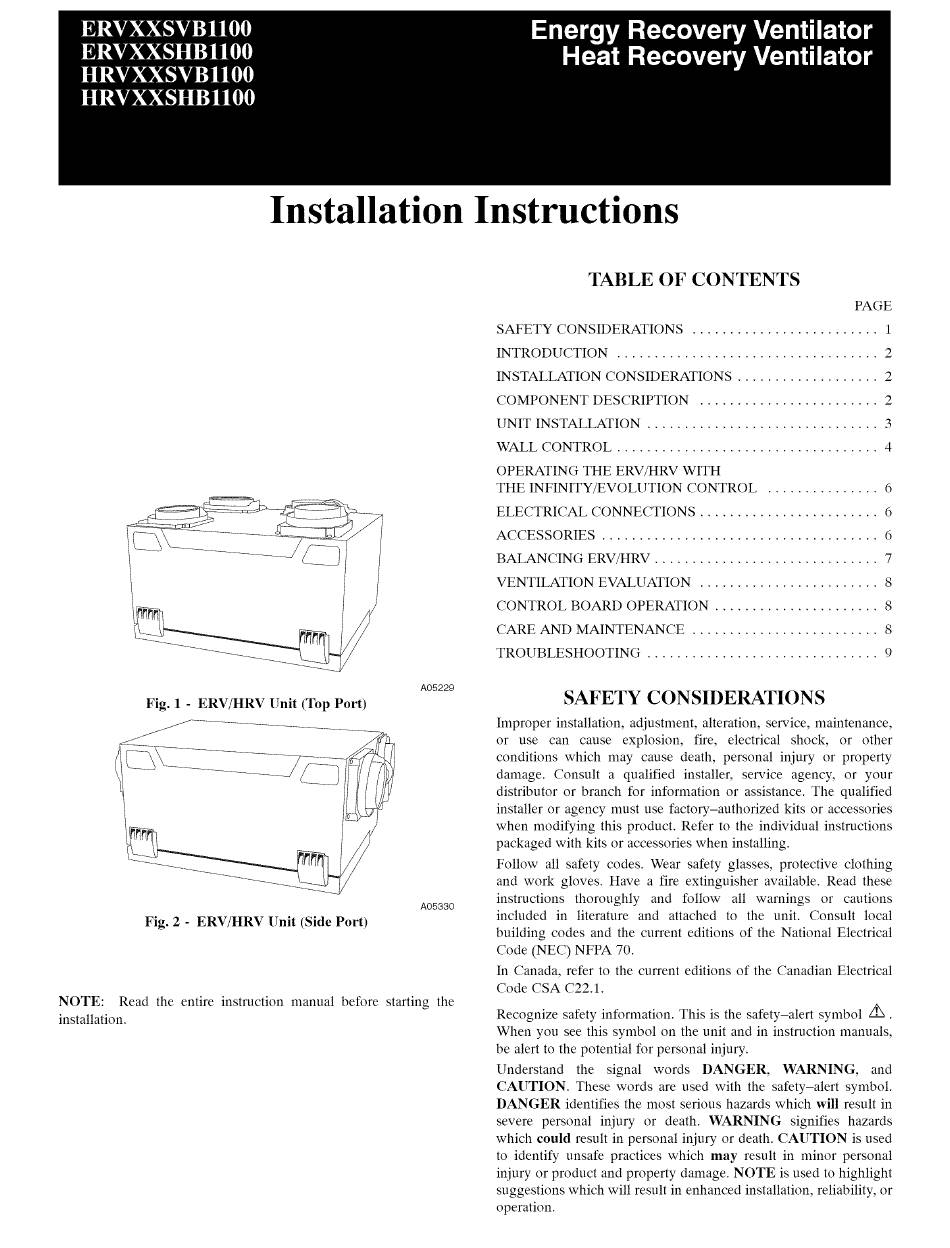

Carrier ERV Series Installation Instructions Manual

ERVXXSVB1100
ERVXXSHB1100
HRVXXSVB1100
HRVXXSHB1100
Energy Recovery Ventilator
Heat Recovery Ventilator
Installation Instructions
A05229
A05330
Fig. 2 - ERV/HRV Unit (Side Port)
NOTE: Read the entire instruction manual before starting the
installation.
TABLE OF CONTENTS
PAGE
SAFETY CONSIDERATIONS 7.2.0.0... 0. eee 1
INTRODUCTION 2.0.6 ee een 2
INSTALLATION CONSIDERATIONS .. 0.06... 2
COMPONENT DESCRIPTION 2.0.0... eee 2
UNIT INSTALLATION ©2000 en 3
WALL CONTROL ©... ee ene 4
OPERATING THE ERV/HRV WITH
THE INFINITY/EVOLUTION CONTROL ............... 6
ELECTRICAL CONNECTIONS . 2.0. eee 6
ACCESSORIES ©. 000s 6
BALANCING ERV/HRV 2.00 eee 7
VENTILATION EVALUATION .. 0.0.06 oe eee 8
CONTROL BOARD OPERATION .. 2.20.0 8
CARE AND MAINTENANCE . 2.0... 0 eee 8
TROUBLESHOOTING ©... ene 9
SAFETY CONSIDERATIONS
Improper installation, adjustment, alteration, service, maintenance,
or use can cause explosion, fire, electrical shock, or other
conditions which may cause death, personal injury or property
damage. Consult a qualified installer, service agency, or your
distributor or branch for information or assistance. The qualified
installer or agency must use factory-authorized kits or accessories
when modifying this product. Refer to the individual instructions
packaged with kits or accessories when installing.
Follow all safety codes. Wear safety glasses, protective clothing
and work gloves. Have a fire extinguisher available. Read these
instructions thoroughly and follow all warnings or cautions
included in literature and attached to the unit. Consult local
building codes and the current editions of the National Electrical
Code (NEC) NFPA 70.
In Canada, refer to the current editions of the Canadian Electrical
Code CSA C22.1.
Recognize safety information. This is the safety-alert symbol A.
When you see this symbol on the unit and in instruction manuals,
be alert to the potential for personal injury.
Understand the signal words DANGER, WARNING, and
CAUTION. These words are used with the safety-alert symbol.
DANGER identifies the most serious hazards which will result in
severe personal injury or death. WARNING signifies hazards
which could result in personal injury or death. CAUTION is used
to identify unsafe practices which may result in minor personal
injury or product and property damage. NOTE is used to highlight
suggestions which will result in enhanced installation, reliability, or
operation.
