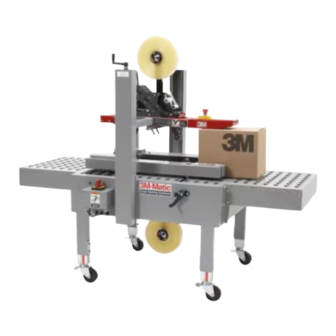

Adjustable case sealer with accuglide 2+ taping heads
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instructions and Parts List
3M-Matic
a80/a80-3
Adjustable
Case Sealer
with
AccuGlide 2+
Taping Heads
Serial No.
For reference, record machine serial number here.
3M Industrial Adhesives and Tapes
3M Center, Building 220-5E-06
St. Paul, MN 55144-1000
™
Type 10800
™
Important Safety
Information
BEFORE INSTALLING
OR OPERATING THIS
EQUIPMENT
Read, understand, and
follow all safety and
operating instructions.
Spare Parts
It is recommended you
immediately order the
spare parts listed in the
"Spare Parts/Service
Information" section.
These parts are expected
to wear through normal
use, and should be kept
on hand to minimize
production delays.
"3M-Matic"and "AccuGlide" are Trademarks of,
3M St. Paul, MN 55144-1000
Printed in U.S.A.
© 3M 2011 44-0009-2063-5 (D072613-NA)
