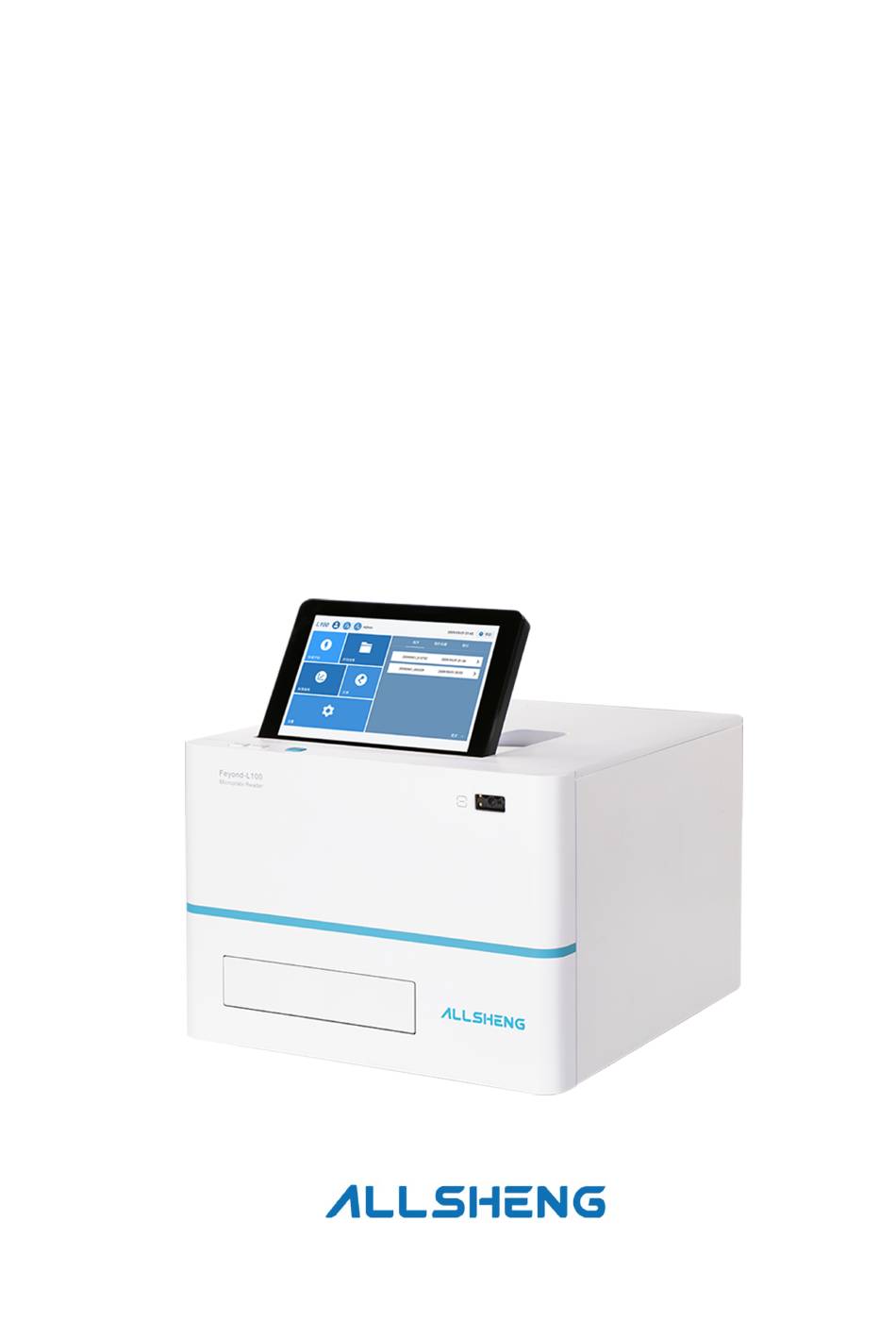

- Page 1 Operation Manual V1.0 Feyond-L100 Luminescence Microplate Reader Hangzhou Allsheng Instrument Co., Ltd...
- Page 2 Version Modification Record Version No. Modification Date Description V1.0 2025.01.15 Initial Release...
- Page 3 If anything wrong or missing, please contact the distributor or the manufacturer. HANGZHOU ALLSHENG INSTRUMENTS CO., LTD. Add: Building 9 No.7 of Zhuantang Science and Technology Economic Zone, Xihu District, Hangzhou City, 310024 Zhejiang P.R. China Tel.: 0086-0571-88859758...
-
Page 4: Safety Warnings
Safety Warnings 1. Safety Matters Users need to have a complete understanding of how the instrument works before they can safely operate it. Please read this manual carefully before operating the instrument. It's forbidden to operate the device before reading this manual. If the instructions are not followed, the instrument may cause accidental injury during operation and may cause electric shock. - Page 5 Please read this manual carefully before operating, otherwise it may cause personal injury. Only qualified inspection personnel who have been trained in how to install and use electrical equipment can operate this instrument. Notice: Human injury. It is prohibited to place hands or other parts of the body within 15cm in front of the device when running to prevent human injury and device damage.
- Page 6 Power off when not in use. If laid off for long time, please pull off the plug and cover the device with cloth or plastic paper. Disconnect the power cord from the jack at once if following cases happen, and contact your local distributor or professional maintenance personnel: ...
-
Page 7: Table Of Contents
Contents Chapter 1 Introduction..................1 Chapter 2 Specification..................2 Chapter 3 Composition of Instrument............3 Chapter 4 Installation..................5 1. Check Before Opening................... 5 2. Installation Requirement................5 3. Installation..................... 6 Chapter 5 Operating Instructions..............7 1. Startup......................7 2. File Page.......................10 3. Protocol Page....................11 3.1 Title...................... - Page 8 8. Algorithm..................... 30 9. Algorithm Parameter...................32 10. Report Export.................... 33 11. Setting......................34 11.1 System Page.....................35 11.2 Function Page..................35 11.3 Instrument Page..................36 11.4 Upgrade Page..................36 11.5 Plate Database Page................37 11.6 Upload Page.....................37 12. Shutdown....................38 Chapter 6 Maintenance, Storage and Transportation........39 Chapter 7 Trouble Shooting................
-
Page 9: Chapter 1 Introduction
Feyond-L100 Luminescence Plate Reader Chapter 1 Introduction Chapter 1 Introduction Feyond-L100 Luminescence Microplate Reader is a powerful luminescent immunoassay analyzer that can be widely used for various luminescence analyses, including flash and glow. Its high performance makes it an ideal... -
Page 10: Chapter 2 Specification
Feyond-L100 Luminescence Plate Reader Chapter 2 Specification Chapter 2 Specification Working Conditions Temperature: 10 ℃ to 40 ℃ Humidity: 10%~80% (non condensing) Power Supply AC100~240V 50/60Hz 2A Parameter and Performance Product Name Luminescence Microplate Reader Model Feyond-L100 Wavelength range 200-850nm... -
Page 11: Chapter 3 Composition Of Instrument
This chapter mainly introduces structures, as well as preparations before starting up. Please read this chapter carefully before using. The Feyond-L100 Luminescence Microplate Reader consists of three major parts: shell supporting part, motion part, and detection part, which respectively realize instrument support, sample feeding, and sample detection functions. - Page 12 Feyond-L100 Luminescence Plate Reader Chapter 3 Composition of Instrument Back view 9. Switch 10. Power socket 11. Cooling Fan 12. Rear Cover Plate 13. USB-B Port 14. USB-A Port 15. Ethernet Port 16. CAN Bus Interface...
-
Page 13: Chapter 4 Installation
Chapter 4 Installation Chapter 4 Installation 1. Check Before Opening All Feyond-L100 Luminescence Microplate Readers have undergone strict inspection by the company before packaging and transportation. After receiving the instrument, please carefully check unpacking and pay attention to the following damages: 1. -
Page 14: Installation
Feyond-L100 Luminescence Plate Reader Chapter 4 Installation 3. Installation Place package gently on the table, open the carton and remove the upper packaging, then take out the instrument and place on the operating platform. Notice: Do not artificially loosen any other screws or components, as this may cause damage to the instrument and lose its warranty. -
Page 15: Chapter 5 Operating Instructions
Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction Chapter 5 Operating Instructions 1. Start-up After the installation, turn on the power switch and the instrument will start. Enter the self check page shown in Figure 5-1. During this period, the instrument will automatically complete self check and calibration. - Page 16 Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction Fig 5-2 Log In Page Password: 0000. Log in to enter home page, shown Fig 5-3. Fig 5-3 Home Page Click to enter account page . Click to enter user setting page. Default page is 'Change Password', Shown in Fig 5-4.
- Page 17 Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction Fig 5-4 Change Password Click "User Management" to enter the user management page, shown in Fig 5-5. Fig 5-5 User Management Page This model has three account levels, shown in Table 5-1:...
-
Page 18: File Page
Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction Table 5-1 Name Permission content Note Administrator, have all access related to user Unique account, Admin operation. Cannot log in if forgetting the password. fixed name Set by the Admin account. Have same or less... -
Page 19: Protocol Page
Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction Fig 5-6 Home Page 3. Protocol Page Click 'Quick Start' pop up a new protocol page. Users can select protocols according to experimental needs, as shown in Fig 5-7. Fig 5-7 Quick Start Page... -
Page 20: Title
Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction After selecting the plate and detection type, click 'OK' to enter the protocol page. Shown in Fig 5-8. This page mainly consists of a title, main area, menu, and options. Title Options... -
Page 21: Main Area
Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction Click to rename the protocol, with a maximum of 15 characters/7 Chinese characters. Uppercase and lowercase letters, numbers, Chinese characters, '-' and '_' are available. Click to choose an operation, including New, Save, Save As, Export to U Protocols disk, QR code and Report. - Page 22 Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction Operation Area Display Area 5-11 Main Area Fig 5-12 End-point Detection is Over...
-
Page 23: Options
Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction When running dynamics detection, the page looks like Fig 5-13. Fig 5-13 Dynamics Detection is Over 3.3 Options The options area has two categories, Step and Analysis. Below is parameter display, setting, layout. Shown in Fig 5-14. -
Page 24: Menu
Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction 3.4 Menu The below is menu area, shown in Fig 5-15. Incubation, injection, filter, shaking, plate in/out, operation information, and operation buttons are included. Fig 5-15 Menu Area The function of menu area is shown in Table 5-4... - Page 25 Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction Table 5-5 Incubation Page Functions Name Function Incubation Turn on or off incubation. Default value is off. Enter the target temperature for incubation, ranging from Temperature RT+4 ℃ to 45 ℃ .
- Page 26 Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction Fig 5-17 Injection Page 1 Fig 5-18 Injection Page 2 Filter Click 'Filter' to see the filter information and change filter. Shown in Fig 5-19.
- Page 27 Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction Fig 5-19 Filter Page The functions in filter page is shown below. Table 5-7 Functions in Filter Page Name Function Filter position Show the filter position Filter The wavelength of the filter...
-
Page 28: Step Parameter
Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction 4. Step Parameter Click step parameters to set the step parameters of the protocol. Feyond-F100 only has one detection mode: LUM. Its detection function has two type: End-point, Dynamics. End-Point detection only tests once. Dynamics tests cyclically, test number ranges from 2 to 99. - Page 29 Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction Volume 2 Injection volume of bump 2 Speed 2 Injection speed of pump 2 Fig 5-20 'No Reagent' Page Fig 5-21 'Both' Page...
-
Page 30: General Settings
Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction 2) General Settings The general settings are shown in Fig 22. The functions shown in Tables 5-10. Fig 5-22 General Settings Table 5-10 General Settings Name Function Detection Title PMT Gain Default value is 'Automatic'. This value cannot be changed. - Page 31 Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction Note: Only when choosing 'Both' injection, the 'general' page will show parameters like 'Delay 1'. 3) Filter setting Filter setting page is shown in Fig 5-23. The default position is P1. 470nm and 560nm filters are standard filters.
-
Page 32: Region Selection
Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction Fig 5-24 Shaking Setting Page The default setting of Shaking is shown in Table 5-11: Table 5-11 Shaking Parameters Name Default Value Shaking Default value: OFF Speed Three values: Low, Medium, High. Default value: Low. -
Page 33: Dynamics Detection Step Parameter
Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction Fig 5-25 Area Selection Page 4.2 Dynamics Detection Step Parameter Notice: The injection, general, filter, shaking and area selection in this page are the same as the LUM endpoint detection. The different parameters for reading and shaking are shown below. - Page 34 Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction Fig 5-26 Dynamics-Total Time Settings Fig 5-27 Dynamics-No. of Reading Settings...
-
Page 35: Layout Setting
Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction Table 5-12 Dynamics Parameter Settings Name Function Total Time/No. Of Choose control the reading via total time of No. Of Reading. Reading Method Plate, Well Total Time The total time of the dynamics cycle, max 99:59:59. - Page 36 Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction Display Area Options Sample Type Fig 5-29 Display Layout Different colors correspond to different options, as shown in Table 5-13. Table 5-13 Sample Type Function Table name Function Icons For duplicas. When default, name is same with group No.
-
Page 37: Running Tests
Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction 6. Running tests After the program is set, place the microplate on the tray properly. 1) Click on the ' ' or physical button 'IN/OUT' to stick out the microplate tray. 2) Put on the microplate, shown in Fig 5-30, and click 'Run'. -
Page 38: Algorithm
Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction Operation Display Area Algorithm Paramete Fig 5-32 Result Page The functions in data analysis area is shown in Table 5-14. Table 5-14 Data Analysis Function Name Type Function Raw Data Drop-down menu Click to display the selectable algorithms. - Page 39 Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction whole. Both endpoint and dynamic algorithm only subtracts blank spaces and standard curves. The constraint relationship of the algorithm is shown in Table 5-15. Table 5-15 Algorithm Restriction Name Restrictions Subtract Blank Blank samples must be set.
-
Page 40: Algorithm Parameter
Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction 9. Algorithm Parameter Algorithm parameters refer to the specific setting parameters of the algorithm, which vary depending on the selected algorithm. The following will introduce each algorithm parameter separately. Subtracting blanks does not require setting algorithm parameters. -
Page 41: Report Export
Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction Fig 5-34 Standard Curve Type Selection Page The functions of the standard curve display area are shown in Table 5-18. Table 5-18 Functions of the Standard Curve Display Area Name Function Click to save to the standard curve library or as QR code... -
Page 42: Setting
Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction Fig 5-35 Report Export Page Click the 'File Type' to choose the exported format. Currently 2 formats are available. XLS, CSV. On the right side, select the content to be exported and click the corresponding option. -
Page 43: System Page
Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction Setting page mainly has six functions: System, Function, Instrument, Upgrade, Plate Database, Data Upload. 11.1 System Page Click 'System' to set Language, Date and Time, Brightness, Lock Screen Time, No. Of protocols per page. Shown in Table 5-19. -
Page 44: Instrument Page
Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction Table 5-20 Name Type Function Keep plate in the When turned on, the plate remains in the instrument after Buttons device after run. When turned off, the plate running the program will be moved out after run... -
Page 45: Plate Database Page
Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction Fig 5-39 Instrument Page 11.5 Plate Database Page Click 'Plate Database' to edit the plate database. Fig 5-40 Plate Database Page 11.6 Upload Page Click 'Upload' to upload the test result to the PC. The FTP server is needed and... -
Page 46: Shutdown
Feyond-L100 Luminescence Plate Reader Chapter 5 Operation Instruction the PC and device should be connected with USD wire. Please contact the seller or manufacturer for the FTP server installation. Fig 5-41 Upload Page 12. Shutdown Take off the microplate, and let the tray go back inside the device. -
Page 47: Chapter 6 Maintenance, Storage And Transportation
Feyond-L100 Luminescence Plate Reader Chapter 6 Maintenance, Storage and Transportation Chapter 6 Maintenance, Storage and Transportation Maintenance 1. The storage environment of the instrument should be kept dry, protected from moisture, corrosion, and away from sources of strong electromagnetic interference. -
Page 48: Chapter 7 Trouble Shooting
Feyond-L100 Luminescence Plate Reader Chapter 7 Trouble Shooting Chapter 7 Trouble Shooting Trouble Shooting Symptoms Reason Treatment Check if the device is powered Abnormal power Device Not starting up Check if the power plug is supply loose Check voltage 'Communication Restart the device. - Page 49 Memo...
