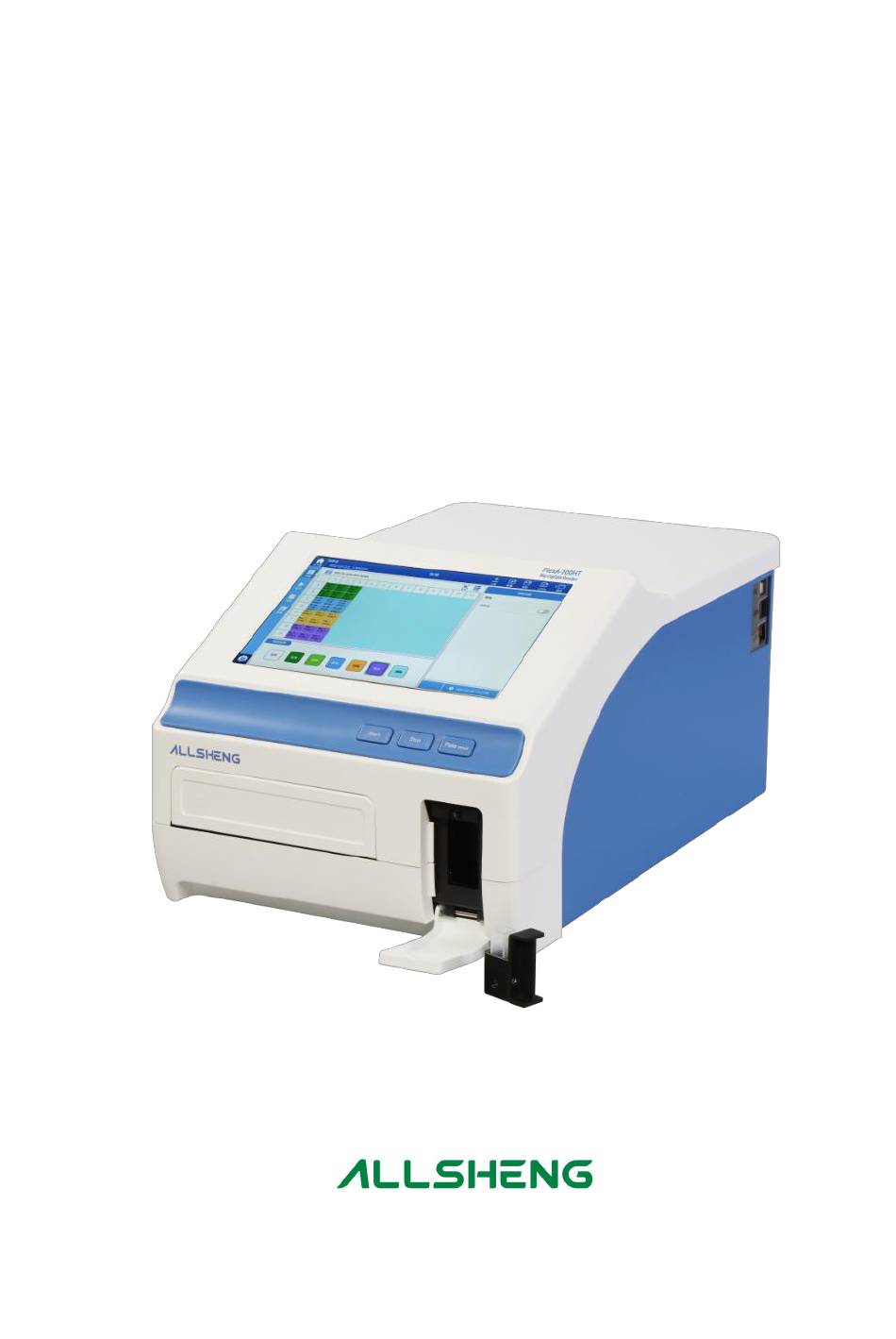

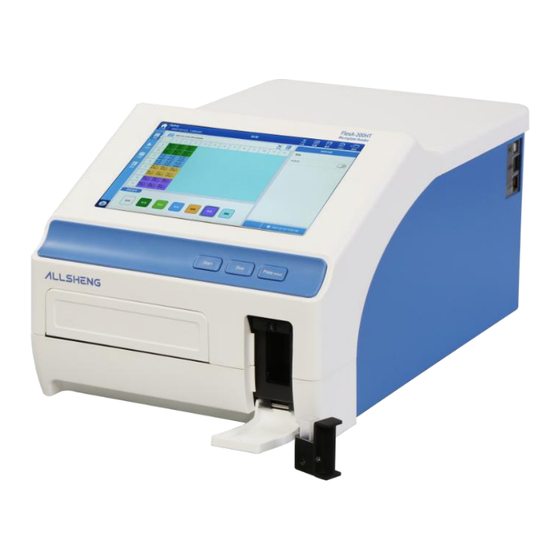

  • Page 1 Operation Manual Version 1.0 FlexA-200HT Microplate Reader Hangzhou Allsheng Instruments Co.Ltd.
  • Page 2 Version modification Record: Version No. Date Modification Description V1.0 2022.04.25  Initial Release...

  • Page 3: Opening Check

    Please check the instruments as well as all accessories with packing list when you first open it. If you find any wrong or missing, please contact distributor or manufacturer. HANGZHOU ALLSHENG INSTRUMENTS CO., LTD. Add: Building 1 & 2, Zheheng Science Park, Zhuantang Town, Xihu District, Hangzhou, Zhejiang 310024, China Tel.: 0086-0571-89948289...

  • Page 4: Safety Warning And Guidelines

    Safety Warning and Guidelines 1. Important information for safe use Users should have a clear main idea on how to use this instrument before operate, do read this user manual carefully. Any improper operation without reading manual is forbidden, otherwise there will be risks in cause accidental injury or electrical shock.
  • Page 5 Warning: Avoid injury. Keep your body or any part of body away 15cm (or more) from the instrument when running. Operator should not open or repair the instrument without vendor’s authorization, or there might be potential damages or injuries and also will affect the warranty. If there is some wrong with the Instrument, please contact manufacturer for repair.
  • Page 6 3. Post-sale service a) Warranty Content Within one month from the date of delivery, the company will guarantee the replacement of the instrument for defects in materials and manufacturing. This instrument is guaranteed for failure caused by material and manufacturing defects within 12 months from the date of delivery. During the warranty period, our company will selectively repair or replace the instrument which is proved to be defective.

  • Page 7: Table Of Contents

    Contents Foreword ......................I Opening check ....................I Safety Warning and Guidelines ..............II Chapter 1 Brief Introduction ..............1 Chapter 2 Features ..................2 Chapter 3 Instrument Structure ..............3 Chapter 4 Installation ................. 4 1. Opening check ..................4 2. Installation ...................4 3.

  • Page 8: Chapter 1 Brief Introduction

    FlexA-200HT Microplate Reader Operation Manual Chapter 1 Brief Introduction Chapter 1 Brief Introduction This automatic microplate reader FlexA-200HT is professional instrument for ELISA, measuring concentration, absorbance, positive or negative of the antibody and antigen in the sample by testing the color of the Enzyme - Linked Immunosorbent Assay (ELISA).

  • Page 9: Chapter 2 Features

    FlexA-200HT Microplate Reader Operation Manual Chapter 2 Features Chapter 2 Features Working conditions: Ambient temperature: 10C~40C The relative humidity: 30%~80%(No condensation) Power: AC100-240V 50-60Hz 2A Parameters: Model FlexA-200HT Parameter Light source Xenon flash lamp >10 flashes Wavelength 200～1000nm Bandwidth ＜2.5nm...

  • Page 10: Chapter 3 Instrument Structure

    FlexA-200HT Microplate Reader Operation Manual Chapter 3 Instrument Structure Chapter 3 Instrument Structure Structure Rear cover Touch screen Roof cover Front door Extension module Plate holder External button B-type USB port USB port LAN port Air outlet Power socket Switch ─...

  • Page 11: Chapter 4 Installation

    FlexA-200HT Microplate Reader Operation Manual Chapter 4 Installation Chapter 4 Installation 1. Opening check Each FlexA-200HT is thoroughly tested before shipping, but please check again when you receive the instrument and contact your local distributor or manufacturer if: • The outer package is damaged •...
  • Page 12 FlexA-200HT Microplate Reader Operation Manual Chapter 4 Installation Fig 1 Note: Attention to the interface of the power adapter, please connect it to the power according to the direction of the above picture. Switch “I/O” button to “I” to turn on the instrument, the front panel will cycle through a start-up and self-test screen.

  • Page 13: Chapter 5 Operation Guide

    FlexA-200HT Microplate Reader Operation Manual Chapter 5 Operation Guide Chapter 5 Operation Guide 1. Instrument self-check This chapter introduces default protocol operation, beginning with self-check after power on. Refer to the picture below: Fig 2 User login interface will appear after self-checking, see Fig 3.
  • Page 14 FlexA-200HT Microplate Reader Operation Manual Chapter 5 Operation Guide Three types of user permissions, as shown in table 1. Table 1 Creation User type Permission Export Default password Method For all files of Can not be Admin “123456” Admin, User and...

  • Page 15: System Settings

    FlexA-200HT Microplate Reader Operation Manual Chapter 5 Operation Guide 2. System settings Users can can make system settings according to their needs, details see Fig 5. Fig 5 Note: 1. The instrument need to be restarted after date and time settings finished.
  • Page 16 FlexA-200HT Microplate Reader Operation Manual Chapter 5 Operation Guide The navigation bar The main display area The optional bar Switching bar Fig 6 Protocol name can be modified by clicking it directly. The default name of a new protocol is the system time, and it can be modified by manual.
  • Page 17 FlexA-200HT Microplate Reader Operation Manual Chapter 5 Operation Guide Unfold state Protocol edit state Fig 7 When the protocol list is in unfold state, users can do below operations:  Search: Enter keyword to carry out searching automatically.  Sorting: Protocols can be sorted according to “Name”, “Date” and “State”.

  • Page 18: Read A Microplate

    FlexA-200HT Microplate Reader Operation Manual Chapter 5 Operation Guide  Checkbox: “” can be chosen for more than one for batch operation.  Delete: Delete selected protocols.  Export: For exporting selected protocols to U-disk.  Cancel: Return to the unfold state of protocol list.
  • Page 19 FlexA-200HT Microplate Reader Operation Manual Chapter 5 Operation Guide With white color on the interface, it is as blank control during running measurement. All blanks are duplicate wells in a same group. Standard sample well which is used for creating standard curve, it is with green color.
  • Page 20 FlexA-200HT Microplate Reader Operation Manual Chapter 5 Operation Guide Fig 9 Note: Elisa plate layout can be carried out before or after testing, for example, users can set all wells as “unknown”, do absorbance test, then layout of plate. The test data and layout are separated, users can modify or analyze the layout of historical data in real time.
  • Page 21 FlexA-200HT Microplate Reader Operation Manual Chapter 5 Operation Guide Meanwhile the switching bar will turn out to be controller which mainly includes below functions:  Incubator: This function can make the plate detection chamber up to specified temperature, the temperature displays is the real time temperature.
  • Page 22 FlexA-200HT Microplate Reader Operation Manual Chapter 5 Operation Guide ┗ Shake ┗ Shake ┗ Shake ┗Speed ┗Speed ┗Speed ┗Low ┗Low ┗Low ┗Medium ┗Medium ┗Medium ┗High ┗High ┗High ┗Type ┗Type ┗Type ┗Continuous ┗Continuous ┗Continuous ┗Pulsed ┗Pulsed ┗Pulsed ┗Time ┗Time ┗Time ┗ Wait Time at start ┗...

  • Page 23: Result Processing

    FlexA-200HT Microplate Reader Operation Manual Chapter 5 Operation Guide Fig 11 Click button “ ” on screen or pressing “Start” button on the enclosure. If the protocol has been implemented, a hint will pop out for re-naming the protocol, input a new name, click “ok” to run the protocol, meanwhile, the plate holder will move into the Reader for sample detection, the screen will turn dark as Fig 12 and all buttons will unavailable except stop button “...
  • Page 24 FlexA-200HT Microplate Reader Operation Manual Chapter 5 Operation Guide protocol. If users want results been analyzed, just switch to “Result” interface in the side bar, see Fig 13. Fig 13 Result displayed different according to different layout of protocol settings and detection modes, the above Fig 13 is results of endpoint.
  • Page 25 FlexA-200HT Microplate Reader Operation Manual Chapter 5 Operation Guide performed for the absorbance at different wavelengths of the same well.  Standard Curve: Based on the concentration of the standard well and measured absorbance, the instrument will generate corresponding standard curve according to standard sample sequence for sample concentration calculation, see Fig 14.
  • Page 26 FlexA-200HT Microplate Reader Operation Manual Chapter 5 Operation Guide  Logit/Log The absorbance value and concentration value of standard sample can be pretreated by concentration conversion and absorbance conversion, this instrument supports four types as below:  Linear/Linear (Linear fitting of absorbance value and corresponding concentration) ...
  • Page 27 FlexA-200HT Microplate Reader Operation Manual Chapter 5 Operation Guide  Quality Control: Click “Quality Control” button, the interface will turn to Fig 16, the main display area will turn out to be a list, it displays status of the quality control well which set previously, instrument will mark according to conditions set in “Parameters”.
  • Page 28 FlexA-200HT Microplate Reader Operation Manual Chapter 5 Operation Guide Choose the target well, click “Graph” button can enlarge the kinetic curve, see Fig 18, then click “Back” to graph main interface. Fig 18 “Calculation” area turns out four types: “Raw Data”, “Blank Subtraction”, “Basic Calculation”...
  • Page 29 FlexA-200HT Microplate Reader Operation Manual Chapter 5 Operation Guide Fig 19 5.3 Spectral Analysis See Fig 20, select target wells, click “Graph” button to enlarge the spectral curve, the absorbance of each wavelength shown on the curve. Users can click “Back”...
  • Page 30 FlexA-200HT Microplate Reader Operation Manual Chapter 5 Operation Guide absorption peak as 1, the remaining values will be converted into percentage based on this criterion.  Ration within Spectrum: Set two wavelength values λ1 and λ2, calculate the value of λ1/λ2.

  • Page 31: Report Exporting

    FlexA-200HT Microplate Reader Operation Manual Chapter 5 Operation Guide 6. Report exporting Both processed data and raw data can be exported, click “Report” button on the left side to the main interface of reports, see Fig 22. Fig 22 Choose the right format on “File Type” area, four formats are available: ...

  • Page 32: Chapter 6 Cuvette Function Description

    FlexA-200HT Microplate Reader Operation Manual Chapter 6 Cuvette function description Chapter 6 Cuvette function description 1. Interface function Click the Cuvette icon to enter the cuvette function interface, as Fig 23. This interface mainly composed by five parts: the navigation bar at the top, the sidebar, the main display area, the optional bar, switching bar.
  • Page 33 FlexA-200HT Microplate Reader Operation Manual Chapter 6 Cuvette function description Fig 24 After running with Endpoint method, the interface as shown in figure below, the calculations area is gray, and will not be changed. Fig 25 ─ ─...

  • Page 34: Abs-Spectrum

    FlexA-200HT Microplate Reader Operation Manual Chapter 6 Cuvette function description The function of Endpoint interface as table 6-2. Table 6-2 Icon Function At upper left corner, select type of protocol: Endpoint, Spectrum, Kinetic. New protocol. The default name of a new protocol is the system time, and it can be modified by manual.
  • Page 35 FlexA-200HT Microplate Reader Operation Manual Chapter 6 Cuvette function description parameter for spectrum testing now. Fig 26 The function of spectrum interface as table 6-3. Table 6-3 Icon Function Users can set the initial wavelength of the detection range, wavelength range 200-1000.
  • Page 36 FlexA-200HT Microplate Reader Operation Manual Chapter 6 Cuvette function description Displayed as a list Fig 27 Displayed as a graph Fig 28 After protocol complete running, on the left side of the display area is the reading curve, display the results for the corresponding data of headline in list.

  • Page 37: Abs-Kinetic

    FlexA-200HT Microplate Reader Operation Manual Chapter 6 Cuvette function description “ ” on the right of display area for checking, as figure below. Fig 29 4. Abs-Kinetic Click “Kinetic”, enter Kinetic interface, as below figure. It can set the parameter for Kinetic now.
  • Page 38 FlexA-200HT Microplate Reader Operation Manual Chapter 6 Cuvette function description In switching bar at bottom, wavelength λ: Input wavelength for reading; Click edit to set time and numbers for kinetic testing, as figures below. Total time: Total running time, up to 99:59:59. Number of readings: Input number for kinetic, range is 2~99, internal time can be set freely, range is 99:59:59.

  • Page 39: Standard Curve--Curve

    FlexA-200HT Microplate Reader Operation Manual Chapter 6 Cuvette function description Fig 33 5. Standard Curve——Curve Click “Curve”, enter Standard Curve interface, as figure below. It can set the parameter for standard curve now. Fig 34 Function of standard curve interface, as table 6-4.
  • Page 40 FlexA-200HT Microplate Reader Operation Manual Chapter 6 Cuvette function description Table 6-4 Icon Function Click to select a test or curve. Create a new standard curve. Click the icon to save the current standard curve, unable to modify after saving.

  • Page 41: Standard Curve--Test

    FlexA-200HT Microplate Reader Operation Manual Chapter 6 Cuvette function description Calculation type and Fit type as Fig 35. Fig 35 6. Standard Curve——Test Click “Curve” in side bar, enter standard curve interface, as below figure. It can set the parameter for standard curve now.

  • Page 42: Chapter 7 Maintenance, Storage, Transportation

    FlexA-200HT Microplate Reader Operation Manual Chapter 7 Maintenance,storage,transportation Chapter 7 Maintenance, storage, transportation 1. Maintenance  Keep storage environment dry and clean to prevent moisture, corrosion, away from strong electromagnetic interference sources.  Instrument already calibrated before leave factory. User is not allowed to disassembly and make adjustment.

  • Page 43: Chapter 8 Trouble Shooting

    FlexA-200HT Microplate Reader Operation Manual Chapter 8 Troubleshooting Chapter 8 Trouble shooting Trouble description Possible reason Solution a. Check the if the instrument energized The Microplate Reader Power supply b. If the power plug loose can not be started failure c.
