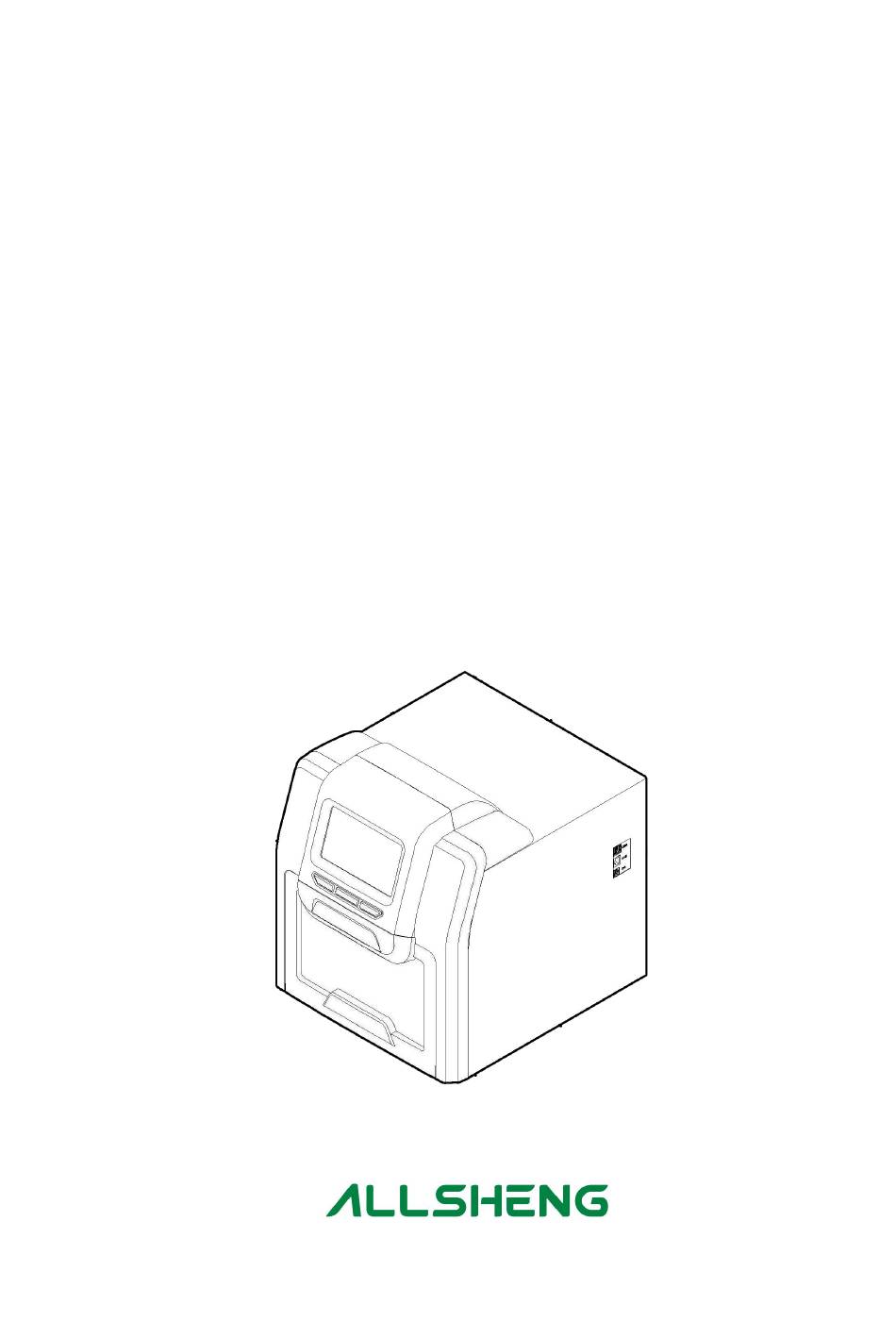

  • Page 1 Operation Manual Auto-Pure 20A Auto-Pure 20B Auto-Pure 32A Auto-Pure Series Nucleic Acid Purification System Hangzhou Allsheng Instruments Co., Ltd.
  • Page 2 Thank you for purchasing Auto-Pure series Nucleic Acid Purification System. In order to use the instrument properly, please read carefully this manual before operating and keep it for future reference. Opening Check Please check the instrument and Appendix with the packing list when you first open the package.
  • Page 3 Safety Warnings and Guidelines 1 Warning Please read this Manual carefully before operation. Operation without reading the manual may cause damage or even electrical shock. 2 Safety Tips The operation, maintenance and repair of the Instrument should comply with the basic guidelines and cautions as below.
  • Page 4 The Instrument should be placed in a position with low humidity, less dust, and keep it away from water, sunshine and strong light source. Make sure of adequate ventilation, no corrosive gases, no strong magnetic interference and to avoid any heat sources. When operating more than one Instrument simultaneously, the spacing distance should be no less than 100 cm.

  • Page 5: Table Of Contents

    Contents Chapter 1 Brief Introduction ----------------------------------------------------------------------------- 1 Chapter 2 Specifications ----------------------------------------------------------------------------------- 2 1. The normal operating condition---------------------------------------------------------------------------2 2. The basic parameters and performance--------------------------------------------------------------- 2 3. Overall dimension---------------------------------------------------------------------------------------------- 3 Chapter 3 Product Introduction ------------------------------------------------------------------------ 4 1. Structure-----------------------------------------------------------------------------------------------------------4 2. Operation panel------------------------------------------------------------------------------------------------- 5 Chapter 4 Operation ------------------------------------------------------------------------------------------ 6 1.

  • Page 6: Chapter 1 Brief Introduction

    Chapter 1 Brief Introduction Auto-Pure series Nucleic Acid Purification System use the magnetic rod to adsorb, transfer and release magnetic particles to transfer the operating sample and in this way to purify DNA/RNA, protein and cell etc. The Purification system able to handle 1-20 or 1-32 samples...

  • Page 7: Chapter 2 Specifications

    Chapter 2 Specification 1. Normal operating conditions Environmental Temperature: 10C～35C Relative Humidity ≤70% Input: AC 100～240V，50Hz/60Hz 2. Basic parameter & Performance Auto-Pure Auto-Pure Model Auto-Pure 32A Parameter Magnetic Particle Method Magnetic Particle Method Principle 1~20 1~32 Throughput Sample Volume 20μL~2000μL 20μL~5000μL 20μL~1000μL Magnetic rod...

  • Page 8: Overall Dimension

    3. Overall Dimension ─ ─...

  • Page 9: Chapter 3 Product Introduction

    Chapter 3 Product Introduction This chapter basically introduce the instrument structure, operation buttons, display panel as well as the preparations before operate. For the first time user, please make sure to read this chapter before start. 1. Structure 1.1. Front Display screeen Shortcut...

  • Page 10: Operation Panel

    1.3. Auto-Pure 20A & Auto-Pure 20B Inside view Magnetic rod (Over the magnetic rod cover) UV light (top inside) Magnetic rod cover stand Heating strip Drawer (bottom inside) Note: The only difference between the experiment module of Auto-Pure 20A and Auto-Pure 20B is the shape of the heating strip.

  • Page 11: Chapter 4 Operation

    Chapter 4 Operation 1. Preparation Take out the instrument from packing carton and tear off the tape on the edge of operation window, then open it and take out the foam. Screw out the screw of position ① as below and take out the baffle and release the drawer.

  • Page 12: Power Connection

    Customized reagent kit Note: The shape of customized reagent kit of Auto-Pure 20B is different from Auto-Pure 20A, while the installation is the same. 3.2 Install the 96 well reaction plate on Auto-Pure 32A. Take out the drawer and put the 96 well reaction plate which already filled with samples mounted on the locating slot, make sure the plate with chamfering should be on the left side, then push back the drawer slowly.

  • Page 13: Install Magnetic Rod Cover

    quantity depends on the reagent kit number. Auto-Pure 20A Auto-Pure 20B Magnetic rod cover Note: The installation of magnetic rod cover between Auto-Pure 20A and Auto-Pure 20B is the same. 4.2 Install the magnetic rod cover for Auto-Pure 32A Insert the magnetic rod cover completely on the mounting groove, and the installation quantity depends on the reagent kit number.

  • Page 14: Remove Magnetic Rod Cover

    5. Remove magnetic rod cover Press the button and take out the magnetic rod cover as per below photo. ─ ─...

  • Page 15: Operating

    6. Operation 6.1 Start-up Interface Turn on the instrument and make sure the drawer is closed before start, the screen will display the start-up interface. After start, it will enter into the shortcut mode as below: 6.2 Program Run 6.2.1 Shortcut mode ─...
  • Page 16 Under the shortcut mode, select the program needed and click “Run”, it will enter into the program run interface. The program can also be selected by press “Tab” button on the panel and then press “Run” for start or “Stop” for terminate. Auto-Pure 20A Run interface Auto-Pure 20B Run interface ─...
  • Page 17 Auto-Pure 32A Running interface On the left side, it shows the current step info., when the exact reagent position start to run, then this position will be highlighted, and there will be temperature display on the position of heating function. The progress bar will display the progress and there’s also left time display on the top right corner.
  • Page 18 6.2.2 List mode Select the program and click "Run" to enter into the run interface. Click “View” to enter into the check interface. ─ ─...
  • Page 19 Click “Run” to enter the running interface. Click “Option” to view the parameter setting of the program. Click “Back” to previous interface. 6.2.3 Lamp At the bottom of interface, the icon “ ” shows that the lamp is on,and the icon “ ”...
  • Page 20 ─ ─...
  • Page 21 6.3.1 Shortcut operation Click “√” of the program in the “Manage Prog.” interface, the program will be displayed in the “Shortcut” list interface. In the list of “Lock”, if the icon is “ ”, the program can not be edited, deleted and saved as;...
  • Page 22 Click “Insert” to add a new step. Click “Well” to fix the well number, then input the program name, waiting time, mixing time, magnetic time and sample volume. At the end, please click the mixing speed to select the speed. For Auto-Pure 20A, only well location 1, 2 &...
  • Page 23 Click “ ” to enter the extended parameter setting interface, it isn’t necessary to set in normally use, or you can reset if have special requirement. Click “ ” back to the parameter setting interface. Click “Delete” and then click “OK” to delete the last step; or click “Cancel” not to delete the last step.
  • Page 24 Under the “Manage prog.” interface to make selection, Click “Delete” and then click “Ok” to confirm the delete, or “Cancel” to not delete. 6.4 System Setting Click “Settings” and enter into the System Setting surface 6.4.1 System Setting-Instrument Setting Click “Instrument” to input the right password and then enter the setting interface to set the parameter of instrument.
  • Page 25 Remarks ： Regularly, there’s no need to set unless it’s failed and need repair, as instrument has already finished setting before factory dispatch, and even if it’s failed, this kind setting will be authorized by distributor or manufacturer. 6.4.2 System Setting -- System Time Click “Date &...
  • Page 26 6.4.3 System Setting--Language Click “Language Setting” to choose the language that you need. 6.4.4 System Setting -- Fan Click “ Air Ejector Fan” to have the fan setting 6.4.5 System Setting -- Import/Export Click “Import/Export” and insert U disk to finish the step. ─...
  • Page 27 6.4.6 System Setting--Software upgrade Click “Software upgrade” to input the right password enter the interface and then insert the U disk to operation. 6.5 UV sterilization Click “UV sterilization” and input number or click “+” “-”to set time. ─ ─...
  • Page 28 Click “Start” to open the UV light to start UV sterilization and time count down. Click “Stop” to stop the UV sterilization. During sterilization, the UV light will automatically stop when the drawer is open, and it will continue after the drawer is closed. 6.6 Help Click “Help”...

  • Page 29: Chapter 5 Trouble Shooting

    Chapter 5 Trouble Shooting Fault phenomenon Possible Causes Solution Power not connected Check power Switch failure Replace switch No display after switch on Fuse failure Replace fuse （5X20 250V 8A） Others Contact with Distributor Replace light tube No UV light UV light failure Contact with distributor Replace light tube...
  • Page 30 Software fault alarm list Fault type Fault name Displayed symbol Model T1,T2,T3,T4,T5,T6, E011,E021,E031,E041, Auto-Pure 32A T7,T8Overheat E051,E061,E071,E081 T1,T2,T3,T4 Auto-Pure 20A E011,E021,E031,E041 Overheat Auto-Pure 20B T1,T2,T3,T4,T5,T6, E018,E028,E038,E048, Auto-Pure 32A T7,T8Drive circuit fault E058,E068,E078,E088 T1,T2,T3,T4 Auto-Pure 20A E018,E028,E038,E048 Drive circuit fault Auto-Pure 20B T1,T2,T3,T4,T5,T6, E015,E025,E035,E045, Temperature...

  • Page 31: Appendix

    Notes ─ ─...
