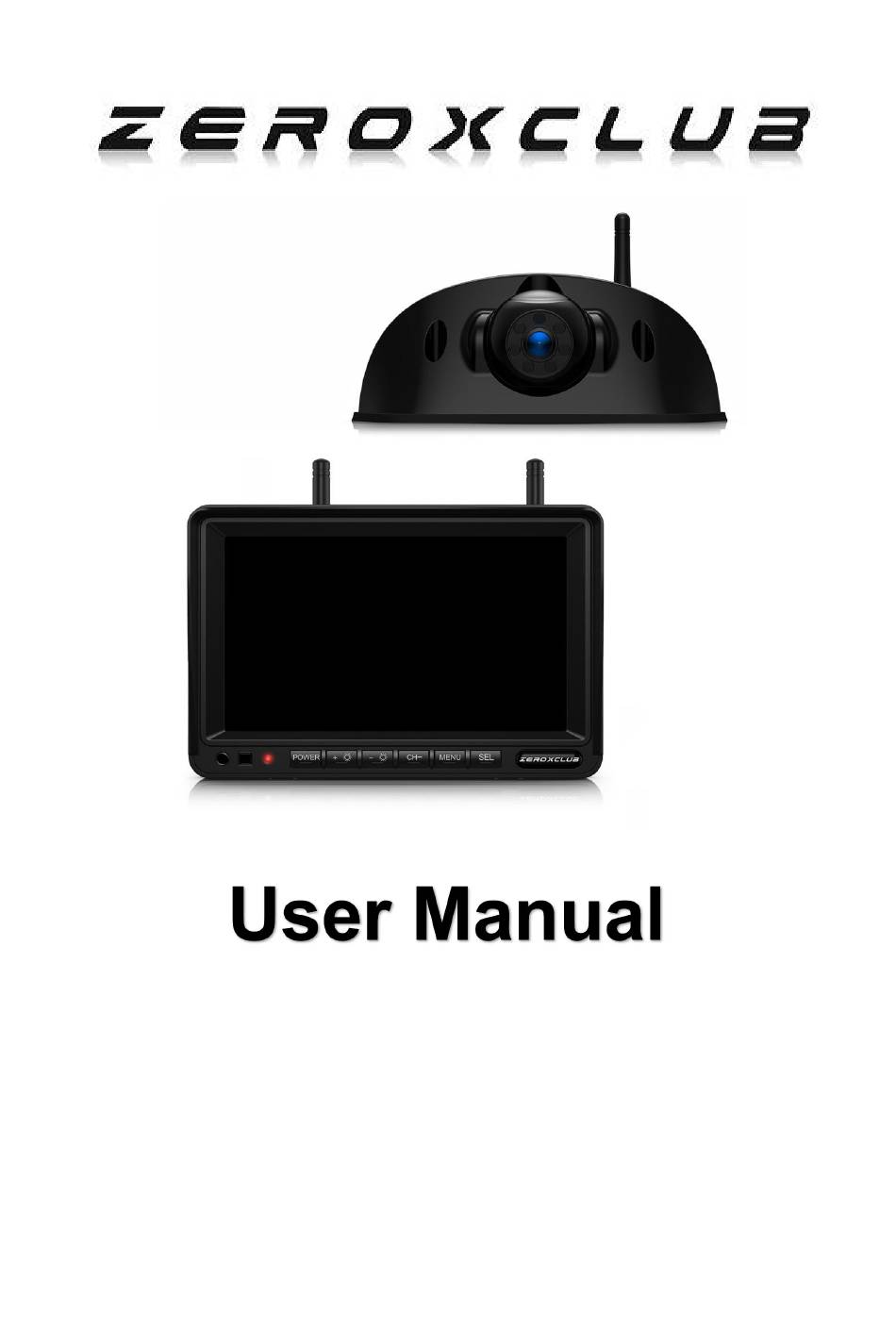

- Page 1 ZEROXCLUB Instructions Manual Wireless Backup Camera System Model: BW7M If you have any further questions regarding our products, please contact us at sales@uszeroxclub.com...
-
Page 2: Table Of Contents
ZEROXCLUB Instructions Manual TABLE OF CONTENTS WARRANTY ..................1 BEFORE USING ................... 2 WHAT IS IN THE BOX ................. 2 SPECIFICATIONS ................3 INSTALLATION ..................3 SAFETY INFORMATION ..............3 SYSTEM TEST GUIDE ..............4 CAMERA INSTALLATION ..............4 DC Power Adapter Connector ............6 T-taps Wire Connector .............. -
Page 3: Warranty
ZEROXCLUB Instructions Manual WARRANTY ZEROXCLUB offers a full 18 months warranty and 3 months replacement policy. We also provide lifetime technical support to ensure that you enjoy your modern backup camera for many years to come. To request warranty service or technical assistance, please CONTACT US immediately at sales@uszeroxclub.com... -
Page 4: Before Using
ZEROXCLUB Instructions Manual BEFORE USING Make sure you have the following items included in the packaging. If any item is damaged or missing, contact us at sales@uszeroxclub.com immediately with your Amazon order number and photos of the issue for priority resolution. -
Page 5: Specifications
Rear Camera Sizes 6.7(L) x 2.8(H) x 2.7(D) in INSTALLATION SAFETY INFORMATION The ZEROXCLUB camera system contains no user-serviceable parts - contact support at sales@uszeroxclub.com for problems. Always supervise children around the device and never test near flames or while smoking. -
Page 6: System Test Guide
ZEROXCLUB Instructions Manual SYSTEM TEST GUIDE Before permanent mounting, verify full functionality: (1) Power the monitor via 12V source (cigarette lighter/portable battery) - check for indicator lights and button response; (2) Power the camera with temporary power (reverse/running lights), Test these features: Video feed (clear image, brightness adjustment);... -
Page 7: Monitor Installation
ZEROXCLUB Instructions Manual (3)Feed the camera power cable (4)Connect the red and black power cord to the camera through the gasket. Fix the connector, and then route the power cable to the gasket and camera to the vehicle vehicle's12/24V running lights/reverse lights. Ensure correct... -
Page 8: Dc Power Adapter Connector
ZEROXCLUB Instructions Manual 2. Installing the antenna vertically, then position the unit on your windshield or dashboard in a location that provides clear viewing without compromising driving visibility or safety. 3. Adjust the bracket to obtain the best viewing angle. -
Page 9: Testing The System
ZEROXCLUB Instructions Manual TESTING THE SYSTEM 1. Turn on your RV: Start the engine and shift into reverse/switch on the running light. The monitor should display the camera feed immediately. 2. Check Functionality: Make sure you are getting a clear image without any distortions. -
Page 10: Change Menu Settings
ZEROXCLUB Instructions Manual The CH- (Channel Switch) button toggles between camera views. ⑨ A Menu/Return button. Use the MENU button to access menu settings or MENU ⑩ return to the previous panel. The SEL button starts/stops recording (press to confirm menu selections;... -
Page 11: Pairing Setting
ZEROXCLUB Instructions Manual NOTICE The menu is disabled in split-screen mode, first switch to single-screen view using the button to access settings. PAIRING Setting Pair with a camera The camera has been paired in the factory for QC testing. If you cannot find the image from the camera on the monitor or you have a standalone camera that is compatible with this system, follow the procedures below for pairing. -
Page 12: Picture Setting
ZEROXCLUB Instructions Manual wires:Find the two main wires: Power wire (usually red or with stripes), Ground wire (usually black)--Switch their positions (what was connected to power now goes to ground, and vice versa) Test it: Reconnect the light your camera should will work. -
Page 13: Mir-Flip Setting
ZEROXCLUB Instructions Manual MIR-FLIP Setting Press MENU→Go into MIR-FLIP→ Press to set the △☼/▽☼ camera image as NORMAL (0°), Mirror (180°), FLIP (Horizontal Mirror) or MIR-FLIP (Vertical Mirror)→ Press to confirm your selection or press MENU to return to the previous page. -
Page 14: Cam-Setup Setting
ZEROXCLUB Instructions Manual Reset switch, TIME, Camera select, P-LINE or LANGUGE setting→Press → Press to adjust the value→ Press △☼/▽☼ MENU confirm or press to exit the setting. Reset switch Erases any custom settings (e.g., brightness adjustments, or AUTOSCAN configurations) and returns the system to its initial state. -
Page 15: Record Setting
ZEROXCLUB Instructions Manual A feature that automatically cycles through the feeds of multiple connected AUTOSCAN cameras and displays them on the monitor in a sequential order, without (which cycles manually switching between cameras. When enabled, the system will display through cameras... -
Page 16: Troubleshooting
ZEROXCLUB Instructions Manual *Manual Recording: Press the SEL button to start recording. *Playback is disabled during recording. To review footage: Press SEL to stop recording, access playback through the menu. *The system automatically creates a new recording file each time you change camera channels. - Page 17 ZEROXCLUB Instructions Manual Monitor does not work 1) Vehicle Power Check: Start the engine (system may not power on in accessory mode). 2) Inspect Power Plug: Ensure the small pin inside the monitor’s power plug isn’t broken. 3) Cigarette Lighter Issues: ①Test the fuse in the adapter. Verify socket outputs 12-24V DC.
-
Page 18: Faqs
ZEROXCLUB Instructions Manual If you have any questions not mentioned above, just feel free to email us at sales@uszeroxclub.com. We're always there for you! FAQS Question Answer The system supports 32G-128G SDHC or SDXC SD What type of SD card should I use? card. - Page 19 ZEROXCLUB Instructions Manual 1) Stop recordings by pressing SEL 2) Go single-screen using CH- 3) Remove the memory card and reboot the system to check for lock-ups. The MENU button can not work For persistent problems, contact us at sales@uszeroxclub.com...
