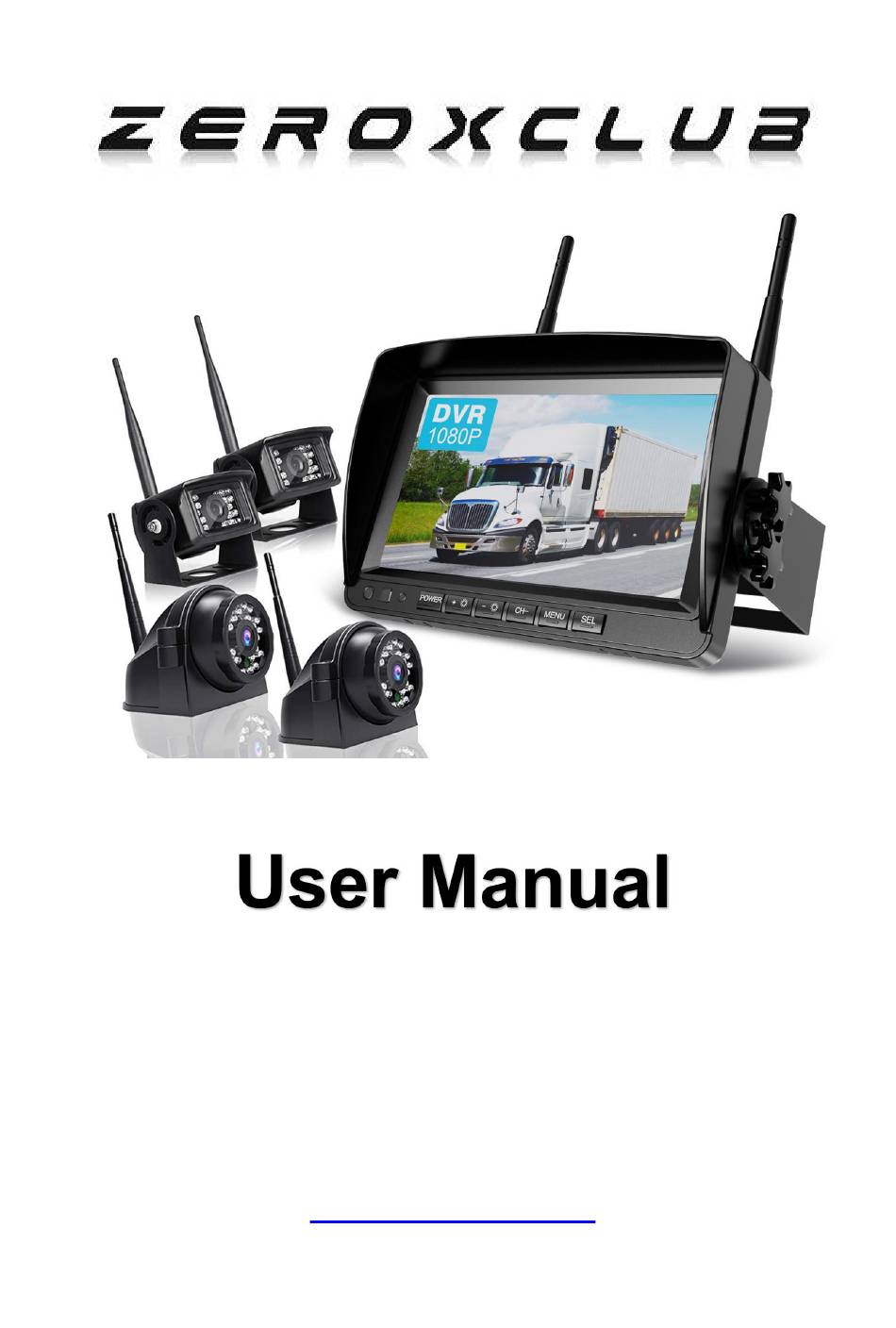

- Page 1 ZEROXCLUB Instructions Manual Wireless Backup Camera System Model: B904-M Any questions or suggestions please send an email to customer service via sales@uszeroxclub.com Visit our website：https://www.uszeroxclub.com...
-
Page 2: Table Of Contents
ZEROXCLUB Instructions Manual TABLE OF CONTENTS TABLE OF CONTENTS ..............1 SAFETY INFORMATION .............. 1 TEST THE SYSTEM FIRST ............1 WARRANTY ..................1 BEFORE USING ................1 WHAT IS IN THE BOX ..............1 SPECIFICATIONS ................. 2 INSTALLATION ................2 Installation of the Camera ............2 Installation of the Monitor ............ -
Page 3: Safety Information
ZEROXCLUB Instructions Manual SAFETY INFORMATION ●There are no user-serviceable parts inside the ZEROXCLUB camera system. Contact ZEROXCLUB customer service at sales@uszeroxclub.com if the part is ever compromised. ● Children should be supervised to ensure that they do not play with the appliance. - Page 4 ZEROXCLUB Instructions Manual within 24h. Our support email is sales@uszeroxclub.com, you can write it down or add it to your address book for easy contact.
-
Page 5: Table Of Contents
ZEROXCLUB Instructions Manual BEFORE USING Make sure your package includes the following listed items completely. If any item is damaged or missing, contact us at sales@uszeroxclub.com. It would be better if you write down the order number from Amazon, include pictures of the damaged or missing part in your email, so that we can handle the problem much more quickly. -
Page 6: Specifications
ZEROXCLUB Instructions Manual SPECIFICATIONS Monitor 9’’ LCD monitor Display Connector Type DC female connector Working Current DC12V 1~2 A Supported Memory 32~128GB Item Weight 0.97 pounds Monitor Dimensions 8.96(L) x5.79 (H) x 1.04(D) in Camera Image Sensor CMOS 1920 x 1080... - Page 7 ZEROXCLUB Instructions Manual Choose a location close to the reversing lights so you can easily splice the power and ground connections. 1.1 Mark camera mounting 1.2 Install the bracket with 1.3 Camera should be position and pre-drill the the supplied screws with...
-
Page 8: Installation Of The Monitor
ZEROXCLUB Instructions Manual Installation of the Monitor U-shaped Bracket Installation Screw the knob bolts, and After adjusting the screen ② ③ ①Put on the sunshade as adjust the angle of the stand to angle, tighten the screws to the blue arrows. -
Page 9: Operating Instruction
ZEROXCLUB Instructions Manual 1. Attach the the monitor with the supplied bracket. 2. Mount the antenna vertically. Apply the monitor on your windshield or dashboard (that does not block your vision) 3. Adjust the bracket to provide the best viewing angle *Choose a monitor location in your vehicle that does not block your view for safe driving. - Page 10 ZEROXCLUB Instructions Manual There is a screen protective film on the screen, it is used to remove it. ④ Red Tag Please be careful to remove it. Power Indicator Light. ⑤ Power Indicator Light Putting the monitor on standby and waking it up.
-
Page 11: Change Menu Settings
ZEROXCLUB Instructions Manual (4) The content displayed on the screen is the content recorded by the system. Change Menu Settings Menu Setting There are eight menu options that allow you to set up the system before operation. NOTICE In split screen mode, the menu cannot be accessed, please press to switch to single screen first. -
Page 12: Pairing Process
ZEROXCLUB Instructions Manual Pairing Process ● Disconnect the camera first. ● Erect antenna on the camera and monitor. ( This step is crucial for establishing a stable wireless connection between the two devices.) ● Connect the monitor to 12 Volt DC power supply. Press select a full channel that needs to be paired. -
Page 13: Mir-Flip Menu
ZEROXCLUB Instructions Manual MIR-FLIP Menu Press MENU→ Enter the MIR-FLIP menu→ Press to set △☼/▽☼ the camera image as NORMAL, MIRROR, FLIP or MIR-FLIP→ MENU Press to confirm your selection or press to return to the previous page. Control camera mirroring and flipping, on a per camera basis. -
Page 14: System Menu
ZEROXCLUB Instructions Manual *The parking guide line need to be controlled individually on each camera screen. *If the P-LINE function is not turned on for other camera channels, the parking guideline will not be displayed. SYSTEM Menu The screen LANGUGE and TIME settings are found in the "SYSTEM"... -
Page 15: Play Menu
The content displayed on the screen is the content recorded by the system. TROUBLESHOOTING Camera won't pair with screen 1) ZEROXCLUB monitor / rear view can only pair with ZEROXCLUB cameras. Pairing with products from other manufacturers is not supported. 2) Ensure the camera is receiving power. - Page 16 ZEROXCLUB Instructions Manual 6) If it still doesn’t pair in the same room, contact our customer service email: sales2@uszeroxclub.com. Monitor won’t turn on (no button light) 1) Check power cord connection at monitor and 12V DC socket. Check that the power supply has 12-24V DC output.
-
Page 17: Faqs
ZEROXCLUB Instructions Manual 2）Memory card issues: If the freezing issue persists for more than 10 seconds, it could be due to memory card movement or poor quality. This can cause the monitor to struggle to read the data from the memory card, leading to freezing or buffering. - Page 18 ZEROXCLUB Instructions Manual camera? environment. Can I add an extra camera? Yes, this system supports up to 4 cameras. How to turn on/off the Parking Guideline? MENU → SYSTEM→ P-LINE→ ON/OFF. It might be caused by the current, please try a stable power supply.
- Page 19 ZEROXCLUB Instructions Manual sales@uszeroxclub.com Customer Support Email:...
