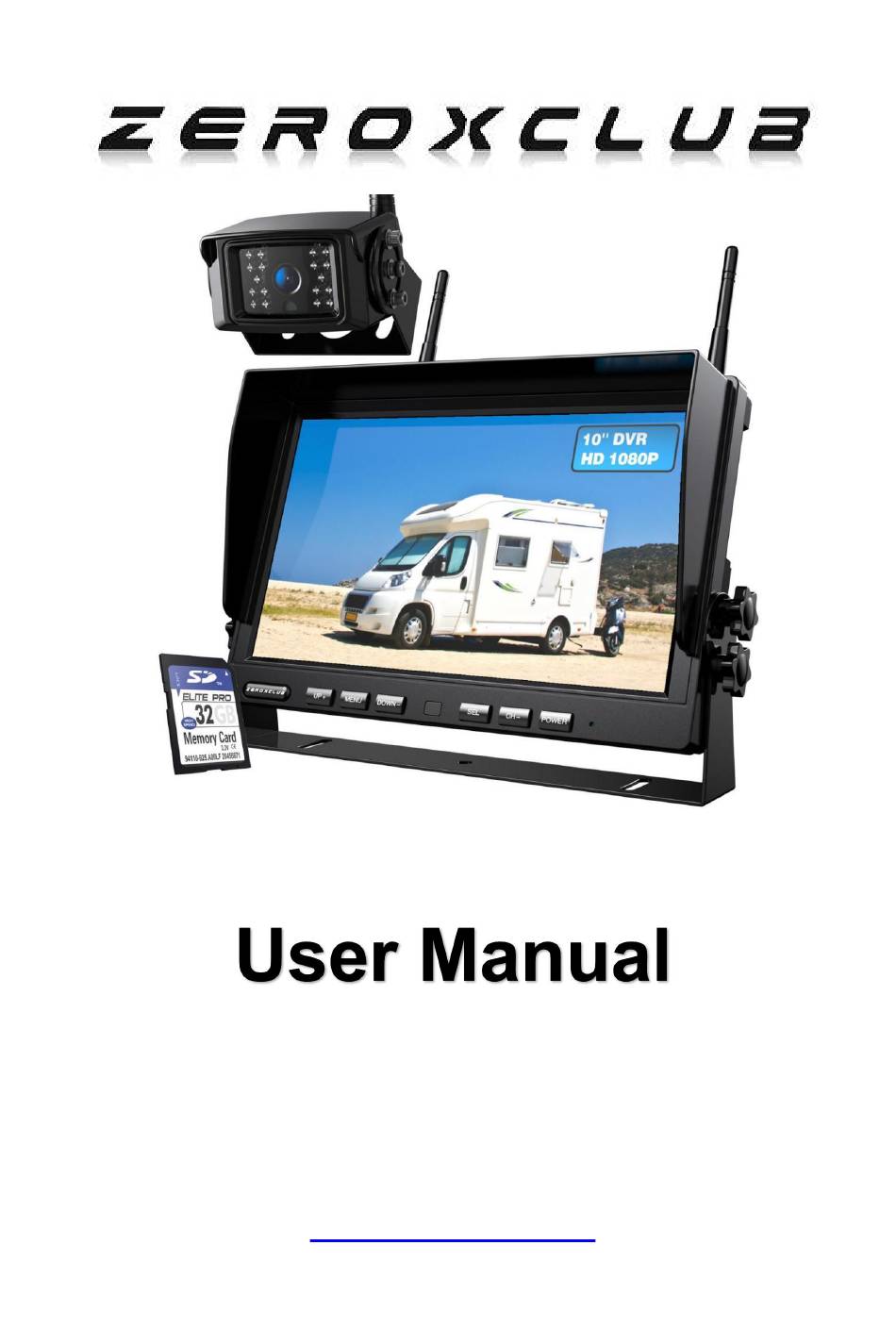

ZEROXCLUB Instructions Manual
*The packing contents may be different based on the kit you purchased. Please take the actual
product as standard
Wireless Backup Camera System
Model: BW101SL-M/BW102SL-M
Any questions or suggestions please send an email to customer service via
Visit our website：https://www.uszeroxclub.com
sales@uszeroxclub.com
Advertisement
Table of Contents
Related Manuals for ZEROXCLUB BW101SL-M
Summary of Contents for ZEROXCLUB BW101SL-M
- Page 1 ZEROXCLUB Instructions Manual *The packing contents may be different based on the kit you purchased. Please take the actual product as standard Wireless Backup Camera System Model: BW101SL-M/BW102SL-M Any questions or suggestions please send an email to customer service via sales@uszeroxclub.com...
-
Page 2: Table Of Contents
ZEROXCLUB Instructions Manual TABLE OF CONTENTS TABLE OF CONTENTS ..............1 SYSTEM TEST GUIDE ..............1 WARRANTY ................. 1 BEFORE USING ................2 WHAT IS IN THE BOX ..............2 SPECIFICATIONS ................2 INSTALL GUIDE ................3 Safety Precautions ..............3 Installation Steps ................ 3 Step 1: Mount the Camera ............3... -
Page 3: Table Of Contents
Note: Permanent installation should only proceed after successful testing. WARRANTY ZEROXCLUB offers a full 18 months warranty and 3 months replacement policy. We also provide lifetime technical support to ensure that you enjoy your modern backup camera for many years to come. -
Page 4: Before Using
ZEROXCLUB Instructions Manual BEFORE USING Verify that your package contains all listed items. If anything is damaged or missing, contact us immediately at sales@uszeroxclub.com with your Amazon order number and photos of the issue for faster resolution. WHAT IS IN THE BOX... -
Page 5: Install Guide
ZEROXCLUB Instructions Manual Image Sensor CMOS Effective Pixels 1920 x 1080 Waterproof Rating IP69K Optical Distortion ≤0.5% Power Consumption 250mA (IR ON) (@DC 12V) >10mA (IR OFF) Operating Temperature -4°F~ 158°F Compatible Display System-equipped display Camera Dimensions 2.95(L) x 1.85(H) x 2.36(D) in Wireless Frequency 2.4G... -
Page 6: Step 2: Power The Camera
ZEROXCLUB Instructions Manual *Recommend to test system with temporary mounting and wiring before final installation. Install the Rear Cameras 1 Begin by marking the desired 2 Then install the bracket with 3 Align the bracket, position the camera mounting position and... - Page 7 ZEROXCLUB Instructions Manual windshield or dashboard in a location that provides clear viewing without compromising driving visibility or safety. 3. Adjust the bracket to obtain the best viewing angle. *Do not allow water to enter the LCD Display U-shaped Bracket Installation...
-
Page 8: Step 4: Power The Monitor
ZEROXCLUB Instructions Manual Step 4: Power the Monitor Power via cigarette lighter (plug-and-play) or hardwired to fuse box (for permanent power) Mount the antennas to ② Connect the power cord or Power the monitor ① ③ the monitor car charger to the monitor... - Page 9 ZEROXCLUB Instructions Manual It means the strength of the signal between the camera and the monitor. ① CAM 1/2/3/4: The channel number is shown on the top left of the screen. CAM1 ② Press the CH- button to switch the camera channel.
-
Page 10: Change Menu Settings
ZEROXCLUB Instructions Manual (1) Menu main panel won’t bring up while monitoring in split-screen mode. Please press the button to switch it to single screen before using the MENU button to enter the menu panel. Otherwise MENU button won’t work. -
Page 11: Picture Settings
ZEROXCLUB Instructions Manual 3. Connect monitor to 12V DC power source. Press AV to select an available full channel (menu functions require full-screen mode) 4. Press MENU → select PAIRING icon (20-second countdown begins) 5. During countdown, power on the camera（*Camera must be powered after pairing countdown starts）... -
Page 12: Mode Settings
ZEROXCLUB Instructions Manual MIR-FLIP Settings Press MENU→ UP+/DOWN- Enter the MIR-FLIP menu→ Press set the camera image as NORMAL, MIRROR, FLIP or MIR-FLIP→ MENU Press to confirm your selection or press to return to the previous page. Control camera mirroring and flipping, on a per camera basis. -
Page 13: System Settings
ZEROXCLUB Instructions Manual *The parking guide line need to be controlled individually on each camera screen. *If the P-LINE function is not turned on for other camera channels, the parking guideline will not be displayed. SYSTEM Settings The screen LANGUGE and TIME settings are found in the "SYSTEM"... -
Page 14: Play Settings
ZEROXCLUB Instructions Manual formatting will be always happening. Copy out the useful recording material first to avoid losing important videos before formatting. NOTICE Recording can only record what is on the screen, not all cameras unless in split screen mode. - Page 15 ZEROXCLUB Instructions Manual video of pairing attempt. Monitor Won’t Turn On (No Button Light) 1) Inspect wiring for pinched/damaged cables/corroded connectors. Test the power supply (should show 12V+ DC output). Check for voltage drops during startup. 2) Test with alternative power sources - either a portable 12V battery or another vehicle's 12V socket - to eliminate power supply as a potential issue.
-
Page 16: Faqs
ZEROXCLUB Instructions Manual ②Power off and reseat memory card firmly. Test with alternative SD card. Format card in the device (backup data first). Test with memory card removed (if possible) to isolate issue. ③Try resetting monitor to factory settings. If issues persist: Please contact us at sales@uszeroxclub.com... - Page 17 ZEROXCLUB Instructions Manual How to turn on the night vision of the It will be automatically turned on in the dark camera? environment. Can I add an extra camera? Yes, this system supports up to 4 cameras. How to turn on/off the Parking Guideline? MENU →...
- Page 18 ZEROXCLUB Instructions Manual sales@uszeroxclub.com Customer Support Email:...
