Summary of Contents for ZEROXCLUB BW7

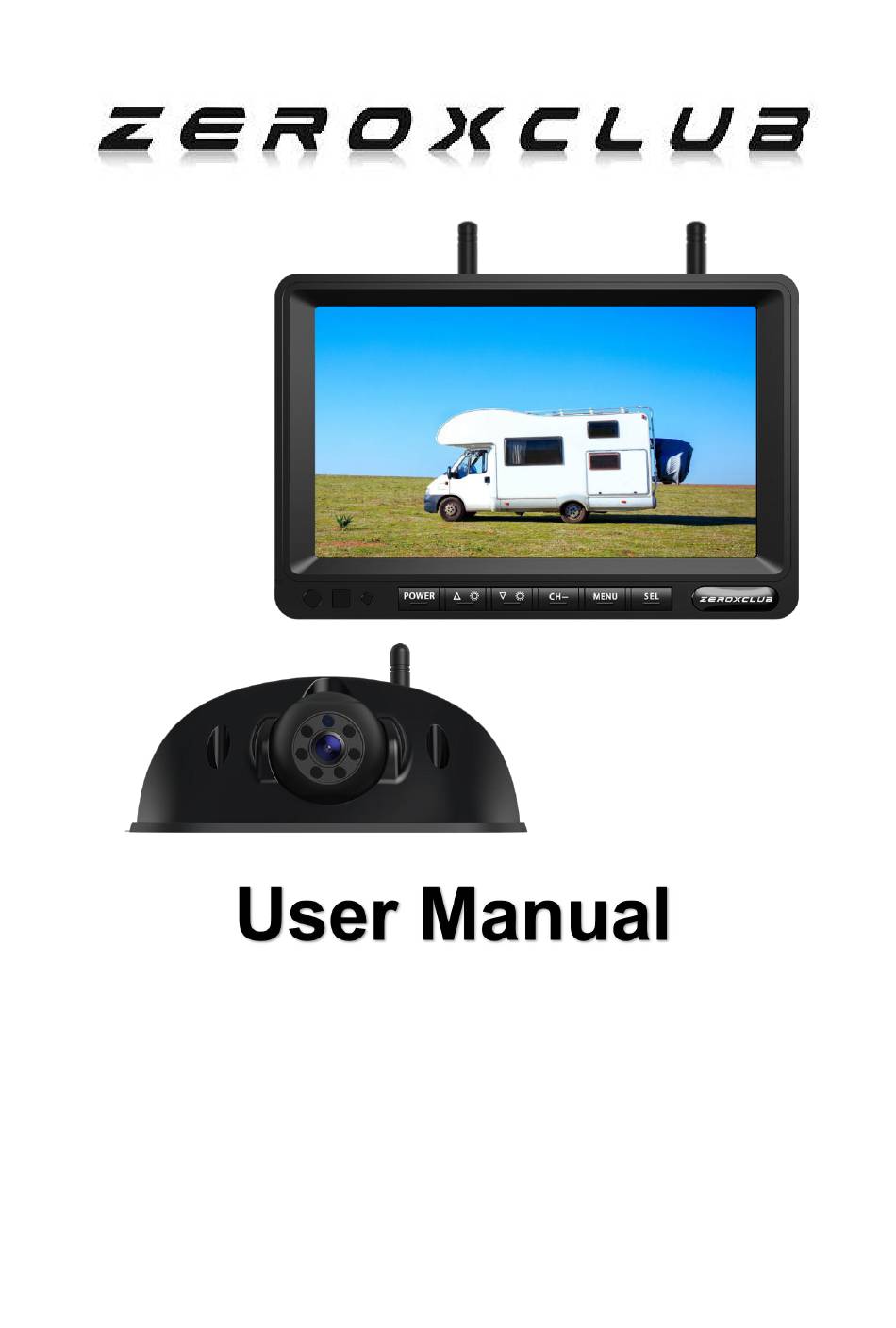

- Page 1 ZEROXCLUB Instructions Manual Wireless Backup Camera System Model: BW7 Any questions or suggestions please send an email to customer service via sales@uszeroxclub.com...
-
Page 2: Table Of Contents
ZEROXCLUB Instructions Manual TABLE OF CONTENTS SAFETY INFORMATION ..............1 TEST THE SYSTEM FIRST .............1 WARRANTY ..................1 BEFORE USING ................3 WAHT IS IN THE BOX ..............3 SPECIFICATIONS ................4 INSTALLATION ................4 Installation of the Camera ............4 Installation of the Monitor ............5 U-shaped Bracket Installation .............5... -
Page 3: Safety Information
ZEROXCLUB Instructions Manual SAFETY INFORMATION ●There are no user-serviceable parts inside the ZEROXCLUB camera system. Contact ZEROXCLUB customer service at sales@uszeroxclub.com if the part is ever compromised. ● Children should be supervised to ensure that they do not play with the appliance. - Page 4 ZEROXCLUB Instructions Manual within 24h. Our support email is sales@uszeroxclub.com, you can write it down or add it to your address book for easy contact.
-
Page 5: Before Using
ZEROXCLUB Instructions Manual BEFORE USING Make sure your package includes the following listed items completely. If any item is damaged or missing, contact us at sales@uszeroxclub.com. It would be better if you write down the order number from Amazon, include pictures of the damaged or missing part in your email, so that we can handle the problem much more quickly. -
Page 6: Specifications
ZEROXCLUB Instructions Manual SPECIFICATIONS Monitor 7’’ IPS monitor Display Connector Type DC female connector Item Weight 0.69 pounds Power Supply DC 12V~24V 230mA Monitor Dimensions 7(L) x 4.5(H) x 0.8(D) in Camera Image Sensor CMOS 1920 x 1080 Effective Pixels... -
Page 7: Installation Of The Monitor
ZEROXCLUB Instructions Manual 2、Installation for Vehicles without Furrion pre-wired mount (1) Install an antenna on (2) Drill five holes on your vehicle for mounting the camera. camera. (If you already have five same holes on (The bottom of the antenna is your vehicle, you don’t need to do this.) - Page 8 ZEROXCLUB Instructions Manual side, and make sure the blue dotted lines shows the screen angle. convex side down Suction Cup Bracket Installation *When choosing a location to mount the monitor, make sure the monitor is in an area that will not obstruct your vision while driving.
-
Page 9: Dc Power Adapter Connector
ZEROXCLUB Instructions Manual DC Power Adapter Connector DC Power Male Female Plug Jack Adapter Connector Socket for 5.5*2.5mm Male Connector. It can withstand the 12V- 24V voltage. It is cortical plastic materials. Green glue stick marked clearly positive and negative mark is avoid reverse. - Page 10 ZEROXCLUB Instructions Manual CAM 1/2/3/4: The channel number is shown on the top left of the screen. ① Press the CH- button to switch the camera channel. The icon will shown in the top left of the screen while recording video. If ②...
-
Page 11: Settings Operation
ZEROXCLUB Instructions Manual (4) The content displayed on the screen is the content recorded by the system. (5) The MENU button cannot be operated to access the menu panel if it is recording. Please press first to stop recording. (6) If everything is backwards, press and hold the button a few seconds △☼... -
Page 12: Pairing Steps
ZEROXCLUB Instructions Manual b. Please make sure that the camera's view has been opened via Menu--CAM-SETUP. c. This is easiest done with the camera and monitor close to each other, as you have a limited time to pair the screen and camera together. -
Page 13: Mir-Flip Operation
ZEROXCLUB Instructions Manual The screen BRIGHTNESS/ CONTRAST/ HUE/VOLUME settings are found in the “PICTURE” section and adjust the slider to the desired level. Press MENU→Go into PICTURE→Press SEL→Press △☼/▽☼ select BRIGHTNESS/CONTRAST/HUE→Press → to adjust the value. △☼/▽☼ MENU After all settings are done, press to return to previous panel, press it again to exit the menu. -
Page 14: Cam-Setup Operation
ZEROXCLUB Instructions Manual Press MENU→Go into MODE →SEL→ Press to select △☼/▽☼ the split mode you want. MENU *After all settings are done, press to return to previous panel, press it again to exit the menu. *Make sure the channel you want to display is turned on in CAM-SETUP before setting. -
Page 15: Play Operation
ZEROXCLUB Instructions Manual After all settings are done, press MENU to return to previous panel, press it again to exit the menu. When this option is "ON", the monitor will automatically increase AUTO-DIM the brightness when there is low light. Or you can set this option to "OFF". -
Page 16: Troubleshooting
2) Check the connection on your pre-wired setup (Most Furrion pre-wire circuits are tied to the running lights/headlights of the RV. You MUST have those ON when installing/testing the BW7 camera or it's NOT going to work. ) 3) Make sure you are hooked up to the trailer and lights on. - Page 17 ZEROXCLUB Instructions Manual to the sheet metal will weaken the transmission signal. 4) If it disconnects sometimes but comes back on, please spraying contact cleaner on antenna connection on camera. 5) Look at the camera/monitor to find if the antenna is off. Check if the antenna screw connector on the camera/monitor is loose.
-
Page 18: Faqs
ZEROXCLUB Instructions Manual sales2@uszeroxclub.com Please contact our customer service email: with your Amazon order The display freezing 1) Restart the screen 2) Remove SD card out of the monitor screen and reformat before you put back in monitor. If it still can't work well after try, please contact us in time at sales@uszeroxclub.com with the video of the issue and your Amazon Order ID, we will help you fix it. - Page 19 ZEROXCLUB Instructions Manual 1) The positive and negative connections are The monitor/camera emits smoke after reversed and cause a short circuit. Check if the connection polarity on your vehicle body itself is reversed. Make sure the camera's positive side and negative side to coincide with the vehicle body's positive side and negative side.
