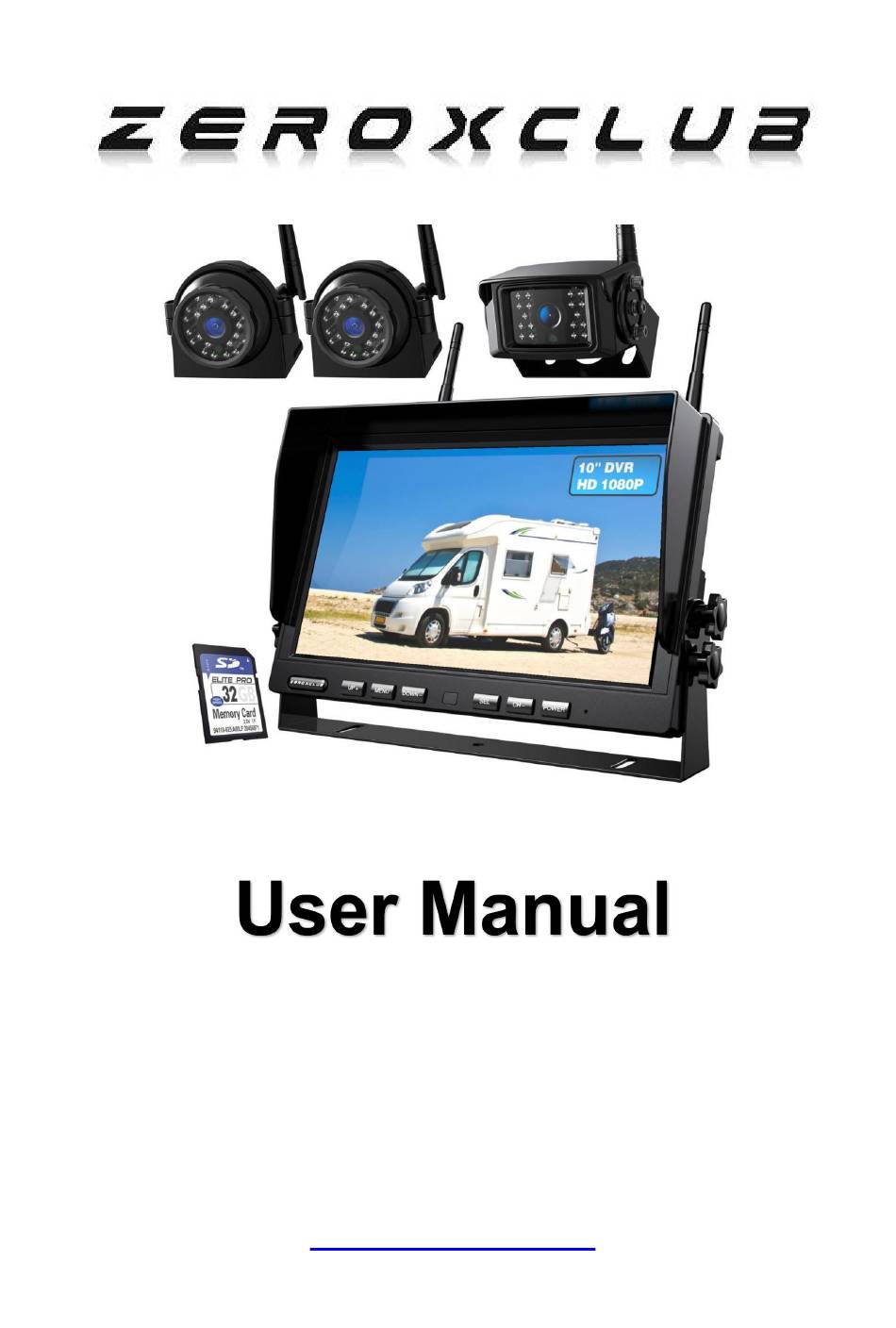

ZEROXCLUB Instructions Manual
*The packing contents may be different based on the kit you purchased. Please take the actual
product as standard
Wireless Backup Camera System
Model: BW103SL-M/BW104SL-M
Any questions or suggestions please send an email to customer service via
sales@uszeroxclub.com
Visit our website：https://www.uszeroxclub.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ZEROXCLUB BW103SL-M
Summary of Contents for ZEROXCLUB BW103SL-M
- Page 1 ZEROXCLUB Instructions Manual *The packing contents may be different based on the kit you purchased. Please take the actual product as standard Wireless Backup Camera System Model: BW103SL-M/BW104SL-M Any questions or suggestions please send an email to customer service via sales@uszeroxclub.com...
-
Page 2: Table Of Contents
ZEROXCLUB Instructions Manual TABLE OF CONTENTS TABLE OF CONTENTS ..............1 SYSTEM TEST GUIDE ..............2 WARRANTY ................. 2 BEFORE USING ................3 WHAT IS IN THE BOX ..............3 SPECIFICATIONS ................4 INSTALL GUIDE ................4 Safety Precautions ..............4 Installation Steps ................ 5 Step 1: Mount the Camera ............5... -
Page 3: System Test Guide
Note: Permanent installation should only proceed after successful testing. WARRANTY ZEROXCLUB offers a full 18 months warranty and 3 months replacement policy. We also provide lifetime technical support to ensure that you enjoy your modern backup camera for many years to come. -
Page 4: Before Using
ZEROXCLUB Instructions Manual BEFORE USING Make sure your package includes the following listed items completely. If any item is damaged or missing, contact us at sales@uszeroxclub.com. It would be better if you write down the order number from Amazon, include pictures of the damaged or missing part in your email, so that we can handle the problem much more quickly. -
Page 5: Specifications
ZEROXCLUB Instructions Manual SPECIFICATIONS Monitor Display 10’’ LCD monitor Connector Type DC female connector Working Current DC12V 1~2A Supported Memory 32~128GB Item Weight 1.26 pounds Monitor Dimensions 10(L) x 6.42(H) x 0.94(D) in Camera Image Sensor CMOS Effective Pixels 1920 x 1080... -
Page 6: Installation Steps
ZEROXCLUB Instructions Manual Red = Positive.Black=Negative. • Excessive heat can be caused by a loose connection. Installation Steps Step 1: Mount the Camera Choose a location: Choose a location close to the reversing lights/side lights/running lights so you can easily splice the power and ground connections or where you want to install. -
Page 7: Step 2: Power The Camera
ZEROXCLUB Instructions Manual Step 2: Power the Camera To properly install the backup camera, first use a voltage meter to identify the positive and negative wires in your vehicle's light circuit by testing for 12V DC power - the wire showing positive voltage when the reverse gear is engaged is your positive lead. -
Page 8: Step 4: Power The Monitor
ZEROXCLUB Instructions Manual screen. the stand to the screen. secure it. Fan-shaped Bracket Installation Step 4: Power the Monitor Power via cigarette lighter (plug-and-play) or hardwired to fuse box (for permanent power) Mount the antennas to ② Connect the power cord or Power the monitor ①... -
Page 9: Step 5: Test & Adjust
ZEROXCLUB Instructions Manual Use Car Charger Use Power Cord Step 5: Test & Adjust Activate the cameras. Adjust angles to show clear rear/side views. Keep the road centered (minimize sky/ground). Eliminate blind spots. OPERATING INSTRUCTION Monitor Buttons and Icons It means the strength of the signal between the camera and the monitor. -
Page 10: Change Menu Settings
ZEROXCLUB Instructions Manual ● While viewing the non-menu panel, press the DOWN- button once to display guidelines and activate H adjustment mode, pressing multiple times moves guidelines up/down; press twice to switch to Width (W) mode for adjusting guideline spacing with presses;... -
Page 11: Menu Settings
ZEROXCLUB Instructions Manual Menu Settings There are eight menu options that allow you to set up the system before operation. NOTICE In split screen mode, the menu cannot be accessed, please press to switch to single screen first. PAIRING Settings Pairing Procedure a. -
Page 12: Picture Settings
ZEROXCLUB Instructions Manual 5. During countdown, power on the camera（*Camera must be powered after pairing countdown starts） 6. Live view will appear automatically upon successful pairing 7. Repeat process for additional camera(s) Pairing Notes: (1) If Pairing Fails: Repeat the pairing steps exactly as outlined. If unsuccessful sales@uszeroxclub.com... -
Page 13: Mode Settings
ZEROXCLUB Instructions Manual Control camera mirroring and flipping, on a per camera basis. MODE Settings To select the camera layout pattern for 2-channel display 、 3-channel display or 4-channel display. Press MENU→Go into MODE →Press SEL→ Press UP+/DOWN- to choose the split-screen mode you want → Press... -
Page 14: Record Settings
ZEROXCLUB Instructions Manual Press MENU→Go into SYSTEM→ Press to highlight the UP+/DOWN- LANGUAGE or TIME icon red→ Press to adjust the MENU values→ Press to confirm your selection or press return to the previous page. RECORD Settings Memory card settings: REWRITE, FORMAT. -
Page 15: Troubleshooting
ZEROXCLUB Instructions Manual Press MENU→Go into PLAY→ Press UP+/DOWN- to choose the Recording Files→ Press to confirm and then press again MENU pause or play→ press to return to the previous page. This panel cannot be accessed if an memory card is not mounted. - Page 16 ZEROXCLUB Instructions Manual lighter or the monitor itself. 4) Disconnect power for 2 minutes. Reconnect and power cycle 3 times. Check for any indicator lights. If the screen remains blank after these steps, please contact us at sales@uszeroxclub.com and provide your Amazon Order ID for further assistance.
-
Page 17: Faqs
ZEROXCLUB Instructions Manual 2) Verify installation isn't near bright light sources. Test in complete darkness to confirm functionality. Note: This is normal operation, not a malfunction 3) Camera too close to marker lights (minimum 2" required). Reposition camera following these steps: Measure current distance, relocate if under 2 inches and secure in new position. - Page 18 ZEROXCLUB Instructions Manual 1) Try pressing SEL to exit recording mode, then switch to single-screen view using CH- to verify button functionality. 2) Remove the memory card and reboot the system The MENU button can not work to check for lockups.
