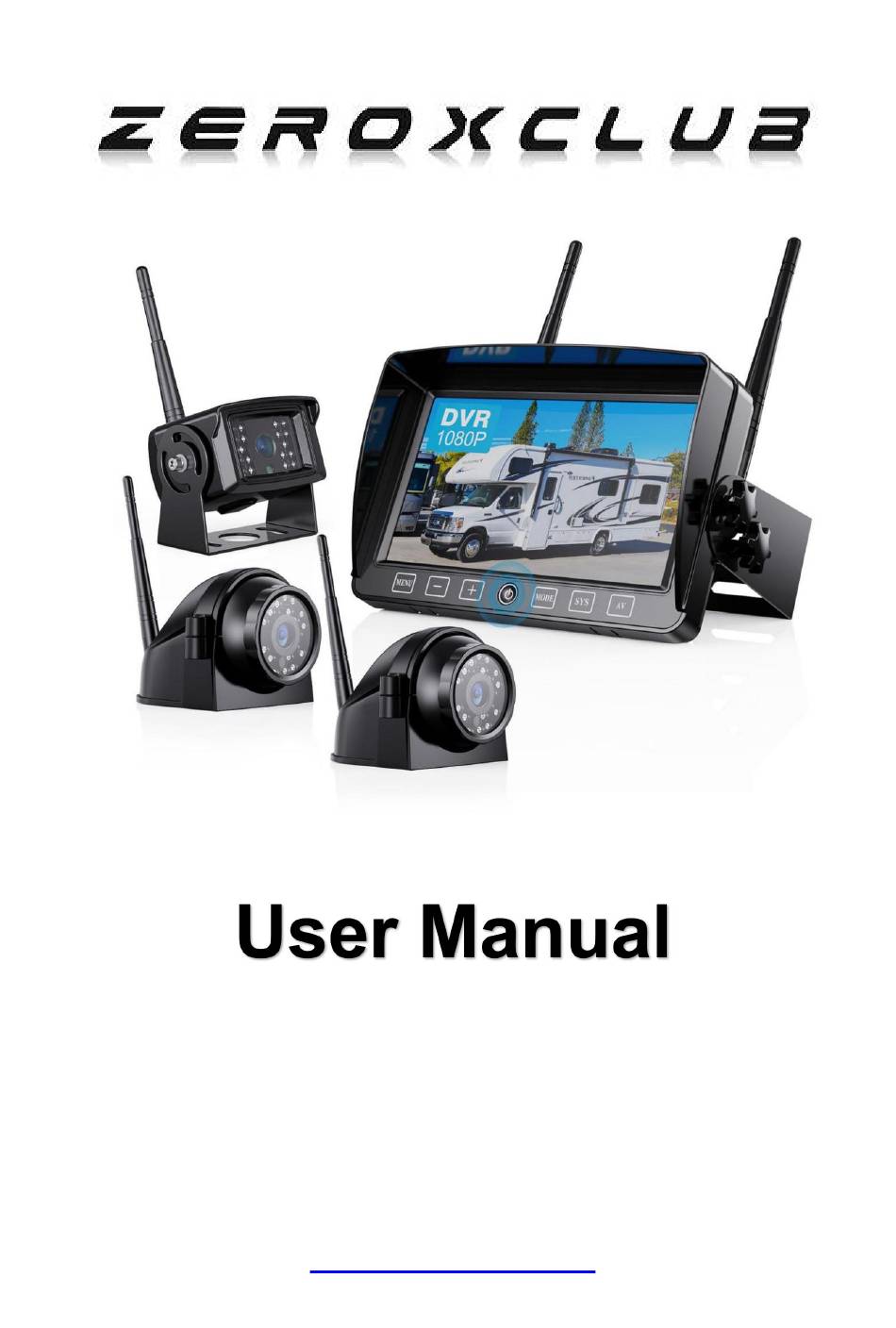

ZEROXCLUB Instructions Manual
*The packing contents may be different based on the kit you purchased. Please take the actual
product as standard.
Wireless Backup Camera System
Model: B3C-M/B4C-M
Any questions or suggestions please send an email to customer service via
sales@uszeroxclub.com
Visit our website：https://www.uszeroxclub.com
Advertisement
Table of Contents
Related Manuals for ZEROXCLUB B3C-M
Summary of Contents for ZEROXCLUB B3C-M
- Page 1 ZEROXCLUB Instructions Manual *The packing contents may be different based on the kit you purchased. Please take the actual product as standard. Wireless Backup Camera System Model: B3C-M/B4C-M Any questions or suggestions please send an email to customer service via sales@uszeroxclub.com...
-
Page 2: Table Of Contents
ZEROXCLUB Instructions Manual TABLE OF CONTENTS TABLE OF CONTENTS ............... 1 SYSTEM TEST GUIDE ................ 1 WARRANTY ..................1 BEFORE USING ................... 2 WHAT IS IN THE BOX ................. 2 SPECIFICATIONS ................3 INSTALL GUIDE ................... 3 Safety Precautions ................3 Installation Steps ...................4... -
Page 3: Table Of Contents
Note: Permanent installation should only proceed after successful testing. WARRANTY ZEROXCLUB offers a full 18 months warranty and 3 months replacement policy. We also provide lifetime technical support to ensure that you enjoy your modern backup camera for many years to come. -
Page 4: Before Using
ZEROXCLUB Instructions Manual BEFORE USING Make sure your package includes the following listed items completely. If any item is damaged or missing, contact us at sales@uszeroxclub.com. It would be better if you write down the order number from Amazon, include pictures of the damaged or missing part in your email, so that we can handle the problem much more quickly. -
Page 5: Specifications
ZEROXCLUB Instructions Manual SPECIFICATIONS Monitor Display 7’’ LCD monitor Connector Type DC female connector Working Current DC12V 1~2A Item Weight 0.66 pounds Monitor Dimensions 7.13(L) x 4.67(H) x 1(D) in Camera Image Sensor CMOS Effective Pixels 1920 x 1080 Waterproof Rating... -
Page 6: Installation Steps
ZEROXCLUB Instructions Manual Installation Steps Step 1: Mount the Camera Choose a location: Choose a location close to the reversing lights/side lights/running lights so you can easily splice the power and ground connections or where you want to install. Secure the camera using included brackets/screws. -
Page 7: Step 2: Power The Camera
ZEROXCLUB Instructions Manual Step 2: Power the Camera To properly install the backup camera, first use a voltage meter to identify the positive and negative wires in your vehicle's light circuit by testing for 12V DC power - the wire showing positive voltage when the reverse gear is engaged is your positive lead. -
Page 8: Step 4: Power The Monitor
ZEROXCLUB Instructions Manual Suction Cup Mount Installation Step 4: Power the Monitor Power via cigarette lighter (plug-and-play) or hardwired to fuse box (for permanent power) Mount the antennas to ② Connect the power cord or Power the monitor ①... - Page 9 ZEROXCLUB Instructions Manual ① MENU Press to show menu or return to the previous menu. ● A Function Decrease button. Select backward in menu operation. ② － ● While viewing the non-menu panel, press the '－' button once to display guidelines and activate H adjustment mode, pressing '＋' multiple times moves guidelines up/down;...
-
Page 10: Change Menu Settings
ZEROXCLUB Instructions Manual (1) The main menu cannot be accessed during split-screen monitoring. To enter the menu panel, press AV to switch to single-screen mode, then press MENU (button is disabled in split-screen view) (2) The POWER button is non-functional during video file playback (3) The system automatically begins recording a new file when switching channels (4) The content displayed on the screen is the recorded footage. -
Page 11: Picture Settings
ZEROXCLUB Instructions Manual Pair with a camera 1. Mount antennas securely on both camera(s) and monitor (critical for stable wireless connection) 2. Disconnect camera power completely 3. Connect monitor to 12V DC power source. Press AV to select an available full channel (menu functions require full-screen mode) 4. -
Page 12: Mir-Flip Settings
ZEROXCLUB Instructions Manual MIR-FLIP Settings To modify the display orientation: Press MENU→ Enter the MIR-FLIP menu→ Press to set the ＋/－ camera image as NORMAL, MIRROR, FLIP or MIR-FLIP→ Press MODE MENU to confirm your selection or press to return to the previous page. -
Page 13: System Settings
ZEROXCLUB Instructions Manual Turn on/off the parking guidelines. P-LINE Press MENU→ Go into → Press MODE to highlight the MODE P-LINE icon red→ Press to ON or OFF→ Press ＋/－ MENU confirm your selection or press to return to the previous page. -
Page 14: Play Settings
ZEROXCLUB Instructions Manual MODE MENU Press to confirm your selection or press to return to the previous page. It will automatically overwrite the previous videos when the REWRITE memory card is full. If you turn on it, please remember to save the video file in time if you need it to avoid it being overwritten. -
Page 15: Troubleshooting
ZEROXCLUB Instructions Manual TROUBLESHOOTING Camera Pairing Issues 1) Ensure the camera is receiving power. 2) Verify all wiring connections are secure and properly attached. Loose or incorrect wiring may cause image transmission issues. 3) Check that the camera power lead is connected correctly (polarity matters). - Page 16 ZEROXCLUB Instructions Manual 3) Please contact our customer service email: sales2@uszeroxclub.com with your Amazon order ID and the picture of problem. Freezing 1) Temporary Interference (Under 3 Seconds): Brief freezing may be caused by temporary interference from: Weather conditions/Vehicle materials/External signal sources/Physical obstacles.
-
Page 17: Faqs
ZEROXCLUB Instructions Manual If you have any questions not mentioned above, just feel free to email us at sales@uszeroxclub.com. We're always there for you! FAQS Question Answer What type of memory card should I use? The system supports 32G-128G memory card. - Page 18 ZEROXCLUB Instructions Manual installation guide carefully before installation. 2) The voltage and current are too high. How to start recording a video? Press the MODE button in the non-menu panel. How to check if the camera unit is receiving power?
