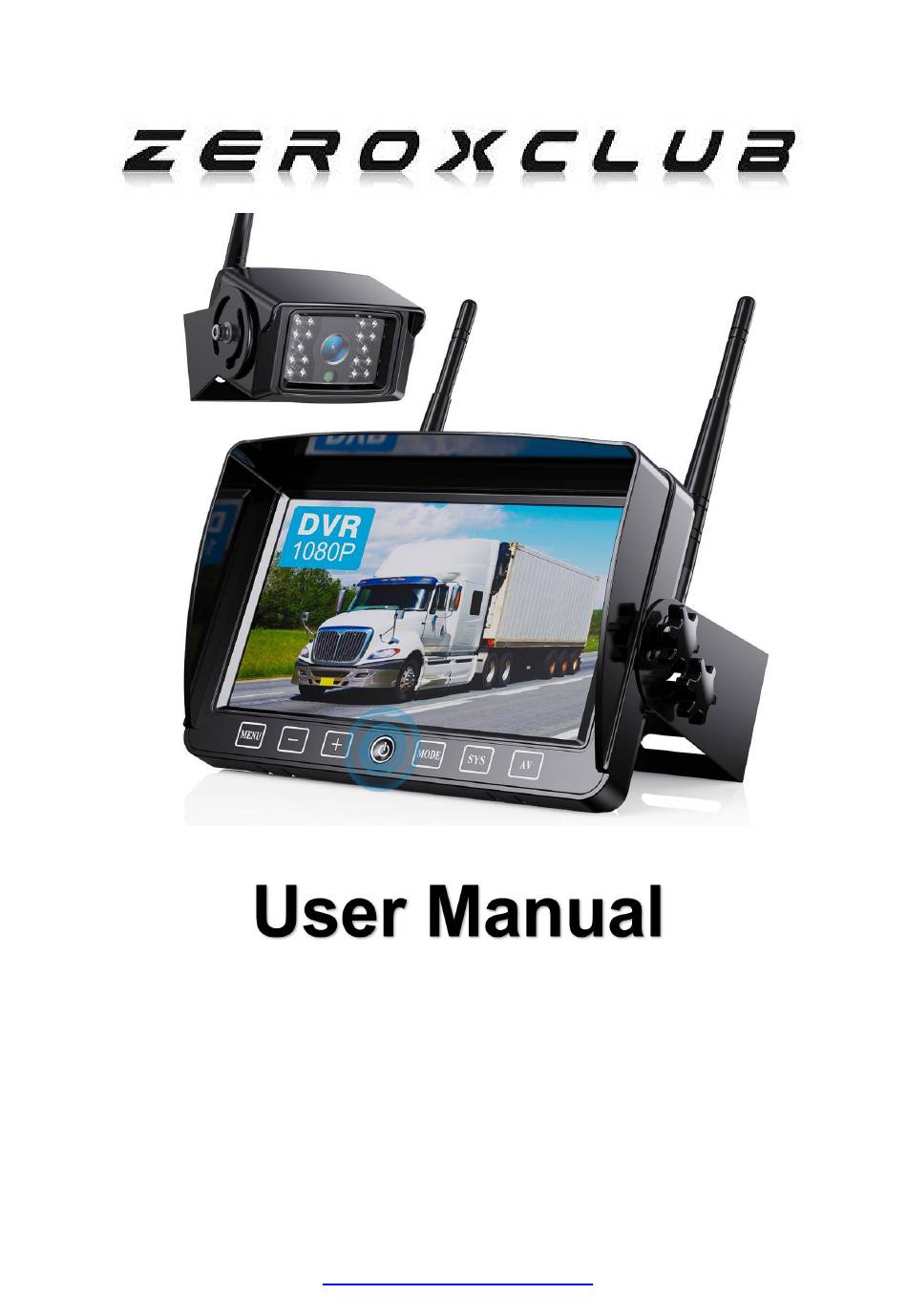

- Page 1 ZEROXCLUB Instructions Manual Wireless Backup Camera System Model: BW702-M (HD-D) Any questions or suggestions please send an email to customer service via sales@uszeroxclub.com Visit our website：https://www.uszeroxclub.com...
-
Page 2: Table Of Contents
ZEROXCLUB Instructions Manual TABLE OF CONTENTS TABLE OF CONTENTS ............... 1 SYSTEM TEST GUIDE ................ 1 WARRANTY ..................1 BEFORE USING ................... 2 WHAT IS IN THE BOX ................. 2 SPECIFICATIONS ................3 INSTALL GUIDE ................... 3 Safety Precautions ................3 Installation Steps ...................4... -
Page 3: Table Of Contents
Note: Permanent installation should only proceed after successful testing. WARRANTY ZEROXCLUB offers a full 18 months warranty and 3 months replacement policy. We also provide lifetime technical support to ensure that you enjoy your modern backup camera for many years to come. -
Page 4: Before Using
ZEROXCLUB Instructions Manual BEFORE USING Make sure your package includes the following listed items completely. If any item is damaged or missing, contact us at sales@uszeroxclub.com. It would be better if you write down the order number from Amazon, include pictures of the damaged or missing part in your email, so that we can handle the problem much more quickly. -
Page 5: Specifications
ZEROXCLUB Instructions Manual SPECIFICATIONS Monitor Display 7’’ LCD monitor Connector Type DC female connector Working Current DC12V 1~2A Item Weight 0.66 pounds Monitor Dimensions 7.13(L) x 4.67(H) x 1(D) in Camera Image Sensor CMOS Effective Pixels 1920 x 1080 Waterproof Rating... -
Page 6: Installation Steps
ZEROXCLUB Instructions Manual Installation Steps Step 1: Mount the Camera Choose a location: Choose a location close to the reversing lights/running lights so you can easily splice the power and ground connections or where you want to install. Secure the camera using included brackets/screws. -
Page 7: Step 3: Install The Monitor
ZEROXCLUB Instructions Manual Use Power Cord Step 3: Install the Monitor 1. Begin by assembling the monitor to its mounting bracket 2. Installing the antenna vertically, then position the unit on your windshield or dashboard in a location that provides clear viewing without compromising driving visibility or safety. -
Page 8: Step 5: Test & Adjust
ZEROXCLUB Instructions Manual Mount the antennas to Power the monitor ② Connect the power cord or ① ③ the monitor car charger to the monitor Use Car Charger Use Power Cord Step 5: Test & Adjust Activate the cameras. Adjust angles to show clear rear view. Keep the road centered (minimize sky/ground) Tip: For best results, adjust during daylight and recheck at night. -
Page 9: Change Menu Settings
ZEROXCLUB Instructions Manual A Function Increase button. Select forward in menu operation ③ ＋ ④ POEWR Putting the monitor on standby and waking it up. ⑤ MODE A Confirm/Recording button. Press to star/stop recording. Or press this button to confirm. -
Page 10: Pairing Settings
ZEROXCLUB Instructions Manual NOTICE In split screen mode, the menu cannot be accessed, please press to switch to single screen first. PAIRING Settings Pairing Procedure a. The cameras are factory-paired for QC testing. b. If you cannot see video from a camera on your monitor ("NO SIGNAL"... -
Page 11: Picture Settings
ZEROXCLUB Instructions Manual 7. Repeat process for additional camera(s) Pairing Notes: (1) If Pairing Fails: Repeat the pairing steps exactly as outlined. If unsuccessful sales@uszeroxclub.com after 2 attempts, contact for immediate assistance. (2) Timing is Critical: Complete pairing within 20 seconds of entering pairing mode. -
Page 12: Mode Settings
ZEROXCLUB Instructions Manual Control camera mirroring and flipping, on a per camera basis. MODE Settings To configure multi-camera display layouts: Press MENU→Go into MODE →Press MODE→ Press ＋ － choose the split-screen mode you want → Press MODE to confirm... -
Page 13: Record Settings
ZEROXCLUB Instructions Manual Press MENU→Go into SYSTEM→ Press MODE to highlight the LANGUAGE or TIME icon red→ Press to adjust the ＋/－ MODE MENU values→ Press to confirm your selection or press return to the previous page. RECORD Settings Memory card settings: REWRITE, FORMAT. -
Page 14: Troubleshooting
ZEROXCLUB Instructions Manual Press MENU→Go into PLAY→ Press ＋ / － to choose the Recording Files→ Press MODE to confirm and then press MODE MENU again pause/play→ press to return to the previous page. This panel cannot be accessed if an memory card is not mounted. - Page 15 ZEROXCLUB Instructions Manual lighter or the monitor itself. 4) Disconnect power for 2 minutes. Reconnect and power cycle 3 times. Check for any indicator lights. If the screen remains blank after these steps, please contact us at sales@uszeroxclub.com and provide your Amazon Order ID for further assistance.
-
Page 16: Faqs
ZEROXCLUB Instructions Manual 2) Verify installation isn't near bright light sources. Test in complete darkness to confirm functionality. Note: This is normal operation, not a malfunction 3) Camera too close to marker lights (minimum 2" required). Reposition camera following these steps: Measure current distance, relocate if under 2 inches and secure in new position. - Page 17 ZEROXCLUB Instructions Manual poor attachments and connections of wires, as this may affect the delivery of images. 1) Please press MODE to exit the recording and press AV switch to single screen to see if the buttons can operate. 2) Remove the memory card, reboot the system, The MENU button can not work then check if the system is locked.
