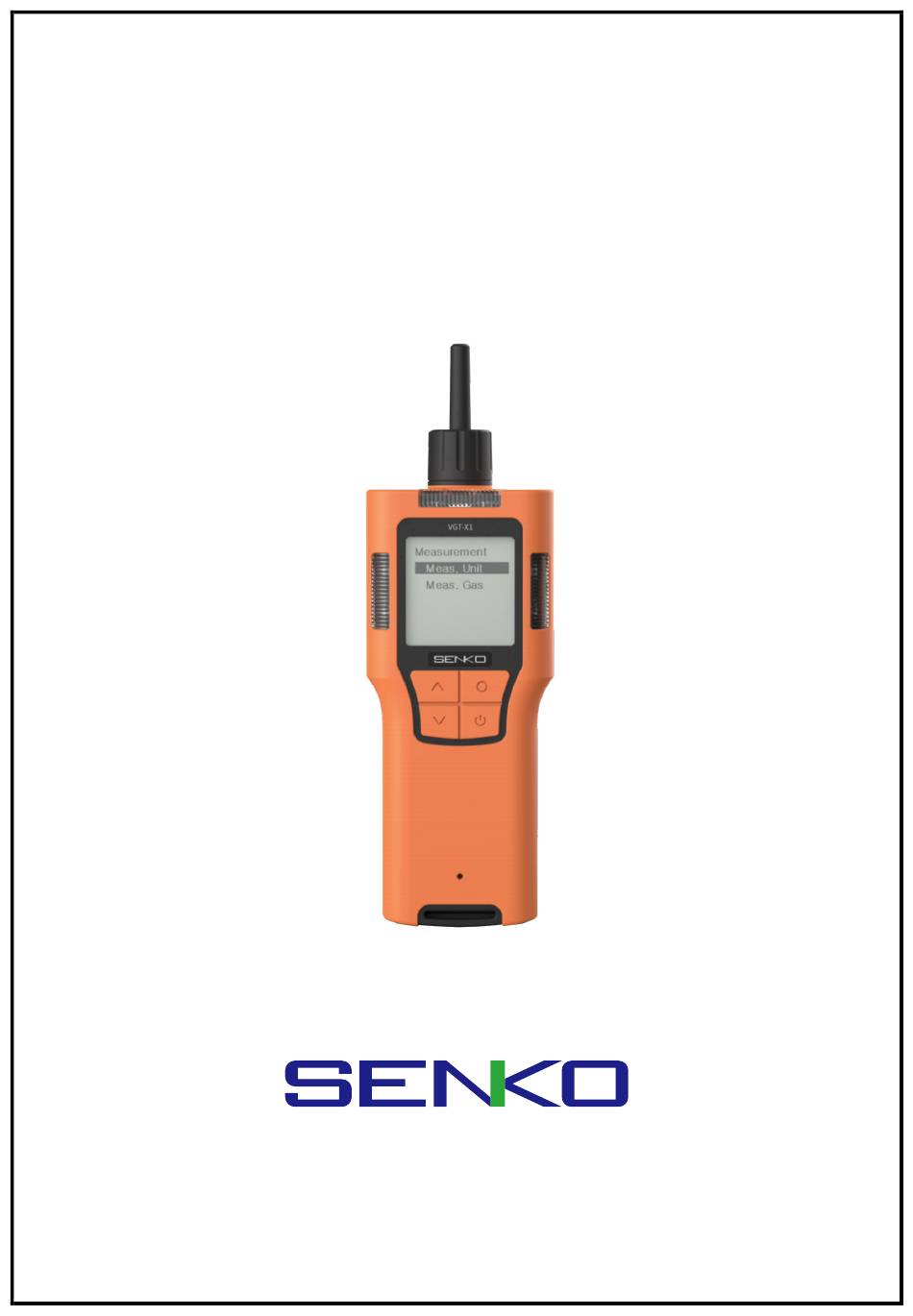

- Page 1 V-PRO Portable VOCs Gas Detector with Pump USER MANUAL www.senkousa.com...
-
Page 2: Product Overview
The device shows the gas concentration in real time and identifies the maximum and minimum concentrations. The settings can be adjusted through Wireless or the SENKO IR LINK option . Warning Please do not replace or change any parts. Unauthorized replacement of parts and/or maintenance will invalidate the warranty. - Page 3 Um 6.2 Vdc. The ambient temperature during charging must be between 0 C and 45 C. The battery and sensors should only be replaced by SENKO authorized service providers in a safe zone, free of hazardous gases.
-
Page 4: Table Of Contents
Data Log Settings ......................16 4.2.5. Monitor Settings ........................ 16 4.2.6. Wireless Connection ......................17 4.3. Battery ............................17 5. Data Log ......................... 18 6. Failure / Escape ..................... 18 Certification ......................19 8. Trouble Shooting ....................19 SENKO Co., Ltd. -
Page 5: Production Overview
V PRO immediately alerts users to danger through an audible alarm, LED indicators, and vibration when gas concentrations exceed safety thresholds. Additionally, Maximum and minimum concentration can be identified, and settings can be easily configured via Bluetooth or Senko IR LINK Optional . 1.2. Specification Model V PRO... -
Page 6: External Components
LCD Display Alarm LED Button Buzzer 1.4. LCD Display Symbols High Alarm Pump status Low Alarm Bump Test Alarm Standard gas Wireless connection Calibration STEL Alarm Battery TWA Alarm Self Test Success Buzzer Set Data Log Saving SENKO Co., Ltd. -
Page 7: Basic Operation
2. Basic Operation 2.1. System Activation Press and hold the Power/Enter button for 3 seconds to display the SENKO logo and power on the device. Once the device is powered on, version information, Self Test, and other details will be displayed, followed by the measurement screen main screen . -
Page 8: System Shutdown
BACK DOWN DOWN RIGHT MOVE Enter SELECT Enter Setup Menu: Press UP DOWN buttons for 3 seconds. If no button input is detected for 1 minute in the setup menu, it will return to the main screen. SENKO Co., Ltd. -
Page 9: Pump Status
Result Display: The Bump Test result will be displayed as Done or Fail for 3 seconds. Bump Interval Setting: The interval can be set between 1 day and 365 days, and can be configured via IR Link. When the set period expires, the Bump icon will blink at a 1 second interval. SENKO Co., Ltd. -
Page 10: Calibration
Pump Cal: Set the target flow rate. After connecting the Flow Meter to check the flow rate, you can set the target flow rate. After setting the target flow rate using Pump Cal, setting the Pump Speed to Medium will cause the Pump Duty to be automatically adjusted to achieve the target flow rate. SENKO Co., Ltd. -
Page 11: Measurement
Text icon When exceeding STEL Alarm concentration levels STEL alarm value displayed Request Date for Bump Test Bump icon blinking Stops after Bump Test Bump Test Execute Request Date for Calibration icon Blinking Stops after Calibration Calibration Calibration SENKO Co., Ltd. -
Page 12: Alarm Menu
STEL/TWA alarms can also be configured with the latching option via IR LINK optional on a computer. The alarm on/off function can also be changed via IR LINK. 3.6.1. Alarm Menu ENTER ENTER DOWN ENTER DOWN ENTER SENKO Co., Ltd. -
Page 13: Data Log
Enter key to select it. The settings are available in the following order: Calibration Measurement Alarm Monitor Wireless Settings. To exit the configuration mode and return to normal operation, repeatedly press the Esc key from the configuration menu screen. SENKO Co., Ltd. -
Page 14: Calibration Settings
4.2.1. Calibration Settings You can set the device s Zero and Span values to accurately measure the concentration of gases based on the sensor. ENTER ENTER ENTER DOWN ENTER ENTER DOWN ENTER ENTER DOWN ENTER DOWN ENTER DOWN ENTER SENKO Co., Ltd. -
Page 15: Measurement Settings
DOWN on the measurement unit. e.g., ppb, mg/m³, μmol/mol ENTER ENTER 4.2.3. Alarm Settings You can set the alarm concentration, as well as configure the alarm deactivation, LED, and Buzzer settings. ENTER ENTER DOWN ENTER DOWN ENTER SENKO Co., Ltd. -
Page 16: Data Log Settings
Through the menu, you can configure various settings including Date, Time, Display, Pump Speed, Pump Stall Settings, Self Zeroing, Temperature Unit, Site ID, User ID, Decimal Point, and perform a Factory Reset. ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER SENKO Co., Ltd. -
Page 17: Wireless Connection
Do not charge the device if the temperature is outside the specified range 0 C to 40 C . Do not replace the battery with any type other than the one specified and provided by the manufacturer. SENKO Co., Ltd. -
Page 18: Data Log
The device stores all user activities during operation. The stored data can be downloaded to a PC via the SENKO IR LINK. A maximum of 30 events, Bump and Calibration logs can be saved, and when the list exceeds 30 entries, the oldest data is automatically deleted. -
Page 19: Certification
Replace Sensor Configuration Error Replace Sensor Calibration Failure Device Error Perform Calibration Charger Error Replace Battery Battery Not Charging Device Error Check charger Connection Charging Continuously, Turn off the device and continue charging Unable to reach 100 SENKO Co., Ltd. -
Page 20: Limited Warranty
USER MANUAL LIMITED WARRANTY SENKO warrants this product to be free of defects in workmanship and materials under normal use and service for two years from the date of purchase from the manufacturer or from the product s authorized distributor.
