Summary of Contents for SENKO SGT-P

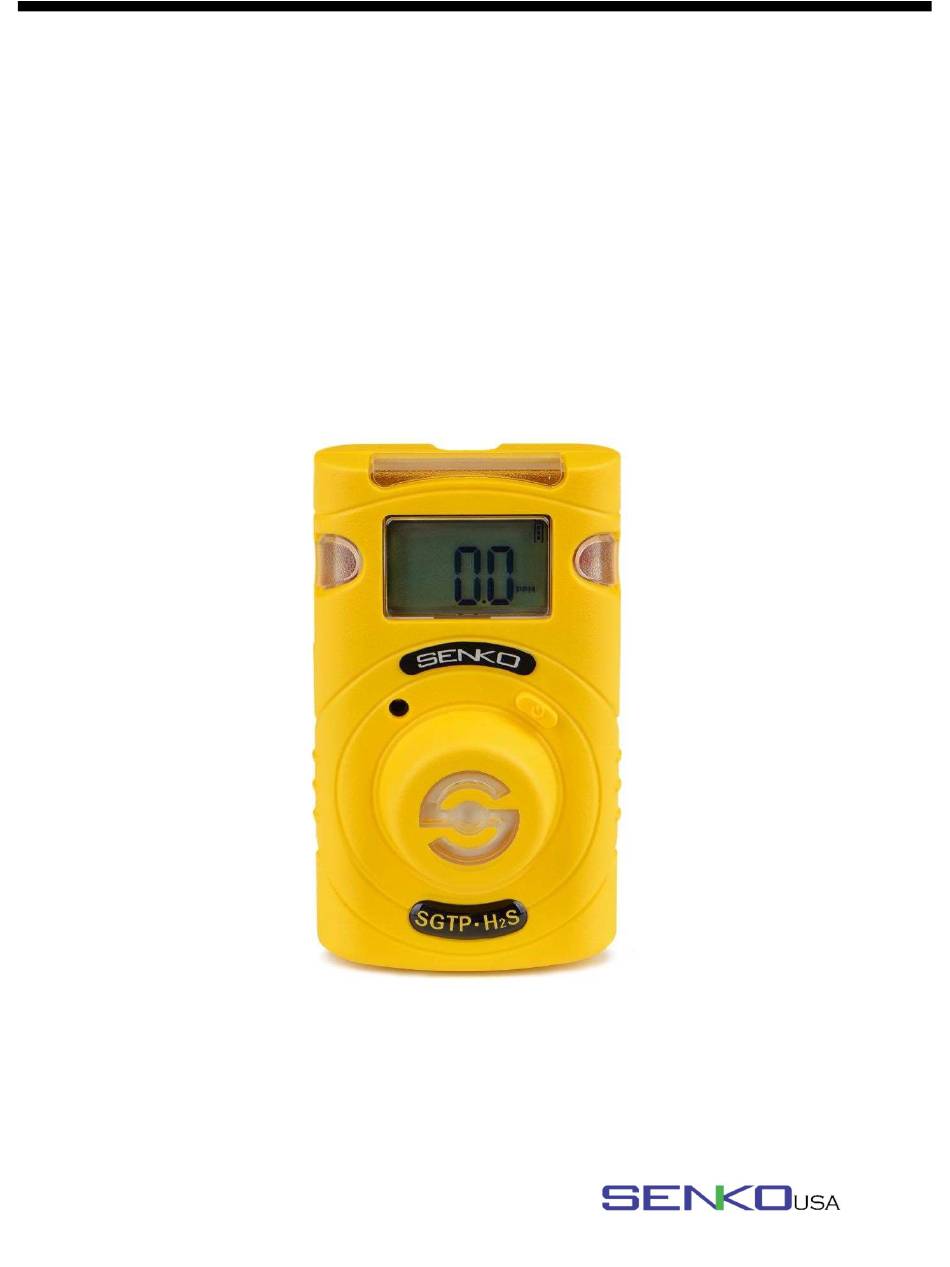

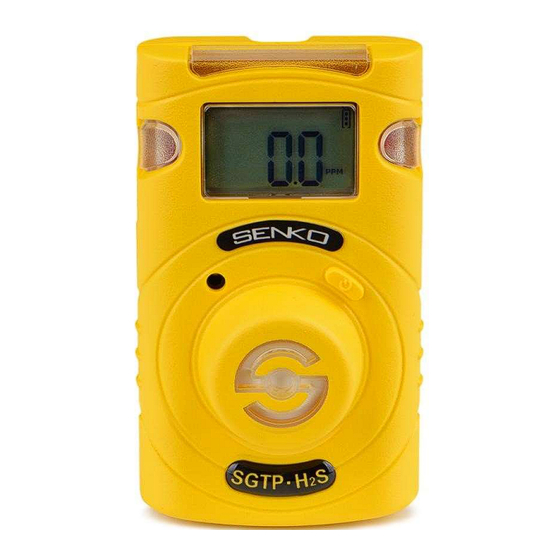

- Page 1 SGT-P (Portable Single Gas Detector) SGT-P: Replaceable User’s Manual...
- Page 2 Please use the SGT-P after the gas concentration value has stabilized. Severe vibration or shock to the device may cause a sudden reading change. Please use SGT-P after the value of gas concentration has stabilized. Excessive shock to SGT-P can cause the device and/or sensor to malfunction.
-
Page 3: Table Of Contents
SGT-P User’s Manual The serial number indicates below. ex) SG 01 01 001 2017(Year) 01(Months) 01(Day) 001(Manufacture Order) Table Contents 1. Product Overview ………………………..……………………………....… 2. Activation & Deactivation ……..…………………………....…………….. 5 3. Mode …………………………………………………...........… 1) Measuring Mode ……………………………………………....…. 6 2) Display Mode ……………………………………………....………. -
Page 4: Product Overview
SGT-P User’s Manual 1. Product Overview Remaining Alarm condition Month(Month) Remaining Calibration Low Alarm Display High Alarm Display Remaining Time(Hour) Stabilization Success Max Peak Value Stabilization Failure Min Peak Value Fresh Air Calibration Measurement Unit Standard Gas Remaining Battery Life... - Page 5 SGT-P User’s Manual IR Port LCD display Alarm LED Buzzer Button Gas sensor Gas Type LCD Display Symbols...
-
Page 6: Activation & Deactivation
In the event that stabilization of the device fails, will appear on the display and Measuring mode will not be entered. In this case, contact authorized reseller or SENKO service center at 82-31-492-0445 for repair / return information. To deactivate the device, pleas press and hold the button for three seconds. -
Page 7: Mode
SGT-P User’s Manual 3. Mode 3.1. Measuring mode • When activated, in Measuring mode, gas concentration will appear on the screen. • Oxygen concentration is displayed in percent by volume (%Vol) and toxic concentration is displayed in parts per million. (PPM) 3.2. -
Page 8: Calibration
LCD. If calibration fails, icon will appear on the display. If this continues, please contact the sales representative or SENKO service center. 4.2 . Remaining Calibration Day The default setting is “N/A”. To activate the remaining calibration day, set an interval on the “Cal Interval(day)”... -
Page 9: Standard Gas Calibration
Then, the device will return to Measuring mode. Once calibration fails, icon will appear on the display. If this continues, representatives or SENKO service center. please contact the sales 4.4 . Return to Measuring Mode. In the standard calibration mode... -
Page 10: Self Test & Bump Test
SGT- Manual standard calibration, and ESC will appear on the display consecutively. In the ESC mode, press the button for 3 seconds, the device will be get out of the calibration mode. And press the button one time, it will return Measuring mode. P User’s Calibration concentration. -
Page 11: Even Log
3. Remove the 2 screws on the PCB board. 4. After removing the battery, replace with the new sensor matching with the gas type. For instance, If you have the SGT-P CO, the CO sensor should be used for the replacement. 5. Assemble the detector. -
Page 12: Specification
O2) 5% ~ 95% RH (non-condensing) Case Rubber Enclosure Accessories Calibration Cap, Manual, Test Report Option External Sampling Pump (SP-Pump101), SENKO-IR Link, Docking Station Size & Size: 54mm(W) x 91mm(H) x 32mm(D)/ Weight Weight: 93g(Toxic), 104g(O2) (Battery, clip included) Operating... -
Page 13: Certification
P User’s Manual IECEx KTL 19.0019X ① Explosion Protected ② Protection Concept 9. Certificates ③ Gas Group Intrinsic Safety: ④ Temperature The detector is in conformity of the following standards Classification ⑤ Equipment Protection level IECEx: Ex ia IIC T4 ①... -
Page 14: Warranty
SGT- Limited Warranty SENKO warrants this product to be free of defects in workmanship and materials-under normal use and service for two years from the date of purchase from the manufacturer or from the product’s authorized reseller. The manufacturer is not liable (under this warranty) if its testing and examination disclose that the alleged defect in the product does not exist or was caused by the purchaser’s (or any third party’s)
