Copyright SENKO CO., LTD.
Sampling type Gas Detector
(SI-H100)
Operating Manual
Page 1 / 31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SI-H100 and is the answer not in the manual?

Questions and answers

Summary of Contents for SENKO SI-H100

  • Page 1 ⓒ Copyright SENKO CO., LTD. Sampling type Gas Detector (SI-H100) Operating Manual Page 1 / 31...
  • Page 2: Table Of Contents

    ⓒ Copyright SENKO CO., LTD. Table of contents Description............................... 4 Product composition ..........................5 Overview ................................6 Specifications ..............................7 Composition and name of each part ....................8 Front ................................8 Side ................................9 Rear ................................9 Bottom..............................10 Exploded view of the products ....................10 Cable connection (Power board) ......................
  • Page 3 ⓒ Copyright SENKO CO., LTD. MODBUS RS485 Address Map ....................... 25 11.1 Interface setting ..........................25 11.2 MODBUS RS485 Register ......................25 MODBUS TCP Address Map ......................26 12.1 Interface setting ..........................26 12.2 MODBUS TCP Register ........................26 3000X Register Read .......................... 26 ⚫...
  • Page 4: Description

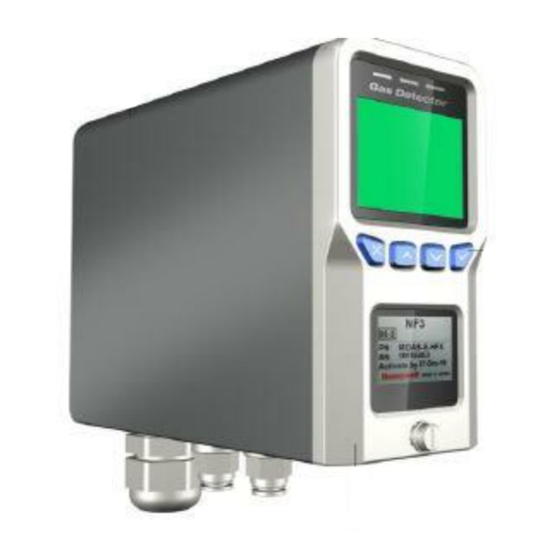

    Copyright SENKO CO., LTD. 1. Description Sampling type Gas Detector (SI-H100) measures sample gas by sensor cartridge in the case upon suction remotely on a real time basis. It is a device that assists to prevent or control a variety of gas related accidents including suffocation, intoxication, fire, explosion, corrosion, and so on in multiple semiconductor or industrial sites.
  • Page 5: Product Composition

    Copyright SENKO CO., LTD. 2. Product composition SI-H100 consists of four parts including case, sensor cartridge, main frame, and prob for installation. Also, it contains the accessary of thermal decomposition module(Pyrolyzer) to be used upon additional purchasing to be able to detect and measure the gas by thermal decomposition in case of the materials without gas sensor such as NF3.
  • Page 6: Overview

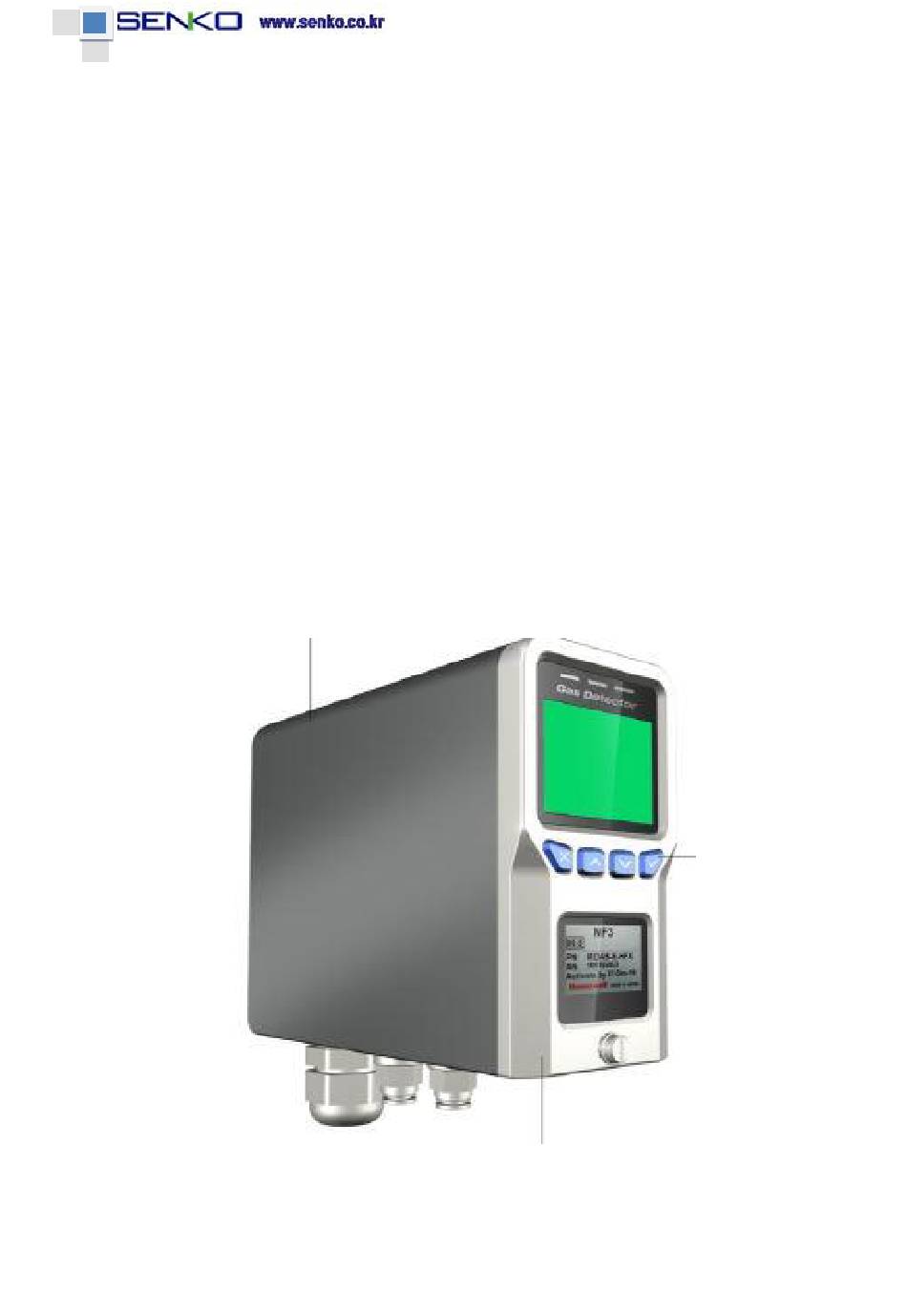

    ⓒ Copyright SENKO CO., LTD. 3. Overview Figure 1 Overview Page 6 / 31...
  • Page 7: Specifications

    ⓒ Copyright SENKO CO., LTD. 4. Specifications Item Specification Size 124mm(H) X 65mm(W) X 155mm(D) Weight Operating voltage DC : 24V ± 10% PoE : 36V~57V (Typical : 48V) Flow rate 500mL/min (MAX 900) Power consumption Approximately 5.0W Measurement display...
  • Page 8: Composition And Name Of Each Part

    ⓒ Copyright SENKO CO., LTD. 5. Composition and name of each part 1) Front Power LED(Green) Alarm1 LED(Red) Fault LED(Red) Alarm2 LED(Red) Down button Menu button Select button UP button Sensor cartridge window Thumb screw Gas outlet port Gas inlet port...
  • Page 9: Side

    ⓒ Copyright SENKO CO., LTD. 2) Side Unit cover 3) Rear Mount bracket hole cover Page 9 / 31...
  • Page 10: Bottom

    ⓒ Copyright SENKO CO., LTD. 4) Bottom Gas inlet port Gas outlet port Ethernet/PoE socket Cable Gland 5) Exploded view of the products Mounting bracket assembly Main sampling assembly Sensor cartridge Unit cover Locking tabs Main sampling assembly & bracket assembly fixed screw...
  • Page 11: Cable Connection (Power Board)

    ⓒ Copyright SENKO CO., LTD. 6. Cable connection (Power board) High(2nd) Alarm Jumper : 1-2 :NC /2-3:NO Low(1st) Alarm Jumper : 1-2 :NC /2-3:NO Fault Jumper : 1-2 :NC /2-3:NO ALARM HIGH(2nd) Relay RS-485 : A ALARM LOW(1st) Relay RS-485 : B...
  • Page 12: Outside View (Dimensions)

    ⓒ Copyright SENKO CO., LTD. 7. Outside view (Dimensions) Page 12 / 31...
  • Page 13: Key Information

    ⓒ Copyright SENKO CO., LTD. 8. Key information 1) Key Description Name Description Menu Menu/Cancel & Return to Previous Step Movement of List Focus and Value Change Up Long Movement of Focus in Screen Setting Down Movement of List Focus and Value Change...
  • Page 14: Power On

    ⓒ Copyright SENKO CO., LTD. 9. Power On 1) Connect the wire after checking power voltage 2) Transit into Measure state after turning on Power LED (Green) and Version information display 3) It takes about 15 seconds. Booting and Warm up...
  • Page 15: Operation Menu

    ⓒ Copyright SENKO CO., LTD. 10. Operation Menu - Pushing Menu key, change the circulation with Normal → SET 1 → SET 2 → SET 3 → CAL - Enter Review with Select key in Normal, return to Normal with Menu key.
  • Page 16: Normal Measurement Menu

    ⓒ Copyright SENKO CO., LTD. 1) Normal Measurement Menu  Current time: display 24-hour system  Current sensor gas type / concentration unit - O3: gas type in the installed sensor - ppm: concentration unit  Concentration of measured gas - Decimal position is changed according to the measurement range of the sensor.
  • Page 17: Set 1

    ⓒ Copyright SENKO CO., LTD. 4) SET 1 1) Gas Unit: Gas concentration unit 2) CAL Interval: Set calibration interval 3) Pump Freq: Control suction amount by setting Frequency of Gas Suction Pump 4) Pass Code: Set Setup and Calibration entry passcodes...
  • Page 18 ⓒ Copyright SENKO CO., LTD. 5) Inhibit ▶ Set Inhibit item with Up/Down key ▶ Cancel with Menu key, Save with Select key ▶ None: No Inhibit Alm: Alarm Inhibit Alm&Flt: Alarm, Fault Inhibit Full: Inhibit all items ▶ Default: None 6) Buzzer ▶...
  • Page 19: Set 2

    ⓒ Copyright SENKO CO., LTD. 5) SET 2 1) Alarm 1: Set Alarm Level 1(Low) 2) Alarm 2: Set Alarm Level 2(High) 3) Alarm Delay: Alarm is occurred after the setting time in case achieving the concentration of Alarm 1, 2...
  • Page 20: Set 3

    ⓒ Copyright SENKO CO., LTD. 5) Alarm Relay ▶ Set Alarm Relay with Up/Down key ▶ Cancel with Menu key, Save with Select key ▶ On: Operate Relay in case of Alarm occurrence Off: Do not operate Relay in case of Alarm occurrence ▶...
  • Page 21 ⓒ Copyright SENKO CO., LTD. 2) IP Address ▶ Adjust number (0-9) with Up/Down key ▶ Move Focus with Up/Down Long key Up Long: Move Focus left Down Long: Move Focus right ▶ Cancel with Menu key, Save with Select key ▶...
  • Page 22: Calibration

    ⓒ Copyright SENKO CO., LTD. 7) Calibration 1) Zero CAL Start: Start Zero Calibration 2) Span CAL Start: Start Span Calibration 3) Span Gas: Set Span Calibration concentration 4) CAL Duration: Set Calibration operation time 5) Flow CAL 1: Set Flow Calibration 1...
  • Page 23 ⓒ Copyright SENKO CO., LTD. 5) Flow CAL 1 ▶ Adjust number with Up/Down key ▶ Adjust number continuously with Up/Down Long key ▶ Cancel with Menu key, Save with Select key ▶ Flow : Display current flow rate Save setting upon arriving 500 cc/min ▶...
  • Page 24: Review

    ⓒ Copyright SENKO CO., LTD. 8) Review 1) S/W Ver: MAIN Firmware Version information of the device 2) Unit: Version information of Cartridge 3) CAL Due: Display the date required for Calibration 4) Cartridge Expire: Time of Cartridge expiry (not related to shelf life of sensor, significantly)
  • Page 25: Modbus Rs485 Address Map

    ⓒ Copyright SENKO CO., LTD. 11. MODBUS RS485 Address Map 11.1 Interface setting ⚫ Baud rate: 9600 bps ⚫ Data Format: RTU ⚫ Data bits: 8bits ⚫ Stop bit: 1bits ⚫ Parity: None 11.2 MODBUS RS485 Register Item Address Bits...
  • Page 26: Modbus Tcp Address Map

    ⓒ Copyright SENKO CO., LTD. 12. MODBUS TCP Address Map 12.1 Interface setting ⚫ Data Format: RTU ⚫ Baud rate: 9600 bps ⚫ Data bits: 8bits ⚫ Stop bit: 1bits ⚫ Parity: Even 12.2 MODBUS TCP Register 3000X Register Read ⚫...
  • Page 27 ⓒ Copyright SENKO CO., LTD. 5 : Reserved 6 : Test Mode 7 : 4-20mA Calibration Mode 8 : Flow Calibration Mode 9-15 : Reserved BIT4 Fault Active Status BIT5 Reserved BIT6 Alarm 1 Active BIT7 Alarm 2 Active BIT8...
  • Page 28: 4000X Register Write

    BIT1~15 Reserved 13. Length of installed cable Maximum length between SI-H100 and power supply is determined by specification of the wire. ⚫ Maximum installation length = VMAXDROP ÷ IMAX ÷ WIRER/m ÷ 2 ✓ VMAXDROP: Maximum Power Loop Voltage Drop (=Power Supply voltage –...
  • Page 29 ⓒ Copyright SENKO CO., LTD. Installed lengths of power cables by cable categories are as follows. ◼ Copper resistance Meters (ohms/m) 3.31 0.00521 1439 2.08 0.00828 1.31 0.01318 0.82 0.02095 0.518 0.0333 Page 29 / 31...
  • Page 30: Error Code

    ⓒ Copyright SENKO CO., LTD. 14. Error Code Ex) Error Display Code code code Reason Solution Code Code Firmware Version is unusual Firmware Update Firmware Tag with unusual Data Firmware Update Firmware CRC with unusual Data Firmware Update EEPROM Read/Write Failure...
  • Page 31: Warranty

    Copyright SENKO CO., LTD. 15. Warranty Senko Co. Ltd. guarantees all the products for 24 months from the delivery date and any products with abnormality within the guaranteed period shall be fixed or changed without charge by Senko. However, the parts that their shelf life become shorter according to the usages such as sensor (1 year), battery, lamp, and so on will not be applied by this warranty period.
