ETC Response 32 OUT Manual

U S E R M A N U A L

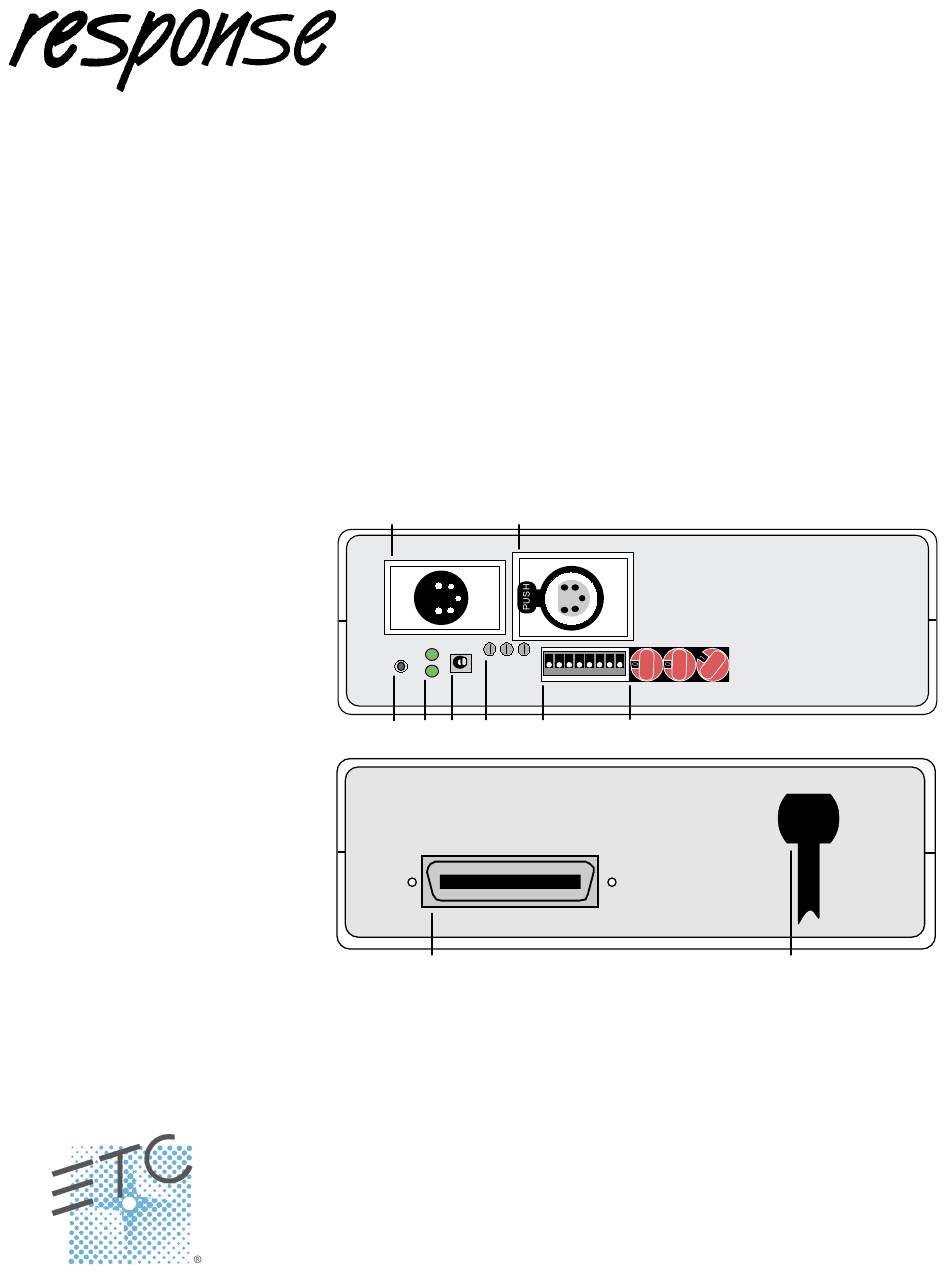

DMX pass thru
Reset switch
Indicator LEDs
DMX termination switch
Output adjustment pots
DIP switches
Number switches
Analog output
AC power cable
32 OUT
Response 32 OUT network interface allows you to convert 32 DMX512 dimmer signals from
digital to analog. The compact interface box features an optically isolated DMX link and a
200 hertz output update rate.
This manual provides information on all Response 32 OUT controls, connectors and
indicators.
–
DMX input
ƒ
„
…
š
›
ˆ
‰
ž
‹
To use Response 32 OUT , follow these steps:
1. Plug power cable into a 120 VAC outlet.
2. Insert DMX512 input cable into male 5-pin input connector. If necessary, insert DMX512
output cable into female 5-pin pass thru connector.
3. Set number switches to starting analog dimmer output number (see page 2).
4. If Response 32 OUT is the last device in the data link, set DMX512 terminator switch on
(right).
5. Insert 36-pin analog dimmer cable in analog output connector.
6. See following pages for filter and output adjustment pot settings.
– ƒ
1 2
„ … š › ˆ
...............
...............
ž
3 4 5 6 7 8
‰
‹
