www.ti.com
EVM User's Guide: DLPLCRC964EVM
DLPLCRC964 Evaluation Module Quick Start Guide
Description
®

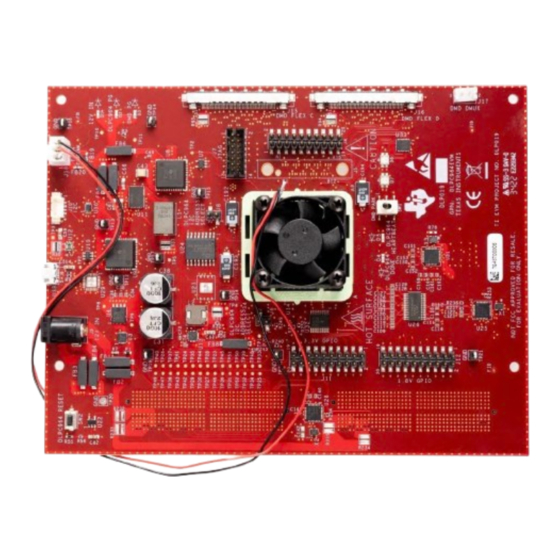

The DLP
LightCrafter
(EVM) offers a reference design to enable faster
development of the DLPC964 controller architecture
in support of the DLP991U and DLP991UUV DMDs.
This platform receives high-speed bitplane data from
an external source through the AMD Aurora 64B/66B
interface and formats the bitplane data before loading
the data into a DLPLCR99EVM or DLPLCR99UVEVM
for display on the DLP991U or DLP991UUV DMD.
Get Started
1. To order the DLPLCRC964EVM, visit the
DLPLCRC964EVM Product
2. Refer to the
TI E2E DLP products forum
assistance.
DLPU132B – OCTOBER 2023 – REVISED MARCH 2025
Submit Document Feedback
DLPC964 Evaluation Module
Page.
for more
DLP LightCrafter DLPC964 Evaluation Module
Copyright © 2025 Texas Instruments Incorporated
Features
Controller EVM for the DLPLCR99EVM and
DLPLCR99UVEVM
12 HSS input Aurora 64B/66B data lanes at
10Gbps per lane
32 HSS DMD output data lanes at 3.6Gbps per
data lane
Applications
Digital direct imaging (LDI)
Maskless lithography
Additive manufacturing and 3D printing
Industrial printing
Dynamic gray scale marking and coding
High-speed imaging and display
DLPLCRC964 Evaluation Module Quick Start Guide
Description
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DLPLCRC964 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments DLPLCRC964

  • Page 1 Description EVM User's Guide: DLPLCRC964EVM DLPLCRC964 Evaluation Module Quick Start Guide Description Features ® ™ The DLP LightCrafter DLPC964 Evaluation Module • Controller EVM for the DLPLCR99EVM and (EVM) offers a reference design to enable faster DLPLCR99UVEVM development of the DLPC964 controller architecture •...
  • Page 2: Kit Contents

    Flex Cables—Four are needed to support the DLP991U DMD EVM board • HPC FMC Connectors —Two for an attached Apps FPGA or other front-end board DLPLCRC964 Evaluation Module Quick Start Guide DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 Submit Document Feedback...
  • Page 3 2 Red General use FPGA Reset Switch 2 Green General use Figure 1-1. DLP LightCrafter DLPC964 EVM Block Diagram DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 DLPLCRC964 Evaluation Module Quick Start Guide Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 4: Device Information

    Figure 1-2 outlines the major hardware components of a DLPLCRC964EVM System Hardware. Figure 1-2. DLPLCRC964EVM Hardware Components DLPLCRC964 Evaluation Module Quick Start Guide DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 5 The DLPLCR99EVM, DLPLCR99UVEVM, Apps FPGA, power supply, and USB cable are NOT included with the module. Figure 2-1. DLPLCRC964EVM Connectors (Top View) DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 DLPLCRC964 Evaluation Module Quick Start Guide Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 6 Table 2-1. Power Connector Pins Description Supply Range Input supply 12+ V DC –5%/+10% Ground Ground DLPLCRC964 Evaluation Module Quick Start Guide DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 7 Table 2-3. DLPC964 I C Secondary Address Selection Table C Secondary C_ADDR_SEL[1] C_ADDR_SEL[0] Address 0x0F 0x0E 0x0D 0x0C DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 DLPLCRC964 Evaluation Module Quick Start Guide Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 8 Description Supply Range Ground Supply Voltage 1.8V Ground 1.8V Ground 1.8V Ground 1.8V Ground 1.8V Ground Ground DLPLCRC964 Evaluation Module Quick Start Guide DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 9 C Connector Pins Description Supply Range C SCL 3.3V C SDA 3.3V 3.3V supply 3.3V Ground Ground Ground DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 DLPLCRC964 Evaluation Module Quick Start Guide Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 10 GPIO_3P3_5 3.3V Ground GPIO_3P3_6 3.3V Ground GPIO_3P3_7 3.3V Ground 3.3V Supply 3.3V Ground 3.3V Supply 3.3V Ground DLPLCRC964 Evaluation Module Quick Start Guide DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 11 GPIO_1P8_5 1.8V Ground GPIO_1P8_6 1.8V Ground GPIO_1P8_7 1.8V Ground 1.8V Supply 1.8V Ground 1.8V Supply 1.8V Ground DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 DLPLCRC964 Evaluation Module Quick Start Guide Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 12 Ground Power Power 2.2.13 Switches This section describes the switches on the DLPLCRC964EVM with the respective locations. DLPLCRC964 Evaluation Module Quick Start Guide DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 13 The indicator that the Phase-Locked Loop (PLL) clock circuity of the controller is Phased-Locked Loop (PLL) locked. DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 DLPLCRC964 Evaluation Module Quick Start Guide Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 14 DLPLCRC964EVM and DLPLCR99EVM / DLPLCR99UVEVM. Figure 2-3. Standalone DLPLCRC964EVM and DLPLCR99EVM / DLPLCR99UVEVM DLPLCRC964 Evaluation Module Quick Start Guide DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 Submit Document Feedback...
  • Page 15 Figure 2-4. DLPLCRC964EVM Female HPC FMC Connector Figure 2-5. AMD EVM Female HPC FMC Connector Figure 2-6. Fully Assembled DLPLCRC964EVM with AMD EVM DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 DLPLCRC964 Evaluation Module Quick Start Guide Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 16: Quick Start

    1. Flip switch SW1 so the switch is facing away from the DLPC964 Controller [DMD in the parked state] 2. Remove power from the barrel jack connector J3 of the DLPLCRC964EVM 3. Power off the AMD EVM (if connected) DLPLCRC964 Evaluation Module Quick Start Guide DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 Submit Document Feedback...
  • Page 17 • DLPC964 Registers Tab • Apps FPGA Tab • Apps FPGA Registers Tab Figure 3-1. DLPC964 GUI DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 DLPLCRC964 Evaluation Module Quick Start Guide Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 18 About DLP® LightCrafter DLPC964 GUI displays the Software Version (X.X.X) and USB DLL Version information box: Figure 3-3. DLPC964 GUI About Box DLPLCRC964 Evaluation Module Quick Start Guide DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 19 • The DLPC964 driver in Device Manager with the .inf file provided from the GUI software installation. Note The .inf file is located under: C:\Program Files\Texas Instruments\DLPC964REF-SW- VX.X.XX\Driver\Win10\x64. DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 DLPLCRC964 Evaluation Module Quick Start Guide Submit Document Feedback Copyright ©...
  • Page 20 – Hard Error—Indicates if the HSS requires a reset to recover from a hard error condition. – Channel Up—Determines if the Aurora Channels 0-3 are up and running. DLPLCRC964 Evaluation Module Quick Start Guide DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 Submit Document Feedback Copyright ©...
  • Page 21 C address is 0x0C. To communicate with the alternate I2C addresses, please see Table 2-3 for information regarding the jumpers that must be populated. DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 DLPLCRC964 Evaluation Module Quick Start Guide Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 22 Block Active—There are 16 blocks [0-15] in the DLP991U DMD. The blocks that are checked inside the GUI are going to determine what blocks are going to be reset and loaded with new data from the DMD. DLPLCRC964 Evaluation Module Quick Start Guide DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 Submit Document Feedback Copyright ©...
  • Page 23: Register Definitions

    Please visit the DLPC964 data sheet for detailed descriptions of each DLPC964 register offered in the DLPC964 GUI. DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 DLPLCRC964 Evaluation Module Quick Start Guide Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 24 HSS Lane Status Up—The HSS Lane Status Up indicates the status of each individual lane of the Aurora 64B/66B input to the DLPC964 Controller. DLPLCRC964 Evaluation Module Quick Start Guide DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 Submit Document Feedback...
  • Page 25 C address is 0x0D. To communicate with the alternate I2C addresses, please see Table 2-3 for information regarding the jumpers that must be populated. DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 DLPLCRC964 Evaluation Module Quick Start Guide Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 26 Block Active—There are 16 blocks [0-15] in the DLP991U DMD. The blocks that are checked inside the GUI are going to determine what blocks are going to be reset and loaded with new data to the DMD. DLPLCRC964 Evaluation Module Quick Start Guide DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 Submit Document Feedback Copyright ©...
  • Page 27 Please visit the DLPC964 data sheet for detailed descriptions of each Apps FPGA register offered in the DLPC964 GUI. DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 DLPLCRC964 Evaluation Module Quick Start Guide Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 28 4. In the Hardware Manager window, select Open Target > Auto Connect to find the target device being programmed. DLPLCRC964 Evaluation Module Quick Start Guide DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 Submit Document Feedback...
  • Page 29 8. Once the appropriate flash device is selected, a dialog box is going to pop up asking if the user wants to program the configuration device (SPI Flash). Click OK. DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 DLPLCRC964 Evaluation Module Quick Start Guide Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 30 J3 and then plug power back into the barrel jack connector. After the FPGA is programmed successfully, DLPC964 Done (D4) is going to illuminate green and the DLPC964 Heartbeat (D5) has a heartbeat that flashes on/off. DLPLCRC964 Evaluation Module Quick Start Guide DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 Submit Document Feedback...
  • Page 31 2. Make sure to set SW11 to 00010 (1 = on, Position 1 → Position 5, left to right). Figure 3-19. FPGA Configuration Mode DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 DLPLCRC964 Evaluation Module Quick Start Guide Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 32 10. Once set up, click OK. The programming can take a few minutes. 11. Once completed, power cycle the AMD EVM, and the DLPC964 Apps Bitstream automatically loads onto the AMD EVM. DLPLCRC964 Evaluation Module Quick Start Guide DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 Submit Document Feedback...
  • Page 33 The schematics are available for download on the DLPLCRC964EVM Tool Folder. 4.2 PCB Layout Figure 4-1. DLPLCRC964EVM PCB (Front) Figure 4-2. DLPLCRC964EVM PCB (Back) DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 DLPLCRC964 Evaluation Module Quick Start Guide Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 34: Bill Of Materials (Bom)

    Yageo CC0402JRNPO9BN360 D1,D2,D3 LED_BLUE_SMT Lite-On LTST-C193TBKT-5A D4,D5 LED_GREEN_SMT Lite-On LTST-C193KGKT-5A DUAL_LED_GRN_RED_SM D6,D7 Lite-On LTST-C155GEKT FB1,FB2,FB3,FB4,FB5,FB6,FB7,FB8 Laird 35F0121-1SR-10 DLPLCRC964 Evaluation Module Quick Start Guide DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 35 RC1005J472CS Panasonic ERJ-2RKF3300X R58,R61,R224,R225 Panasonic ERJ-2GEJ220X R59,R60 2.2K Panasonic ERJ-2RKF2201X R69,R89,R90,R226,R227, Samsung RC1005F101CS R228,R229,R251 80.6K Panasonic ERJ-2RKF8062X DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 DLPLCRC964 Evaluation Module Quick Start Guide Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 36 TXB0108PWR Texas Instruments TXB0108PWR SN74AUC245 Texas Instruments SN74AUC245RGYR X1,X2 ASDMB-25.000MHZ Abracon ASDMB-25.000MHZ-LY-T DSC6111JE1A- DSC6111JE1A- Microchip PROGRAMMABLE PROGRAMMABLE DLPLCRC964 Evaluation Module Quick Start Guide DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 37 Virtex ™ are trademarks of Xilinx, Inc. ® is a registered trademark of Texas Instruments. All trademarks are the property of their respective owners. 5.3 References Getting Started with the Virtex-7 FPGA VC707 Evaluation Kit VC707 Evaluation Board for Virtex-7 FPGA DLPC964 Apps FPGA User's Guide DLPU132B –...
  • Page 38 DLPLCRC964 Evaluation Module Quick Start Guide DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 Submit Document Feedback...
  • Page 39: Related Documentation From Texas Instruments

    Added sections to describe how to operate DLPLCRC964EVM with DLPC964 GUI........17 • Added Hardware Design Files for DLPLCRC964EVM..................• Added additional information and resources for DLPLCRC964EVM............... DLPU132B – OCTOBER 2023 – REVISED MARCH 2025 DLPLCRC964 Evaluation Module Quick Start Guide Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
