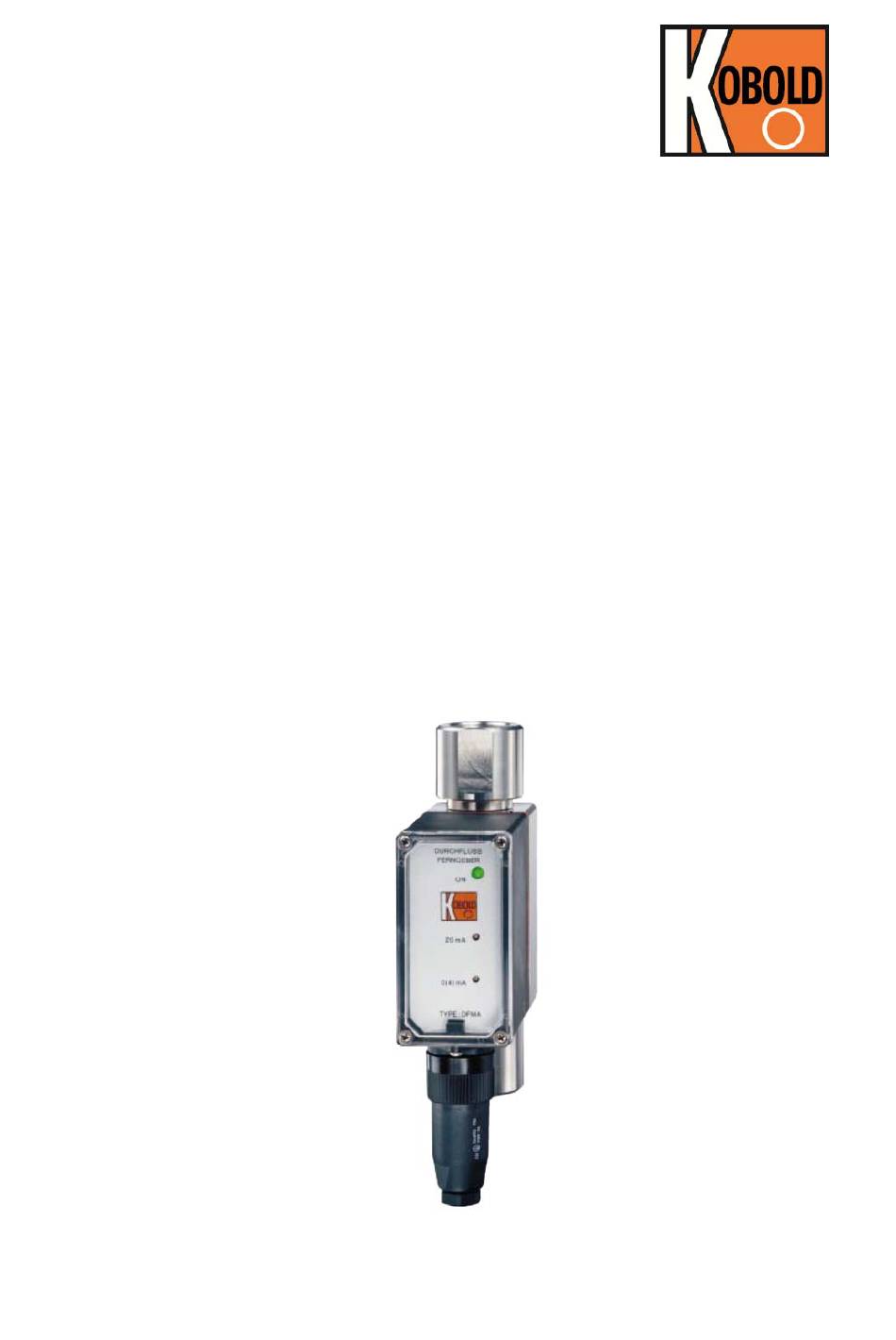

- Page 1 Operating Instruction Flow Transmitter Model: DF-MA...
-
Page 2: Table Of Contents
11. Technical Information .................. 10 12. Order Codes ....................10 13. Dimensions ....................10 14. Recommended Spare Parts ................ 10 15. Disposal ...................... 10 16. EU Declaration of Conformance ..............11 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com... -
Page 3: Note
If you need an instruction manual that corresponds to the purchased product version, you can request it from us free of charge by email (info.de@kobold.com) in PDF format, specifying the relevant invoice number and serial number. If you wish, the operating instructions can also be sent to you by post in paper form. -
Page 4: As Per Ped 2014/68/Eu
Should the damage to a device be visible, we recommend a thorough inspection of the delivery packing. In case of damage, please inform your parcel service/ forwarding agent immediately, since they are responsible for damages during transit. Scope of delivery: Flow Transmitter DF-MA Page 4 DF-MA K08/1123... -
Page 5: Regulation Use
DF-MA 4. Regulation Use The model DF-MA is installed to measure the flow of liquids. The instrument provides the following facilities: Analogue Output For the remote transmission of measured flow rates, the instrument is provided with an analogue output (DIN IEC 381) with 0-20 mA or 4-20 (see label). -
Page 6: Operating Principles
We recommend that the inlet and outlet pipes are mechanically fixed approximately 50 mm from each instrument connection. When using material combination IIB,IV,V,VI and VII the instrument connec- tions may not be rotated. Page 6 DF-MA K08/1123... - Page 7 Caution Warning! The material polysulfone (order code B) tends to cause stress cracks if unsuitable cleaning or sealing agents are used. Only agents suitable for polysulfone may be used during assembly or cleaning. Caution DF-MA K08/1123 Page 7...
-
Page 8: Electrical Connection
Should the electronics be opened, any warranty will become invalid. As soon as the external power supply to the instrument is switched on, a green LED will indicate that the unit is ready for operation. Page 8 DF-MA K08/1123... -
Page 9: Mechanical Commissioning Of The Instrument
Caution 10. Maintenance For measured media without contamination, the DF-MA instrument is almost maintenance-free. As the rotating vane contains magnets, any ferritic particles present in the medium may lead to problems. In order to avoid such problems, we recommend the installation of a magnet filter e.g.: model filter MF-R. -
Page 10: Technical Information
DF-MA 11. Technical Information Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 12. Order Codes Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 13. -
Page 11: Eu Declaration Of Conformance
DF-MA 16. EU Declaration of Conformance We, KOBOLD Messring GmbH, Nordring 22-24, 65719 Hofheim, Germany, declare under our sole responsibility that the product: Flow Monitor / Transmitter: DF-MA to which this declaration relates is in conformity with the following UK directives... - Page 12 DF-MA EN IEC 63000:2018 Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances Hofheim, 10. October 2023 H. Volz J. Burke General Manager Compliance Manager Page 12 DF-MA K08/1123...
