P/N 59220
Please read these instructions completely before proceeding with the installation.
Air Line (AA)
Upper Frame
Bracket (B)
"
-16 x 1.5"
3
8
Frame Bolt (M)
Outboard
Lower
Bracket (C)
90˚ Air Fitting (E)
Nylon Nut (P)
Serrated Lock
Washer (S)
Air Sleeve (A)
RC+ Lower Piston (R)
"
3
8
"
3
8
Driver Side

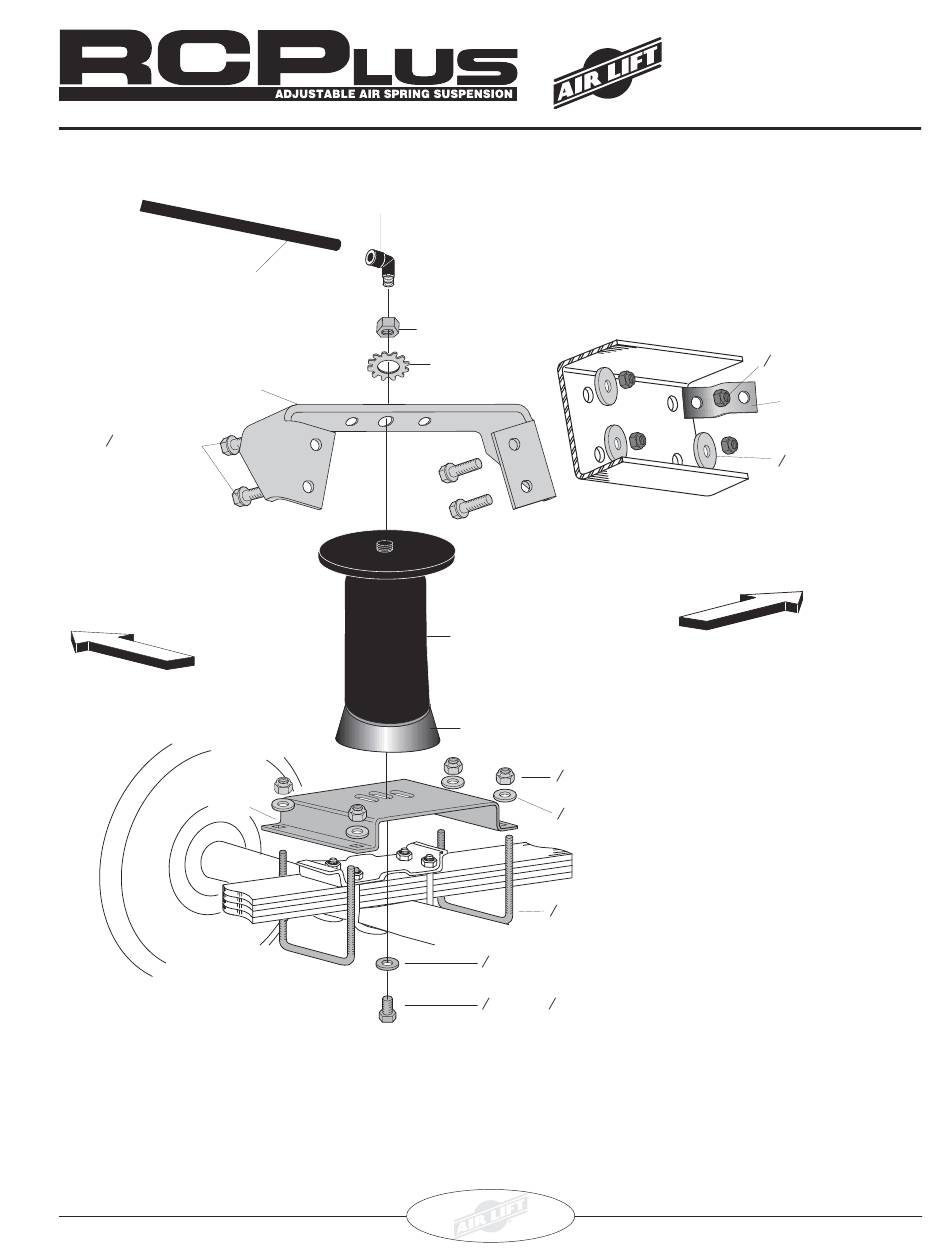

Figure 1
Technical Support
1-800-248-0892
Ext. 2
by
"
3
-16 Lock Nut (H)
8
3
"
Flat Washer (I)
8
"
U-Bolt (F)
3
8
Flat Washer (I)
-16 x
"
Hex Bolt (N)
7
8
MN-599
(01406)
NPR 4641
"
3
-16 Lock Nut (H)
8
Brake Line Bracket
Spacer (O)
Large
"
3
Flat Washer (L)
8
Forward
1
Advertisement
Table of Contents
Related Manuals for Air Lift RCPLUS 59220
Summary of Contents for Air Lift RCPLUS 59220
- Page 1 MN-599 (01406) NPR 4641 P/N 59220 Please read these instructions completely before proceeding with the installation. 90˚ Air Fitting (E) Air Line (AA) Nylon Nut (P) " -16 Lock Nut (H) Serrated Lock Upper Frame Washer (S) Bracket (B) Brake Line Bracket Spacer (O) "...
-
Page 2: Preparing For Installation
I. Preparing for Installation Move brake line bracket away IMPORTANT: Your vehicle may be equipped with a rear from inside frame rail. brake proportioning valve. Any type of load assist supension product could affect brake performance. It is recommended that you check with your dealer before installing this type of product. - Page 3 II. Installing the Assembly 1. Center punch the lower rear hole in the upper bracket and drill it out to 3/8”. Loosely install a washer head frame bolt (M), large flat washer (L), and nyloc nut (H) (Figure 1). Next, center punch the forward lower hole in the upper bracket and drill it out to 3/8”.
- Page 4 III. Installing the Air Line 1.Select a location on the vehicle for the air inflation valves (Figure 6). The location can be on the bumper or on the body of the vehicle, but be sure that it is protected so that the valve will not be damaged and will still be accessible for the air chuck.
-
Page 5: Final Adjustments
V. Final Adjustments 1. With the bottom and top of the air sleeve still loose, inflate the air sleeve to approximately 10 p.s.i. Use the slotted adjustment in the lower bracket to correctly align the air spring between the upper and lower brackets. This can be accomplished by lightly tapping it inboard or outboard for proper alignment. - Page 6 MINIMUM AIR PRESSURE 100 P.S.I. 5 P.S.I. FAILURE TO MAINTAIN MINIMUM PRESSURE OR TO PREVENT BOTTOMING OUT AND/OR OVEREXTENSION WILL VOID THE WARRANTY Thank you for purchasing Air Lift Products Mailing Address: Street Address: AIR LIFT COMPANY AIR LIFT COMPANY P.O.
-
Page 7: Product Use Information
No. Adding air springs will not change the weight ratings (GAWR, GCWR and/or GVWR) of a vehicle. Exceeding the GVWR is dangerous and voids the Air Lift warranty. Q. Is it necessary to keep air in the air springs at all time and how much pressure will they need? The minimum air pressure should be maintained at all times. -
Page 8: Guidelines For Adding Air
fi g. 4 Unlevel Level Poor stability Rev. 4/5/07 Thank you for purchasing Air Lift products! For technical support, please call (800) 248-0892. Air Lift Company • P.O. Box 80167, MI 48908-0167 • (517) 322-2144 • Fax: (517) 322-0240 • www.airliftcompany.com...
