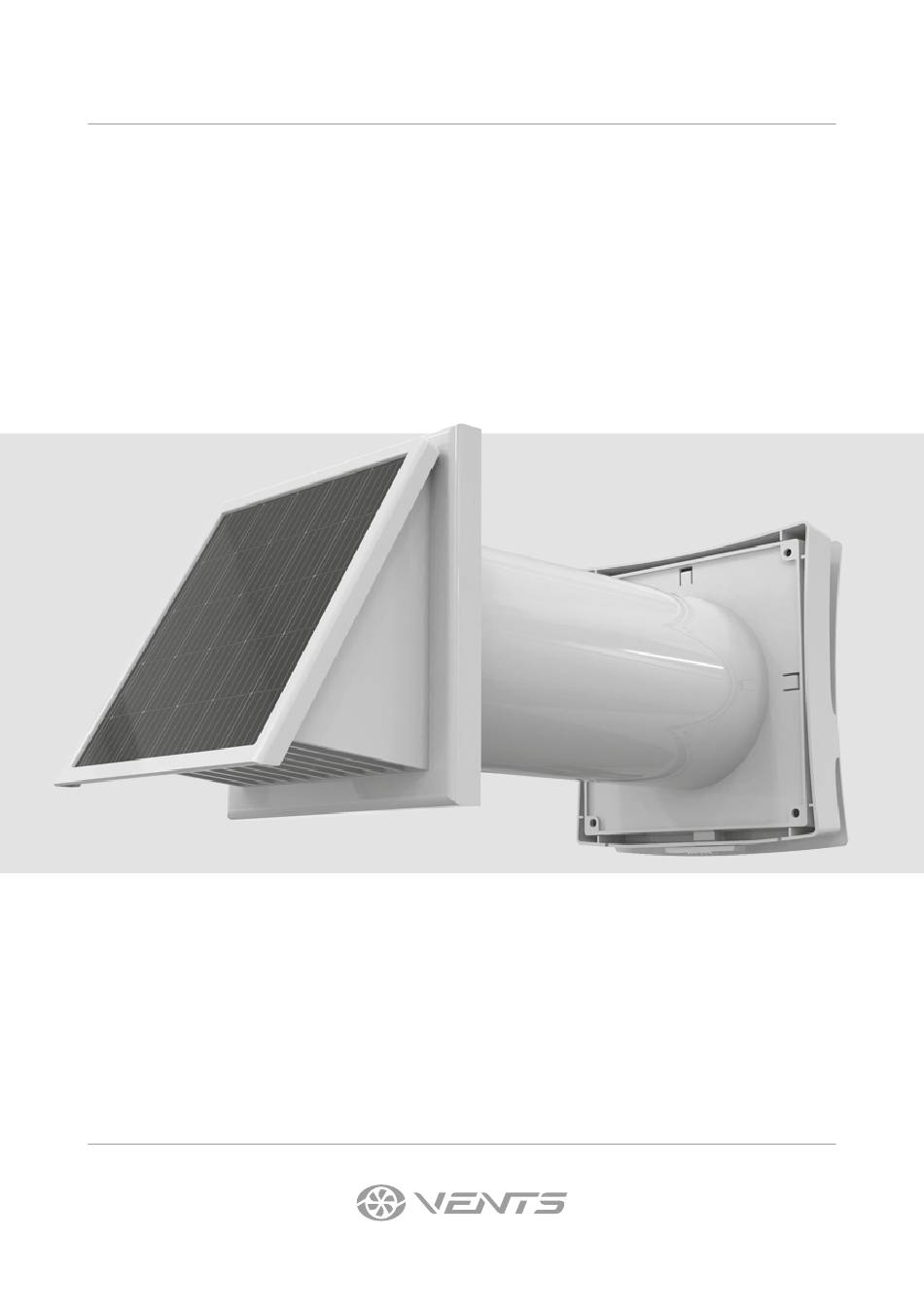

- Page 1 USER’S MANUAL PSS 102 PSS 102 E Wall ventilator...
-
Page 2: Table Of Contents
Warranty card ....................................11 This user’s manual is a main operating document intended for technical, maintenance, and operating staff. The manual contains information about purpose, technical details, operating principle, design, and installation of the PSS 102 (E) unit and all its modifications. - Page 3 Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it.
-
Page 4: Purpose
PSS 102 (E) PURPOSE The ventilator is designed to ensure continuous mechanical air exchange in flats, cottages, hotels, cafés and other domestic and public premises. The ventilator is designed for installation on external walls. DELIVERY SET Name Number Indoor grille with a built-in fan 1 pc. -
Page 5: Technical Data
PSS 102 (E) TECHNICAL DATA The temperature in the room where the indoor unit of the ventilator is installed must be in the range from +1 °C to +40 °C, and the relative humidity – up to 65 % (no condensation build-up). If the conditions of using the ventilator exceed the specified limits, ensure the flow of fresh air through the windows. -
Page 6: Design And Operating Principle
PSS 102 (E) DESIGN AND OPERATING PRINCIPLE The ventilator consists of an indoor grille, telescopic air duct, and outdoor grille. The indoor grille is made of high quality ABS plastic and is equipped with a dust filter (G3 class). The built-in regulator allows you to change the supply air volume or completely close the ventilation duct. A fan is installed on the flange of the grille. -
Page 7: Mounting And Set-Up
PSS 102 (E) MOUNTING AND SET-UP READ THE USER’S MANUAL PRIOR TO MOUNTING THE UNIT. DO NOT BLOCK THE AIR DUCT OF THE INSTALLED VENTILATOR WITH DUST ACCUMULATING MATERIALS, SUCH AS CURTAINS, CLOTH SHUTTERS, ETC. AS IT PREVENTS AIR CIRCULATION IN THE ROOM. - Page 8 PSS 102 (E) The solar battery should be installed in a location with maximum sunlight intensity. Ensure adequate protection of the surface of the solar cells from damage and dirt. This reduces the amount of light hitting the solar cells, thus, reducing the output current.
-
Page 9: Technical Maintenance
PSS 102 (E) 5. Adjust the airflow regulator. Closed Open 6. Assemble the indoor grille. TECHNICAL MAINTENANCE The technical maintenance includes periodic cleaning of the grille and solar battery surfaces from accumulated dust and dirt, as well as washing the built-in filter as it becomes dirty, but at least once every 6 months. -
Page 10: Manufacturer's Warranty
PSS 102 (E) MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 11: Certificate Of Acceptance
PSS 102 (E) CERTIFICATE OF ACCEPTANCE Unit Type Wall ventilator Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 12 V227EN-02...
