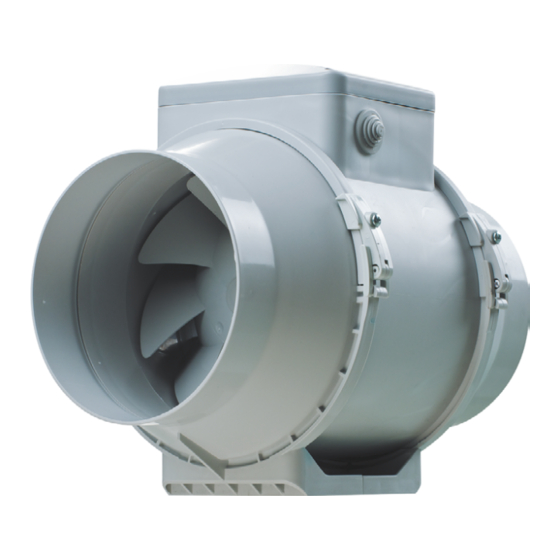

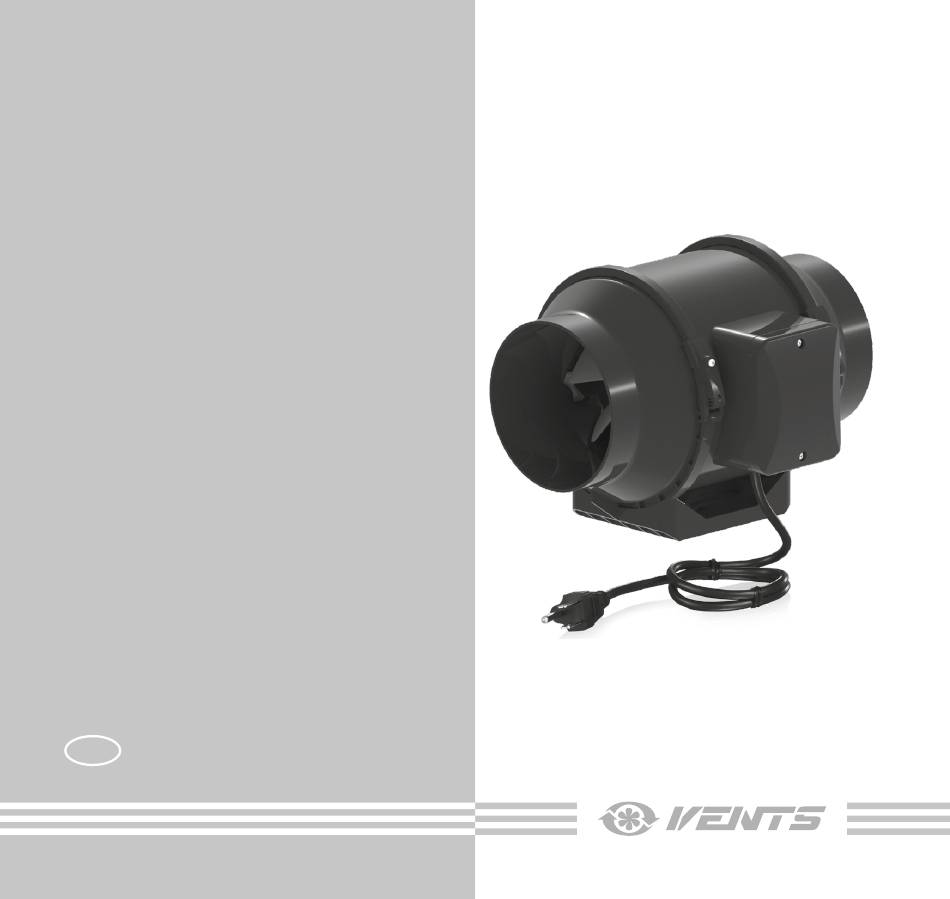

- Page 1 INLINE MIXED-FLOW FANS TT PRO User’s manual www.vents-us.com...
-
Page 2: Table Of Contents
CONTENTS Delivery set ..........................................7 Brief description ........................................7 Operation guidelines ......................................8 Installation ..........................................8 Technical maintenance ......................................9 Storage and transportation regulations ..............................10 Manufacturer’s warranty ....................................11 This user’s manual is a main operating document intended for technical, maintenance, and operating staff. The manual contains information about purpose, technical details, operating principle, design, and installation of the TT PRO unit and all its modifications. - Page 3 All user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical, and technical norms and standards must be observed when installing and operating the unit. Disconnect the unit from the power supply prior to any connection, servicing, maintenance, and repair operations.
- Page 4 Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it.
- Page 5 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 6 CAUTION: In order to avoid a safety hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. Ensure that the appliance is switched off from the supply mains before removing the guard.
-
Page 7: Delivery Set
DELIVERY SET — 1 pc. Screws and dowels — 4 pcs. Plastic screwdriver (for models with a timer) — 1 pc. User’s manual — 1 pc. Packing box — 1 pc. BRIEF DESCRIPTION The product described herein is a mixed-flow inline fan for supply or extract ventilation of premises. The fan is designed for connection to ø... -
Page 8: Operation Guidelines
OPERATION GUIDELINES The fan is rated for connection to single-phase AC 120 V/60 Hz power mains. The fan is rated for continuous operation. The unit is rated as a class II electric appliance. Air motion direction in the system must match the pointer on the fan casing. Ingress protection rating against access to hazardous parts and water ingress —... -
Page 9: Technical Maintenance
CONTROL LOGIC It is possible to control the fan rotation speed without options by voltage, as well as by thyristor controllers. The speed controller is purchased separately. Warning! When adjusting the voltage, make sure there is no unusual noise or vibration at reduced motor speed. The motor current may exceed the rated current during voltage regulation. -
Page 10: Storage And Transportation Regulations
TROUBLESHOOTING Problem Possible reasons Troubleshooting Make sure the power supply line No power supply. is connected correctly, otherwise When the unit is connected to power troubleshoot the connection error. mains, the fan does not rotate and does not respond to any controls. Internal connection fault. -
Page 11: Manufacturer's Warranty
Production meets standard operating requirements in the USA and Canada. Vents US warrants to the original purchaser of the unit that it will be free from defects in materials or workmanship for a period of 24 months from the date of original purchase. The Vents US warrants to the original purchaser of the unit that the integrated control unit will be free from defects in materials and workmanship for a period of 24 months from the date of original purchase. - Page 12 This warranty supersedes all prior warranties. If proof of sales date is absent, warranty period is calculated from the production date. The unit can be exchanged at the following address: Vents-US 400 Murray Road, Cincinnati, OH 45217, USA Tel: 1-888-640-0925, 513-583-5786, Fax: 513-268-4597 E-mail: support@ventsus.com...
- Page 13 min 1 m...
- Page 19 Quality Inspector’s Stamp Sold by (name and stamp of the seller) Manufacture Date Purchase Date...
- Page 20 Certificate of acceptance TT PRO________________________ The fan is recognized as serviceable VUSA77EN-05...
