Summary of Contents for ELPRO ECOLOG-NET LH2

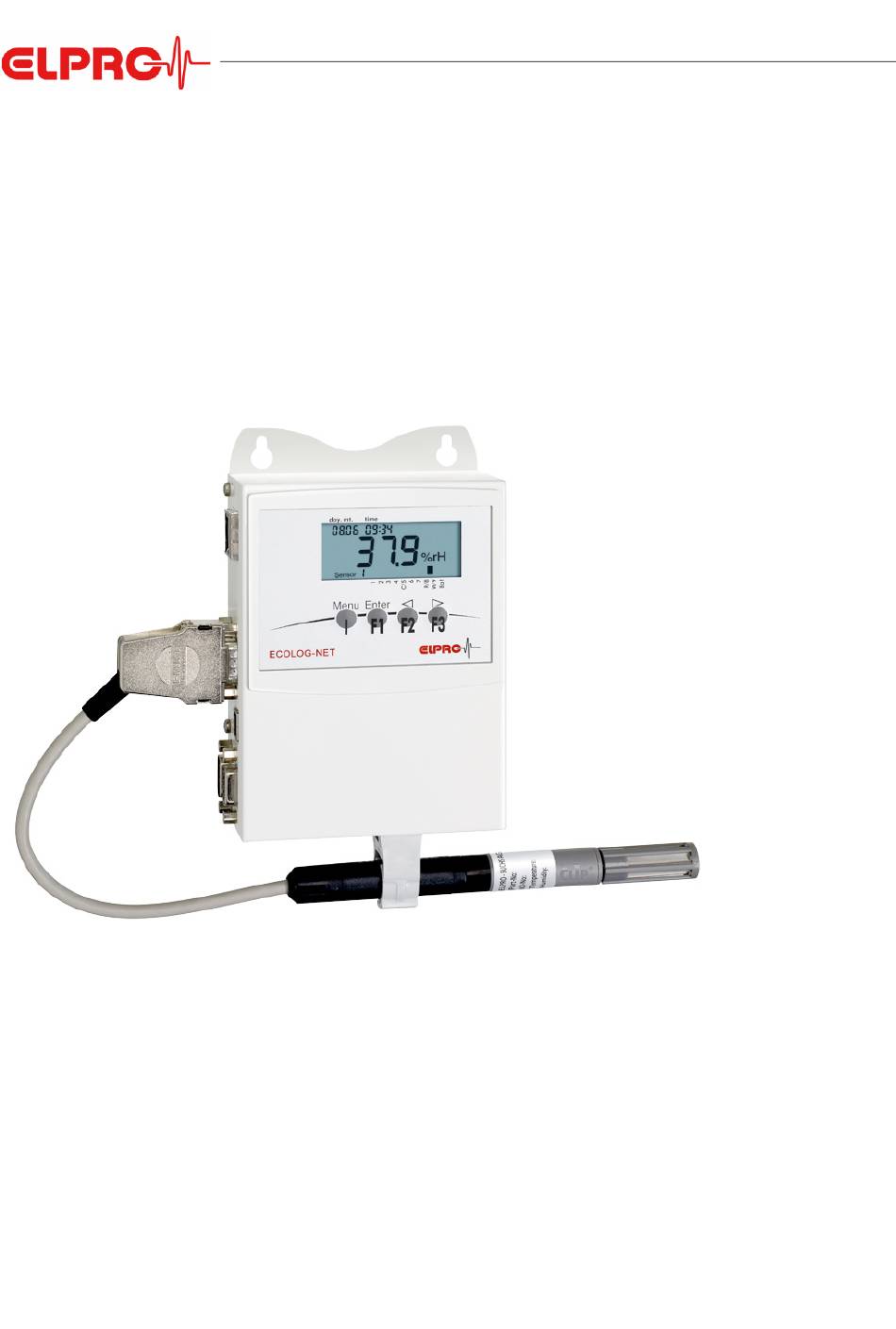

- Page 1 ECOLOG-NET LH2 Operation Manual ECOLOG-NET LH2 EL6008Ed...
- Page 2 In the event of a guarantee claim, customers receive a repair cost estimate from ELPRO-BUCHS AG to obtain the corresponding consent before starting work. The customer will bear the transport costs incurred for any repairs carried out by ELPRO-BUCHS AG. The DAP (value added tax) is borne by ELPRO- BUCHS AG.
-
Page 3: Table Of Contents
Datalogger setup ....................11 Extended setup.....................11 6. Threshold value and alarm function ..........12 Conditions......................12 Window: Setup of Alarm parameters ..............13 Threshold value violation ..................13 Collective alarm contact functions ................14 6.4.1 Time response collective alarm ............14 Buzzer........................17 EN - 3 ECOLOG-NET LH2 EL6008Ed... - Page 4 Supply, Contact input, Alarm 2................20 9. Alarm diagrams ....................21 Alarm; Connector white..................21 9.1.1 Elpro telephone dialing device............21 Supply; Connector red ..................21 10. Status and error messages ..............22 10.1 Datalogger display and elproLOG ANALYZE ............22 10.2 Datalogger status in elproLOG ANALYZE ............
- Page 5 As a result, images, descriptions and scope of delivery are not binding! The release of this document is available on the printed and archived original only. This manual is valid beginning with firmware version 8.14 elproLOG ANALYZE 3.31 EN - 5 ECOLOG-NET LH2 EL6008Ed...
-
Page 6: Product Description
P r o d u c t d e s c r i p t i o n Product description 2 rH/T sensors The ECOLOG-NET LH2 Dataloggers are network compatible 4-channel datalogger for recording 64,000 -40°C ... 70°C measured values. Temperatures and relative humidity are recorded. The data are loaded to the PC via 0% ... -
Page 7: General Application And Safety Information
In the event that both connections are busy, no data exchange is possible via the LAN. DURING COMMUNICATION WITH THE ELPROLOG ANALYZE OR ELPROMONITOR SOFT- WARE ECOLOG-NET LH2 ARE NOT ABLE TO LOG MEASUREMENT VALUES. 3.1 Assign network address ... -
Page 8: Precautionary Measures For Handling Units Containing Lithium Batteries
ANALYZE Function: Overlaying dataloggers This function allows graphs from multiple dataloggers to be ECOLOG-NET LH2displayed simultaneously. To utilize this function, each datalogger must have the same recording interval. 5.1 Datalogger setup 8 - EN ECOLOG-NET LH2 EL6008Ed... -
Page 9: Configuring The Datalogger
For additional installation information see the elproLOG ANALYZE operating instructions, SE3003E, or the online help feature. This manual can be found on the ELPRO homepage at www.elpro.com/Down- load/Data Sheets/ECOLOG-NET networkable datalogger. The datalogger requires an external power supply for the operation of the LAN interface. After connection to the power supply, it takes approximately 1 minute until the datalogger responds via the LAN. -
Page 10: Menu
Automatic jump back to menu item 1 or 2 or 3 ERROR 5: MODULE DOES NOT RESPOND DURING DATA READ-OUT - THE DATALOGGER IS NOT IN MEASURING MODE - PRESS F1/F3 TO EXIT THE MENU 10 - EN ECOLOG-NET LH2 EL6008Ed... -
Page 11: Settings In Elprolog Analyze
- Log Interval - Module Tag - Zoom Preset - Sensor - PIN elproLOG ANALYZE Function: Overlaying The data loggers ECOLOG-NET LH2 can be superimposed. 5.2 Extended setup Name Function Lower one-point adjustment: programmable... Upper one-point adjustment: programmable... Those 3 functions are used for adjustments Direct calibration by values ... -
Page 12: Threshold Value And Alarm Function
T h r e s h o l d v a l u e a n d a l a r m f u n c t i o n Threshold value and alarm function Sensor selection The ECOLOG-NET LH2 datalogger has a feature for monitoring threshold values. Threshold values and alarm parameters are defined in the "Setup of Alarm Parameters" window. Threshold values are only mon- ... -
Page 13: Window: Setup Of Alarm Parameters
2. The text: ALARM is displayed when the conditions for an alarm are fulfilled and depending upon the selected alarm output (self-sustaining), and the display/power-saving mode. 3. If an alarm is triggered, the ECOLOG-NET LH2 has a collective alarm function. This function is simul- ... -
Page 14: Collective Alarm Contact Functions
THRESHOLD VALUES ARE NOT MONITORED WHEN THE LOGGER IS IN STOP MODE. 6.4 Collective alarm contact functions Alarm signaling: Datalogger type ECOLOG-NET LH2 has 4 possibilities for alarm signaling: - Relay contact S - Relay contact S - Alarm 1 This is a potential-free switch-over contact. - Page 15 Alarm protocol with 2 or 3 entries: ANALYZE Alarm on/off/acknowledged. Represents an alarm till the end of the limit value vio- MONITOR lation (5 cycle times). The duration of the self-retention period is not represented as an alarm. EN - 15 ECOLOG-NET LH2 EL6008Ed...
- Page 16 Alarm with time delay not logged ECOLOG-NET Alarm contact reacts after the delay time has elapsed ANALYZE No alarm measurement Alarm protocol with 2 entries: ANALYZE alarm on/off. MONITOR Represents an alarm for 3 cycle time. 16 - EN ECOLOG-NET LH2 EL6008Ed...
-
Page 17: Buzzer
The buzzer is always active since it cannot be switched on or off via the elproLOG software. If the buzzer Buzzer is disruptive, it can be deactivated by removing the jumper. Jumper Datalogger with the back removed EN - 17 ECOLOG-NET LH2 EL6008Ed... -
Page 18: Contact Inputs D1 And D2
Alarm forwarding is used in combination with the elproMONITOR software. The status (alarm / no alarm) of the contacts is checked during the update of the monitor data. Status changes between two updates are not detected. 18 - EN ECOLOG-NET LH2 EL6008Ed... -
Page 19: Pin Assignments And Connections
Alarm contact (relay contact) Relay contact represented in dead state. Connection sa - sc: Alarm Connection sb - sc: no a Alarm This relay is actuated (sb - sc) as soon as the power supply is available. EN - 19 ECOLOG-NET LH2 EL6008Ed... -
Page 20: Supply, Contact Input, Alarm 2
ATTENTION: The starting current amounts to approx. 1.6A for a short time. If more than one dataloggeris being operated using the same power supply, the power supply must be appropriately powerful. 20 - EN ECOLOG-NET LH2 EL6008Ed... -
Page 21: Alarm Diagrams
- Semi-conductor contact! Use only for DC voltage (DCV) - Switch load max. 24VDC; 200mA 9.1.1 Elpro telephone dialing device - Alarm: Threshold violation, loss of datalogger power or cable damage between datalogger and telephone dialing device. - Jumper 16, see image - Settings B-TEL 2 Set "Connection type"... -
Page 22: Status And Error Messages
Maintenance). Battery The status of the batteries is displayed in the (elproLOG ANALYZE) status information. Battery replacement: 11. Maintenance Firmware The version of the firmware is documented in the status. 22 - EN ECOLOG-NET LH2 EL6008Ed... -
Page 23: Maintenance
Replacing battery AFTER THE BATTERIES ARE CHANGED, THE BATTERY CHANGE TIME MUST BE SET (ELPROLOG ANALYZE SOFTWARE - EXTENDED SETUP - PROGRAMMING BATTERY CHANGE TIME...) OTHERWISE THE ENERGY COUNTER WILL NOT FUNCTION CORRECTLY! EN - 23 ECOLOG-NET LH2 EL6008Ed... -
Page 24: Technical Data
800646 and 800647 0%rH..100%rH, dew proof Sensors Ambient tem- perature -35°C.. 55°C Data logger Protective class IP30 42VAC or VDC Alarm contact Switching load 500mA Switching load 24VDC 200mA Alarm output Alarm cable, max. length 24 - EN ECOLOG-NET LH2 EL6008Ed... -
Page 25: Dimensional View
T e c h n i c a l d a t a 12.3 Dimensional view 1. Battery; for a battery exchange, the rear wall has to be removed. 2. Screws for the attachment of the rear wall EN - 25 ECOLOG-NET LH2 EL6008Ed... -
Page 26: Accessories
Connector cable for rH / T probe 15m 800791 Connector cable for rH / T probe 20m 800359 800362 Various alarm flashers 800363 800556 Replacement battery, set of 2, can be stored for up to 5 years 26 - EN ECOLOG-NET LH2 EL6008Ed... -
Page 27: Declaration Of Conformity
T e c h n i c a l d a t a 12.5 Declaration of conformity EN - 27 ECOLOG-NET LH2 EL6008Ed... -
Page 28: Revision History
A. Gubler 04.03.2011 First edition; replaces EL6003Bk A. Gubler 01.10.2012 new Graphic A. Gubler 07.03.2013 Polarity of D1 changed to Vin A. Gubler 13.01.2014 Several minor text corrections A. Gubler 21.11.2016 New CE declaration EN - 28 ECOLOG-NET LH2 EL6008Ed... -
Page 29: Index
Display 6 Threshold value violation 13 Display 5 E 12 Threshold values 12 Documentation for the installation 9 Time response 14 ECOLOG-NET LH2 6 USB connection 7 elproLOG ANALYZE 9 elproLOG MONITOR 9 Environmental conditions 7 Verification of the installation 9... - Page 30 (Head Office) ELPRO-BUCHS AG Langäulistrasse 45 9470 Buchs SWITZERLAND e-mail: swiss@elpro.com For local representatives see: www.elpro.com Operation Manual ECOLOG-NET LH2 EL6006Ed 11.2016...
