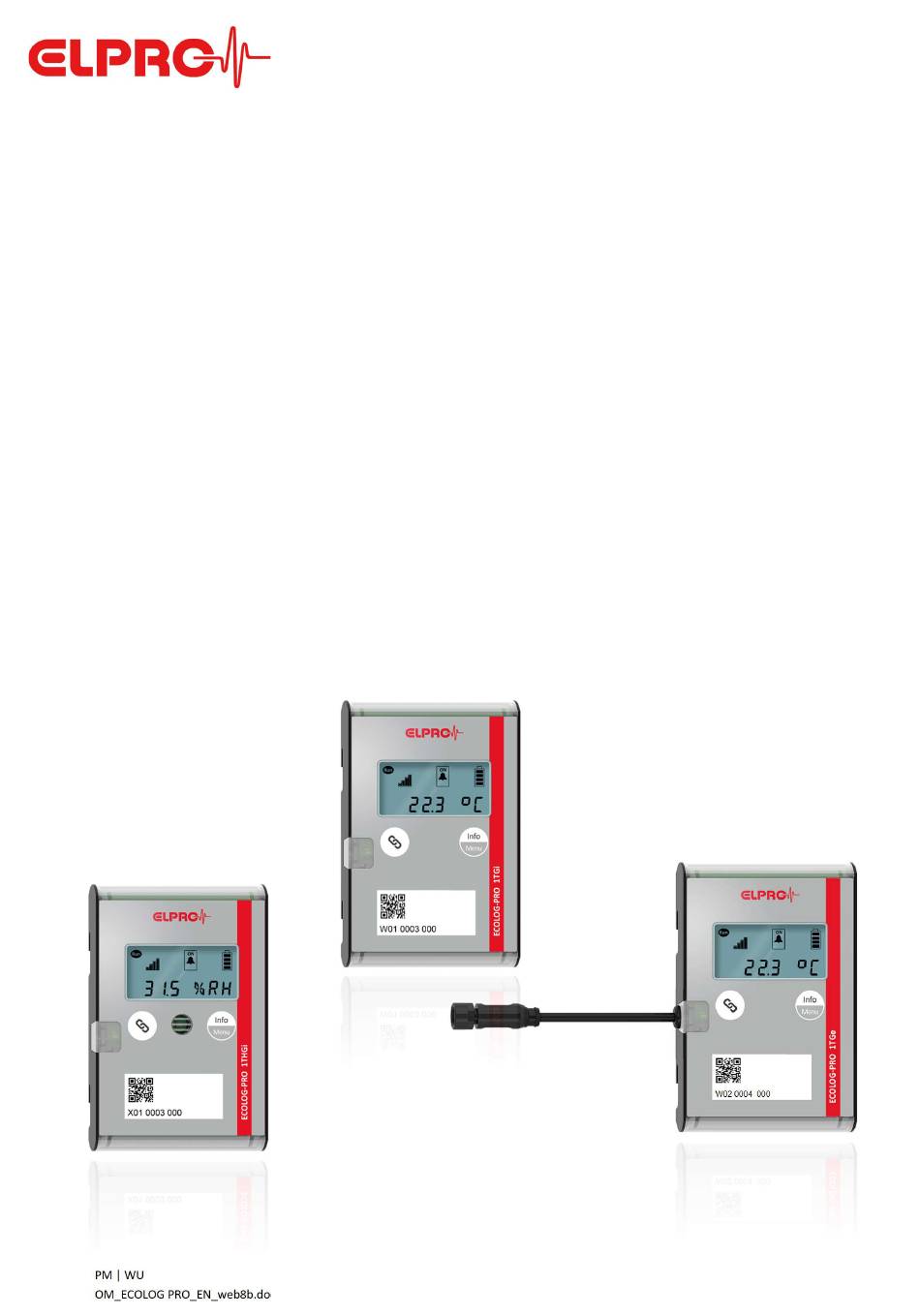

- Page 1 ECOLOG-PRO G Operation Manual PM | WU OM_ECOLOG PRO_EN_web8b.docx | Page 1 / 18...
-
Page 2: Table Of Contents
Table of Contents Safety Instructions ..........................3 System Overview ..........................4 Brand: ELPRO ............................ 4 Model: ECOLOG-PRO G ........................4 ECOLOG-PRO G Types ........................4 Functionality and Modes ........................5 Elements ............................5 3.1.1 Generic elements ......................... 5 3.1.3 Specific elements .......................... 6 Display .............................. -
Page 3: Safety Instructions
20 seconds before inserting new batteries. Material safety data sheet according to provisions of directive 91/155/EEC and shipping information are available from ELPRO. Do not subject the batteries to mechanical stress nor dismantle them. The leaking battery fluid is highly corrosive and can generate severe heat when it comes into contact with moisture or it can ignite fire. -
Page 4: System Overview
The measured values are transmitted via the cellular network to a monitoring software (ELPRO Cloud) which stores and analyzes the data, provides alerts if alarm limits are violated, and generates reports. The system provides superior visibility and transparency in meeting GxP requirements. -
Page 5: Functionality And Modes
3 Functionality and Modes Unless otherwise noted the following information applies equally to all three ECOLOG-PRO G models. After configuration of the data logger measured values for temperature and relative humidity (ECOLOG-PRO 1THGi only) are recorded, stored and evaluated with regard to the defined alarm criteria. -
Page 6: Specific Elements
3.1.3 Specific elements Logger type Element ECOLOG-PRO 1TGe M8 connector for Pt100 probe Compare chapter 5.2 - External Pt100 Probes for ECOLOG-PRO 1TGe 1TGe for available probes ECOLOG-PRO 1THGi Slot for combined temperature / humidity sensor 3.2 Display Icon Name Description ... -
Page 7: States
3.3 States ECOLOG-PRO G devices are mainly used to monitor temperature sensitive products through stationary use. The device has various configuration options available. The device states are visualized below and further described in subsequent chapters. The workflow options may vary depending from configuration and device type (e.g. -
Page 8: Menu
3.4 Menu The ECOLOG-PRO G family feature a menu to operate the device: To enter the menu, press the Menu button for at least two seconds To switch between the menu options, press the Info button shortly ... -
Page 9: Further Instructions
4 Further instructions 4.1 Pairing procedure 4.2 Calibration Device Calibration is managed by elproCLOUD. 4.3 Expiry Date The Expiry Date indicates the end of the runtime of the device. The date (MMM/yyyy) is visible via elproCLOUD. Runtime is calculated from the initial start date. Device stops automatically (logging and OM_ECOLOG PRO_EN_web8b.docx | Page 9 / 18... -
Page 10: Accessories
PRO xG data loggers if required. The bracket is made of solid ABS plastic to protect the data logger but not influence the communication. It consists of an upper and a lower part. The ECOLOG-PRO G is inserted into the lower holder from above. -
Page 11: External Pt100 Probes For Ecolog-Pro 1Tge
5.2 External Pt100 Probes for ECOLOG-PRO 1TGe ECOLOG-PRO 1TGe can be used for different applications, depending on the sensor element. ELPRO offers standard probes for three main applications: Refrigerator & freezer monitoring: Freezer (-25 °C..-15°C, typical) Fridge (+2 °C..+8 °C) ... -
Page 12: Extension Of Sensor Cables
PRO_PT100_P20D5_PLA2.65_M8 (part number 802291) 5.3 Extension of sensor cables An extension cable with two M8 connectors at a length of 1m is also available to attach the data logger and the probe. ATTENTION: Total cable length (including sensor and cable tail on the data logger) must not exceed 3 m! ECA_PLA_1M_M8 (part number 802282) OM_ECOLOG PRO_EN_web8b.docx | Page 12 / 18... -
Page 13: M8 Connector Incl. Mounting Service On Pt100 Probe
5.4 M8 connector incl. mounting service on Pt100 probe ELPRO offers a mounting service, adding an M8 connector to a Pt100 temperature sensor in order to use any 4-wire Pt100 probe in combination with ECOLOG-PRO 1TGe. CTR_M8_SER (part number 802289) -
Page 14: Disposal
6 Disposal a) Device Electronic devices are recyclable and do not belong in the household waste. Dispose of the product at the end of its service life in accordance with applicable laws. Remove any batteries and dispose of them separately from the product. b) Batteries You are legally obliged to dispose of all used batteries according to applicable laws;... -
Page 15: Declaration Of Conformity
7 Declaration of Conformity 7.1 EU Declaration OM_ECOLOG PRO_EN_web8b.docx | Page 15 / 18... -
Page 16: Fcc/Ised Regulatory Notices
7.2 FCC/ISED Regulatory notices OM_ECOLOG PRO_EN_web8b.docx | Page 16 / 18... -
Page 17: Ncc Regulatory Notices
7.3 NCC Regulatory notices In order to reduce the effects of electromagnetic waves, please use the appropriate MPE standard value: 0.9 mW/cm², measured value: 0.012239 mW/cm², recommended for use with the antenna at least 20 cm from the human body. 減少電磁波影響，請妥適使用... -
Page 18: Revision History
8 Revision History Date Version Author Description 04. March 2021 SIKAUF Initial Version ELPRO-BUCHS AG Langäulistrasse 45 9470 Buchs SWITZERLAND E-Mail: swiss@elpro.com For local agencies see: www.elpro.com OM_ECOLOG PRO_EN_web8b.docx | Page 18 / 18...
