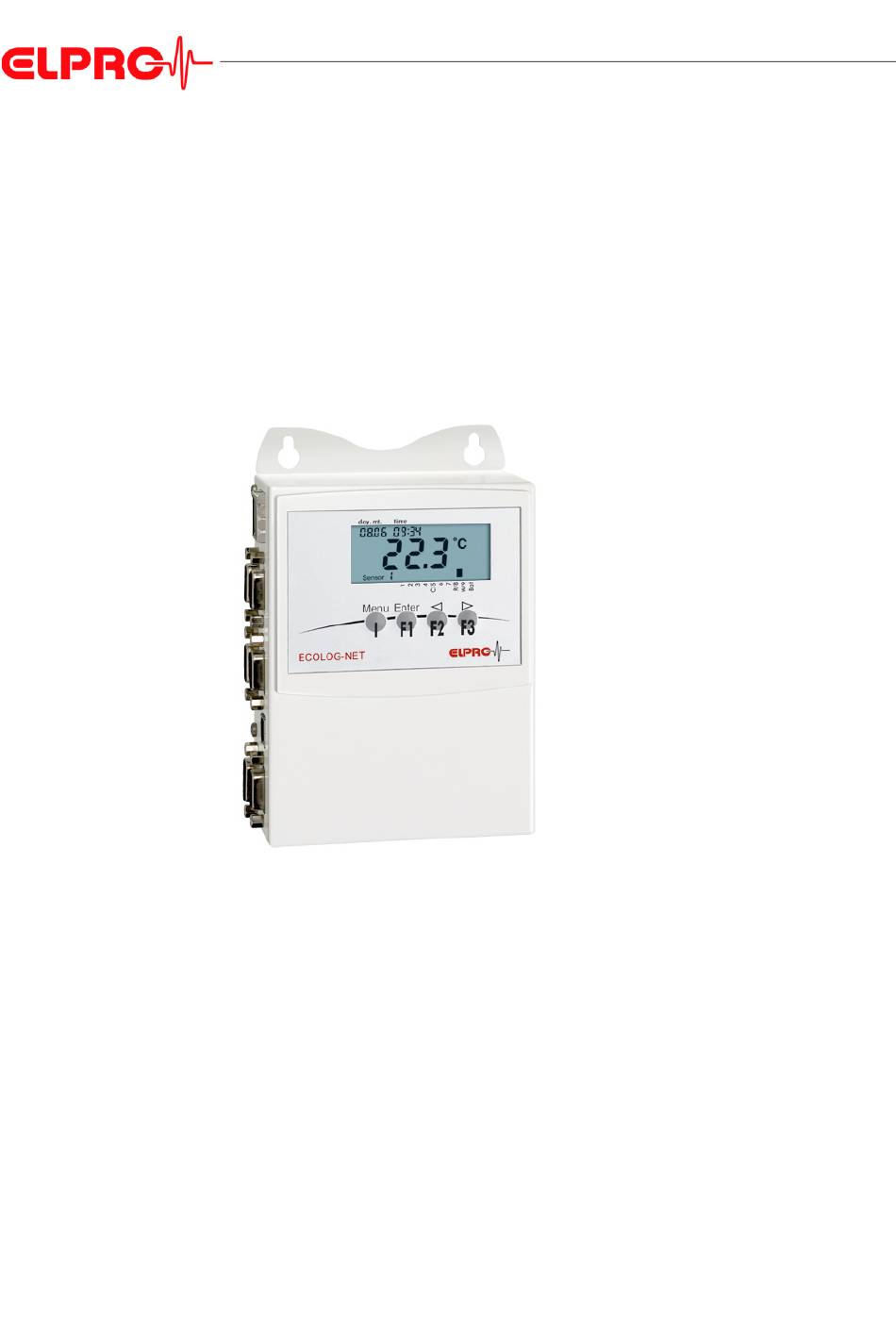

- Page 1 ECOLOG-NET LA8 Operation Manual ECOLOG-NET LA8 EL6005Ee...
- Page 2 In the event of a guarantee claim, customers receive a repair cost estimate from ELPRO-BUCHS AG to obtain the corresponding consent before starting work. The customer will bear the transport costs incurred for any repairs carried out by ELPRO-BUCHS AG. The DAP (value added tax) is borne by ELPRO- BUCHS AG.
-
Page 3: Table Of Contents
7. Contact inputs D1 and D2 ................20 8. Pin assignments and connections ............21 Sensor 1 - 8 ......................21 Alarm ........................22 Supply, Contact inputs, Alarm 2 ................23 9. Alarm diagrams ....................24 Alarm; Connector white ..................24 EN - 3 ECOLOG-NET LA8 EL6005Ee... - Page 4 ....................32 13.1 Measuring ranges and Accuracy................32 13.2 Viewing ranges..................... 32 13.3 Operating range ....................32 13.4 Dimensional view ....................33 13.5 Accessories......................34 13.6 Declaration of conformity ..................35 Index ..........................37 4 - EN ECOLOG-NET LA8 EL6005Ee...
- Page 5 As a result, images, descriptions and scope of delivery are not binding! The release of this document is available on the printed and archived original only. This manual is valid from firmware version 1.07 EN - 5 ECOLOG-NET LA8 EL6005Ee...
-
Page 6: Product Description
P r o d u c t d e s c r i p t i o n Product description 8-channel The ECOLOG-NET LA8 dataloggers are network compatible 8-channel datalogger for recording 64,000 4-20mA measured values. 4-20mA signals can be collected. The data are loaded to the PC via local network. In 64,000 measured the event of a power outage, all data is retained and the internal clock continues to run. -
Page 7: General Application And Safety Information
- IR radiation (heat) and superheated steam can damage the surface coating of the casing - There is a risk that the battery may explode if the logger is used under microwave radiation Initial startup BEFORE THE INITIAL START-UP THE DATALOGGER MUST BE AT ROOM TEMPERA- TURE! EN - 7 ECOLOG-NET LA8 EL6005Ee... -
Page 8: Precautionary Measures For Handling Units Containing Lithium Batteries
2.7 Logger display / Power-saving mode Power-saving mode - The datenlogger ECOLOG-NET LA8 has a power-save mode which switches off the display. As a result, display measurements are only made during the defined log interval.. Four small circles located in the display indi- ... -
Page 9: Configuring The Datalogger
For additional network information see ECOLOG-NET service instruction IT6001A. This manual can be found on the ELPRO homepage at www.elpro.com/Download/Data Sheets/ ECOLOG-NET networkable datalogger. The datalogger requires an external power supply for the operation of the LAN interface. After connection to the power supply, it takes approximately 1 minute until the datalogger responds via the network. -
Page 10: Verification Of The Installation
3.2.6 Verification of the installation Check the installation and ensure that sensor positions, alarm parameters and network addresses are cor- rect. Test connectors can be used as an aid in simulating defined measured values. 10 - EN ECOLOG-NET LA8 EL6005Ee... -
Page 11: Menu
Automatic jump back to menu item 1 or 2 or 3 ERROR 5: MODULE DOES NOT RESPOND DURING DATA READ-OUT - THE DATALOGGER IS NOT IN MEASURING MODE - PRESS F1/F3 TO EXIT THE MENU EN - 11 ECOLOG-NET LA8 EL6005Ee... -
Page 12: Settings In Elprolog Analyze
5. Opens the window used to set the parameters for the 8 possible measurement ranges 5.1.3 Sen- sor profile 6. Open the window that enables the assignment of probes to the 4 representable axes in the elproLOG graphic 5.1.4 Axis assignment 12 - EN ECOLOG-NET LA8 EL6005Ee... -
Page 13: Sensor Profile
7. Limit function for measurement values outside of the measurement range from 4 - 20mA for the defi- ned range. Values over 20.4 mA result in O.F. Measurements below 3.6mA result in U.F. N.C. is not shown 10. Status and error messages 5.1.4 Axis assignment Prior axis assignment EN - 13 ECOLOG-NET LA8 EL6005Ee... -
Page 14: Extended Setup
- Delete: Entering a password in the "old password" line alone deletes the password Programming of battery change time... This function restarts the radio datalogger after a battery replacement ( 2. General application and safety information). 14 - EN ECOLOG-NET LA8 EL6005Ee... -
Page 15: Threshold Values And Alarm Parameters
T h r e s h o ld v a l u e s a n d a l a r m p a r a m e t e r s Threshold values and alarm parameters The ECOLOG-NET LA8 datalogger has a feature for monitoring threshold values. Threshold values and Sensor selection ... -
Page 16: Window: Setup Of Alarm Parameters
INTERVAL IF SHORTER INTERVALS HAVE BEEN SET. THE TEXT: ALARM AND ADDI- TIONAL ALA IS DISPLAYED IN THE POWER SAVING MODE BY FULFILLING THE RELE- VANT CONDITIONS. THRESHOLD VALUES ARE NOT MONITORED WHEN THE LOGGER IS IN STOP MODE. 16 - EN ECOLOG-NET LA8 EL6005Ee... -
Page 17: Collective Alarm Contact Functions
Alarm contact responds immediately. ANALYZE No alarm measurement, because the alarm is shorter than the logging interval. ANALYZE Alarm protocol with 2 entries - alarm on/off MONITOR Represents an alarm for 1 cycle time. EN - 17 ECOLOG-NET LA8 EL6005Ee... - Page 18 "Alarm on" is logged after delay time has elapsed. MONITOR Represents an alarm for 3 cycle time. The end of the third cycle already falls in a new, delayed alarm and therefore it is not recognized as an alarm. 18 - EN ECOLOG-NET LA8 EL6005Ee...
- Page 19 Alarm with time delay not logged ECOLOG-NET Alarm contact reacts after the delay time has elapsed ANALYZE No alarm measurement ANALYZE Alarm protocol with 2 entries: alarm on/off. MONITOR Represents an alarm for 3 cycle time. EN - 19 ECOLOG-NET LA8 EL6005Ee...
-
Page 20: Contact Inputs D1 And D2
Alarm forwarding is used in combination with the elproLOG MONITOR software. The status (alarm / no alarm) of the contacts is checked during the update of the monitor data. Status changes between two updates are not detected. 20 - EN ECOLOG-NET LA8 EL6005Ee... -
Page 21: Pin Assignments And Connections
- FOR CABLE LENGTHS >30M USE SHIELDED CABLE - MAXIMUM CABLE LENGTH 200M - ENSURE A GOOD CONTACT BETWEEN THE SCREEN AND THE CONNECTOR Sensor Signal even. shield Connecting a 2-wire transmitter Connecting a 3-wire Sensor Signal even. shield transmitter EN - 21 ECOLOG-NET LA8 EL6005Ee... -
Page 22: Alarm
Alarm output 1 Alarm output 1(open) - Opens in the event of an alarm - Semi-conductor contact! Use only for DC voltage (DCV) - No floating contact - Alarm cable max. 15m long 22 - EN ECOLOG-NET LA8 EL6005Ee... -
Page 23: Supply, Contact Inputs, Alarm 2
External power sup- ply unit ATTENTION: The starting current is temporarily ca 1.6A (100ms). If more than one dataloggeris being operated using the same power supply, the power supply must be appropriately powerful. EN - 23 ECOLOG-NET LA8 EL6005Ee... -
Page 24: Alarm Diagrams
- Semi-conductor contact! Use only for DC voltage (DCV) - Switch load max. 24VDC; 200mA 9.1.1 Elpro telephone dialing device - Alarm: Threshold violation, loss of datalogger power or cable damage between datalogger and telephone dialing device. - Jumper 16, see image - Settings B-TEL 2 Set "Connection type"... -
Page 25: Status And Error Messages
The status of the batteries is displayed in the (elproLOG ANALYZE) status information. Battery Battery replacement: 12. Maintenance The version of the firmware is documented in the status. Firmware EN - 25 ECOLOG-NET LA8 EL6005Ee... -
Page 26: Transmitter
Supply Vsens brown brown Ground white white Sensor 2 8 Temp. blue yellow Supply Vsens brown brown Ground white white Pt100 with 4-20mA Transmitter and cable connector M12; 800513 Cable length max. 12m 26 - EN ECOLOG-NET LA8 EL6005Ee... -
Page 27: Humidity
- length > 30m - with M12 connector - needed 800508 DB9 Function Signal LA8 Wire color Wire color Ground white white Temperature SA back green Supply Vsens brown brown Humidity blue yellow EN - 27 ECOLOG-NET LA8 EL6005Ee... -
Page 28: Pressure
- needed 800508 Function Signal LA8 Wire color Wire color Sensor 1 Pressure blue yellow Supply Vsens brown brown Ground white white Sensor 2 Pressure blue yellow Supply Vsens brown brown Ground white white 28 - EN ECOLOG-NET LA8 EL6005Ee... -
Page 29: Differential Pressure
DB9 Function Signal LA8 Wire color Wire color Terminal Sensor 1 3 blue yellow ‰ Supply Vsens brown brown Ground white white Sensor 2 8 blue yellow ‰ Supply Vsens brown brown Ground white white EN - 29 ECOLOG-NET LA8 EL6005Ee... -
Page 30: Co2
DB9 Function Signal LA8 Wire color Wire color Terminal Sensor 1 3 blue yellow Supply Vsens brown brown Ground white white Sensor 2 8 blue yellow Supply Vsens brown brown Ground white white 30 - EN ECOLOG-NET LA8 EL6005Ee... -
Page 31: Maintenance
Replacing battery AFTER THE BATTERIES ARE CHANGED, THE BATTERY CHANGE TIME MUST BE SET (ELPROLOG ANALYZE SOFTWARE - EXTENDED SETUP - PROGRAMMING BATTERY CHANGE TIME...) OTHERWISE THE ENERGY COUNTER WILL NOT FUNCTION CORRECTLY! EN - 31 ECOLOG-NET LA8 EL6005Ee... -
Page 32: Technical Data
IP30 Working resistance 50 ...100Ohm Power supply Standard application 24VDC 13.5 Accessories Alarm contact Switching load 42VAC or VDC 500mA Alarm output 1 and 2 Switching load 24VDC 200mA Alarm cable, max. length 32 - EN ECOLOG-NET LA8 EL6005Ee... -
Page 33: Dimensional View
T e c h n i c a l d a t a 13.4 Dimensional view 1. Battery; for a battery exchange, the rear wall has to be removed. 2. Screws for the attachment of the rear wall EN - 33 ECOLOG-NET LA8 EL6005Ee... -
Page 34: Accessories
Plug M12 (m) with insulation displacement connection technology 800359 Various alarm flashers 800362 800363 800556 Replacement battery, set of 2, can be stored for up to 5 years Transmitter, sensor and cable according ELPRO price list 34 - EN ECOLOG-NET LA8 EL6005Ee... -
Page 35: Declaration Of Conformity
T e c h n i c a l d a t a 13.6 Declaration of conformity EN - 35 ECOLOG-NET LA8 EL6005Ee... - Page 36 A. Gubler 26.11.2009 Reference to elproLOG ANALYZE operating instructions (SE3003E) and online help A. Gubler 01.10.2012 ECOLOG-NET WA8 deleted, small changes (Layout), new graphic, chapter 6.4.12, A. Gubler 16.01.2014 DB9 added, several minor text corrections 36 - EN ECOLOG-NET LA8 EL6005Ee...
-
Page 37: Index
Display 6 UPS (uninterruptible power supply Display 5 E 15 unit) 6 Documentation for the installation 9 USB connection 7 ECOLOG-NET LA8 6 Verification of the installation 10 elproLOG ANALYZE 9 Viewing ranges 32 elproLOG CONFIG 9 elproLOG MONITOR 9... - Page 38 (Head Office) ELPRO-BUCHS AG Langäulistrasse 45 CH-9470 Buchs SG Switzerland e-mail: swiss@elpro.com For local representatives see: www.elpro.com Operation Manual ECOLOG-NET LA8 EL6005Ee 01.2014...
