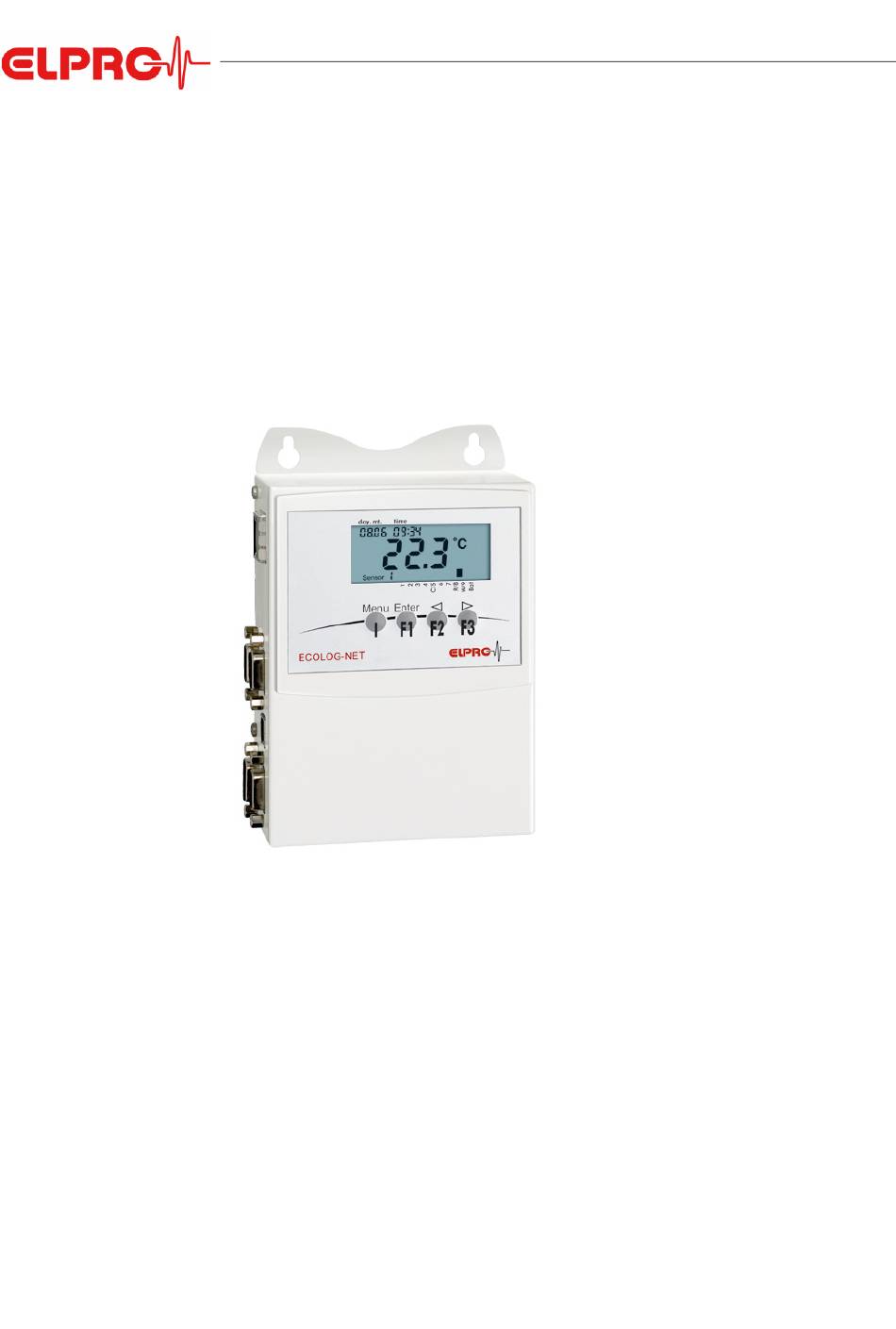

  • Page 1 ECOLOG-NET LP4 Operation Manual ECOLOG-NET LP4 EL6006Ee...
  • Page 2 In the event of a guarantee claim, customers receive a repair cost estimate from ELPRO-BUCHS AG to obtain the corresponding consent before starting work. The customer will bear the transport costs incurred for any repairs carried out by ELPRO-BUCHS AG. The DAP (value added tax) is borne by ELPRO- BUCHS AG.

  • Page 3: Table Of Contents

    6. Threshold value and alarm function ..........13 Conditions......................13 Window: Setup of Alarm parameters ..............14 Threshold value violation ..................14 Collective alarm contact functions ................15 6.4.1 Time response collective alarm ............15 7. Contact inputs D1 and D2 ................18 EN - 3 ECOLOG-NET LP4 EL6006Ee...
  • Page 4 Supply, Contact input, Alarm 2................225 9. Alarm diagrams ....................23 Alarm; Connector white..................23 9.1.1 Elpro telephone dialing device............23 Supply; Connector red ..................23 10. Status and error messages ..............24 10.1 Datalogger display and elproLOG ANALYZE ............24 10.2 Datalogger status in elproLOG ANALYZE ............
  • Page 5 As a result, images, descriptions and scope of delivery are not binding! The release of this document is available on the printed and archived original only. This manual is valid beginning with firmware version 8.14 elproLOG ANALYZE 3.31 EN - 5 ECOLOG-NET LP4 EL6006Ee...

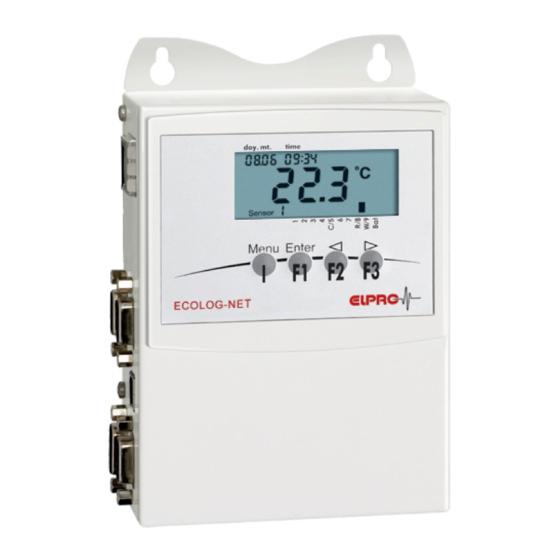

  • Page 6: Product Description

    P r o d u c t d e s c r i p t i o n Product description 4 Pt100 sensors ECOLOG-NET LP4 dataloggers are network-ready 4-channel dataloggers for recording temperature val- -200°C ... 600°C ues between -200°C and 600°C using Pt100 sensors in 3- or 4-wire circuit. 64,000 measured values can 3- or 4-wire be recorded.

  • Page 7: Instructions And Safety Guidelines

    - There is a risk that the battery may explode if the logger is used under microwave radiation Initial startup  BEFORE THE INITIAL START-UP THE DATALOGGER MUST BE AT ROOM TEMPERA- TURE!  NOTES TO THE POWER SUPPLY UNIT 8.3 SUPPLY, CONTACT INPUT, ALARM 2 EN - 7 ECOLOG-NET LP4 EL6006Ee...

  • Page 8: Precautionary Measures For Handling Units Containing Lithium Batteries

    ANALYZE Function: Overlaying dataloggers  This function allows graphs from multiple dataloggers to be ECOLOG-NET LP4displayed simultaneously.  To utilize this function, each datalogger must have the same recording interval. 5.1 Datalogger setup 8 - EN ECOLOG-NET LP4 EL6006Ee...

  • Page 9: Configuring The Datalogger

    For additional network information see ECOLOG-NET service instruction IT6001A. This manual can be found on the ELPRO homepage at www.elpro.com/Download/Data Sheets/ECO- LOG-NET networkable datalogger. The datalogger requires an external power supply for the operation of the LAN interface. After connection to the power supply, it takes approximately 1 minute until the datalogger responds via the network.

  • Page 10: Verification Of The Installation

    3.2.5 Verification of the installation Check the installation and ensure that sensor positions, alarm parameters and network addresses are cor- rect. Test connectors can be used as an aid in simulating defined measured values. 10 - EN ECOLOG-NET LP4 EL6006Ee...

  • Page 11: Menu

    Automatic jump back to menu item 1 or 2 or 3 ERROR 5: MODULE DOES NOT RESPOND DURING DATA READ-OUT - THE DATALOGGER IS NOT IN MEASURING MODE - PRESS F1/F3 TO EXIT THE MENU EN - 11 ECOLOG-NET LP4 EL6006Ee...

  • Page 12: Settings In Elprolog Analyze

    A selection can be made between °C and °F Set new password... Programming of battery change time... This function restarts the radio datalogger after a bat-  tery replacement ( 2. Instructions and safety guide- lines). 12 - EN ECOLOG-NET LP4 EL6006Ee...

  • Page 13: Threshold Value And Alarm Function

    T h r e s h o l d v a l u e a n d a la r m f u n c t i o n Threshold value and alarm function The ECOLOG-NET LP4 datalogger has a feature for monitoring threshold values. Threshold values and Sensor selection ...

  • Page 14: Window: Setup Of Alarm Parameters

    2. The text: ALARM is displayed when the conditions for an alarm are fulfilled and depending upon the selected alarm output (self-sustaining), and the display/power-saving mode. 3. If an alarm is triggered, the ECOLOG-NET LP4 has a collective alarm function. This function is simul- ...

  • Page 15: Collective Alarm Contact Functions

    TIONAL ALA IS DISPLAYED IN THE POWER SAVING MODE BY FULFILLING THE RELE- VANT CONDITIONS. THRESHOLD VALUES ARE NOT MONITORED WHEN THE LOGGER IS IN STOP MODE. 6.4 Collective alarm contact functions Datalogger type ECOLOG-NET LP4 has 4 possibilities for alarm signaling: Alarm signaling: - Relay contact S - Relay contact S - Alarm 1 This is a potential-free switch-over contact.
  • Page 16 Alarm protocol with 2 or 3 entries: Alarm on/off/acknowledged. MONITOR Represents an alarm till the end of the limit value vio- lation (5 cycle times). The duration of the self-retention period is not represented as an alarm. 16 - EN ECOLOG-NET LP4 EL6006Ee...
  • Page 17 Alarm with time delay not logged ECOLOG-NET Alarm contact reacts after the delay time has elapsed ANALYZE No alarm measurement ANALYZE Alarm protocol with 2 entries: alarm on/off. MONITOR Represents an alarm for 3 cycle time. EN - 17 ECOLOG-NET LP4 EL6006Ee...

  • Page 18: Contact Inputs D1 And D2

    Alarm forwarding is used in combination with the elproMONITOR software. The status (alarm / no alarm)  of the contacts is checked during the update of the monitor data. Status changes between two updates are not detected. 18 - EN ECOLOG-NET LP4 EL6006Ee...

  • Page 19: Pin Assignments And Connections

    ECA_4C_xxM_M12 ECA_LIYCY4X0,34 white white brown brown white back green white blue yellow Screen Pt100 3-wires Pt100 4-wires cable length < 12m Part no. ECA_PT100_SILxx Pt100 4-wires cable length 12 ... 30m Part no. ECA_4C_xxM_M12 EN - 19 ECOLOG-NET LP4 EL6006Ee...
  • Page 20 P i n a s s i g n m e n t s a n d c o n n e c t i o n s Pt100 4-wires cable length > 30m Part no. 800520  CABLE LENGTH 12.1 Measuring ranges and Accuracy 20 - EN ECOLOG-NET LP4 EL6006Ee...

  • Page 21: Alarm

    Switching load max. 42VAC or VDC; 500mA Alarm output 1  Alarm output 1(open) Semi-conductor contact! Use only for DC voltage (DCV) - Opens in the event of an alarm - No floating contact - Alarm cable max. 15m long EN - 21 ECOLOG-NET LP4 EL6006Ee...

  • Page 22: Supply, Contact Input, Alarm 2

    External power supply unit ply unit  ATTENTION: The starting current is temporarily ca 1.6A (100ms). If more than one dataloggeris being operated using the same power supply, the power supply must be appropriately powerful. 22 - EN ECOLOG-NET LP4 EL6006Ee...

  • Page 23: Alarm Diagrams

    - Semi-conductor contact! Use only for DC voltage (DCV) - Switch load max. 24VDC; 200mA 9.1.1 Elpro telephone dialing device - Alarm: Threshold violation, loss of datalogger power or cable damage between datalogger and telephone dialing device. - Jumper 16, see image - Settings B-TEL 2 Set "Connection type"...

  • Page 24: Status And Error Messages

    Datalogger is in Start/Stop mode and the memory is full. No further measured values can be logged. In order to resume data logging, the logger must be reprogrammed. This is the condition upon delivery of ECOLOG-NET LP4. b.F. Battery voltage is low C.F.

  • Page 25: Maintenance

    Replacing battery  AFTER THE BATTERIES ARE CHANGED, THE BATTERY CHANGE TIME MUST BE SET (ELPROLOG ANALYZE SOFTWARE - EXTENDED SETUP - PROGRAMMING BATTERY CHANGE TIME...) OTHERWISE THE ENERGY COUNTER WILL NOT FUNCTION CORRECTLY! EN - 25 ECOLOG-NET LP4 EL6006Ee...

  • Page 26: Technical Data

    500.0°C 0.1°C ± 0.3°C 500.1°C ... 600.0°C 0.1°C ± 0.5°C This information applies to the ECOLOG-NET LP4 sensors at room temperature and without Pt100. 12.1.2 Error caused by cable symmetries at lengths over 30m Length Cable typical errors 4x0.25mm , shielded ±...

  • Page 27: Dimensional View

    T e c h n i c a l d a t a 12.3 Dimensional view 1. Battery; for a battery exchange, the rear wall has to be removed. 2. Screws for the attachment of the rear wall EN - 27 ECOLOG-NET LP4 EL6006Ee...

  • Page 28: Accessories

    Plug M12 (f) with insulation displacement connection technology 800359 Plug M12 (m) with insulation displacement connection technology 800362 800363 800556 Various alarm flashers 800496 Replacement battery, set of 2, can be stored for up to 5 years 28 - EN ECOLOG-NET LP4 EL6006Ee...

  • Page 29: Declarations Of Conformity

    D e c l a r a t i o n s o f c o n f o r m i t y 13. Declarations of conformity EN - 29 ECOLOG-NET LP4 EL6006Ee...
  • Page 30 A. Gubler 21.12.2011 Minor changes A. Gubler 01.10.2012 New Graphic A. Gubler 03.06.2013 No marking of the sensor cable required A. Gubler 13.01.2014 Several minor text corrections A. Gubler 21.11.2016 New CE declaration, ATEX removed 30 - EN ECOLOG-NET LP4 EL6006Ee...

  • Page 31: Index

    Display 5 E 13 Status reports 24 Documentation for the installation 9 System resets 6 Telephon dialing device 23 ECOLOG-NET LP4 6 Telephon dialing device - DB9 23 elproLOG ANALYZE 9 Temperature influence 7 elproLOG CONFIG 9 Threshold value violation 14...
  • Page 32 (Head Office) ELPRO-BUCHS AG Langäulistrasse 45 9470 Buchs SWITZERLAND e-mail: swiss@elpro.com For local representatives see: www.elpro.com Operation Manual ECOLOG-NET LP4 EL6006Ee 11.2016...
