INSTRUCTIONS–PARTS LIST
Bottom Outlet Kit
Part Number 236–677
100 psi (7 bar) Maximum Working Pressure
For use on 5, 10, and 15 gallon stainless steel Pressure Tanks, model no. 236–143 through 236–154, to change
from top outlet fluid transfer to bottom outlet fluid transfer.
General

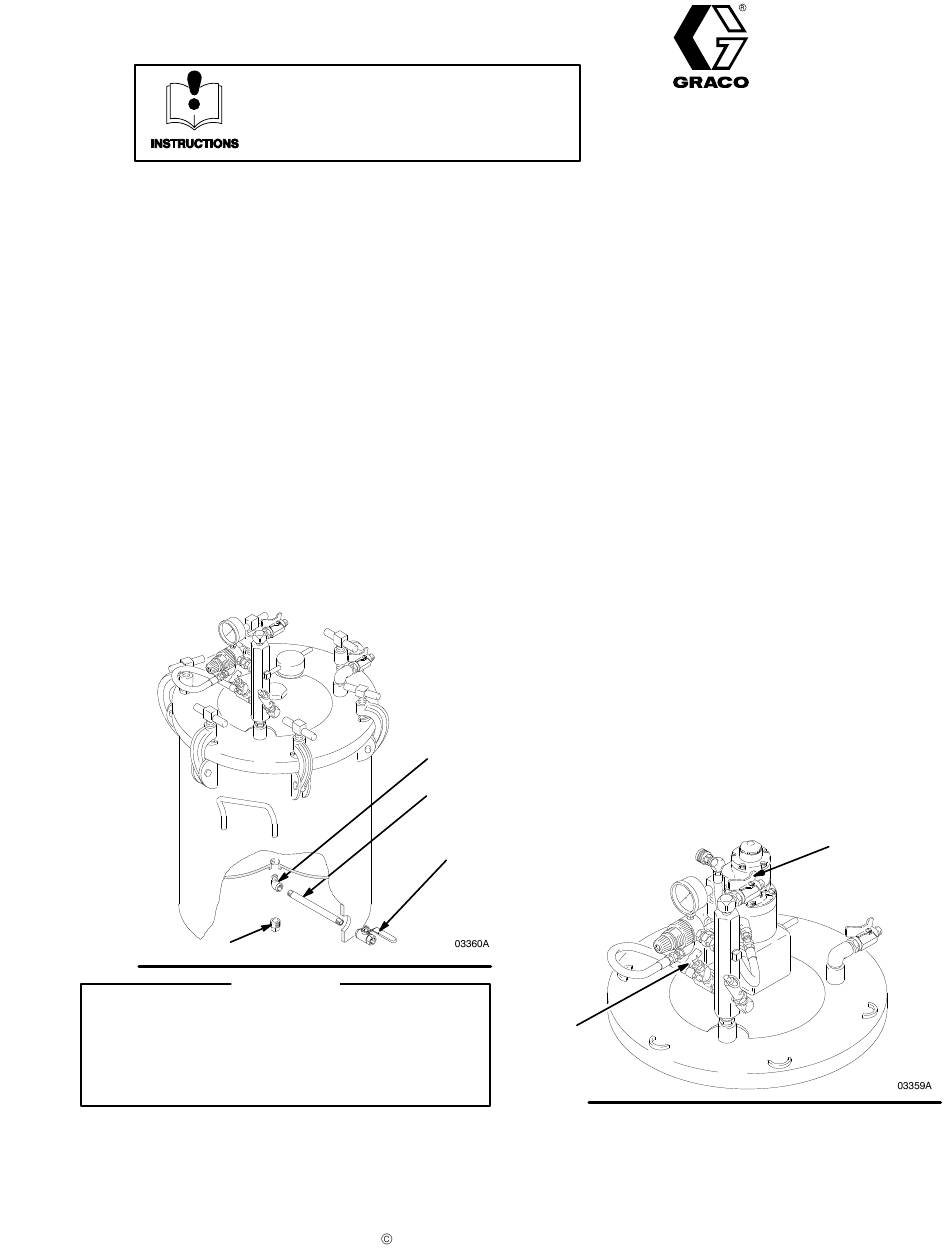

(See Fig. 1)
The kit includes the following parts:
Ref.
No. Part No. Description
1 111–386 ELBOW, street; 3/4 npt; sst
2 185–975 NIPPLE, pipe
3 512–485 VALVE, ball; 3/4 npt; sst
A
Fig. 1
WARNING
Alway s follow the Pressure Relief Procedure be-
fore opening the tank cover or fill port. This re-
duces the risk of serious injury, including splashing
in the eyes or on the skin, or injury from moving
parts.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
This manual contains important
warnings and information.
READ AND RETAIN FOR REFERENCE
Installation
1
2
COPYRIGHT 1994, GRACO INC.
Pressure Relief Procedure
Pressure tanks remain pressurized until pressure is
manually relieved. Always relieve pressure in the tank
before checking or servicing any part of the spray sys-
Qty.
tem; before loosening or removing the pressure tank
1
cover or fill port; and whenever you stop spraying. Re-
1
fer to Fig. 2.
1
1. Shut off the air supply to the tank by closing the air
inlet valve (4).
2. Open the drain cock fitting (5) by turning it counter-
clockwise.
3. Wait until no air is escaping through the drain cock
fitting before removing the cover or opening the fill
port.
4. Leave the drain cock fitting (5) open until you have
reinstalled the cover or fill port.
3
5
Fig. 2
308–375
Rev. B
Supersedes A
4
