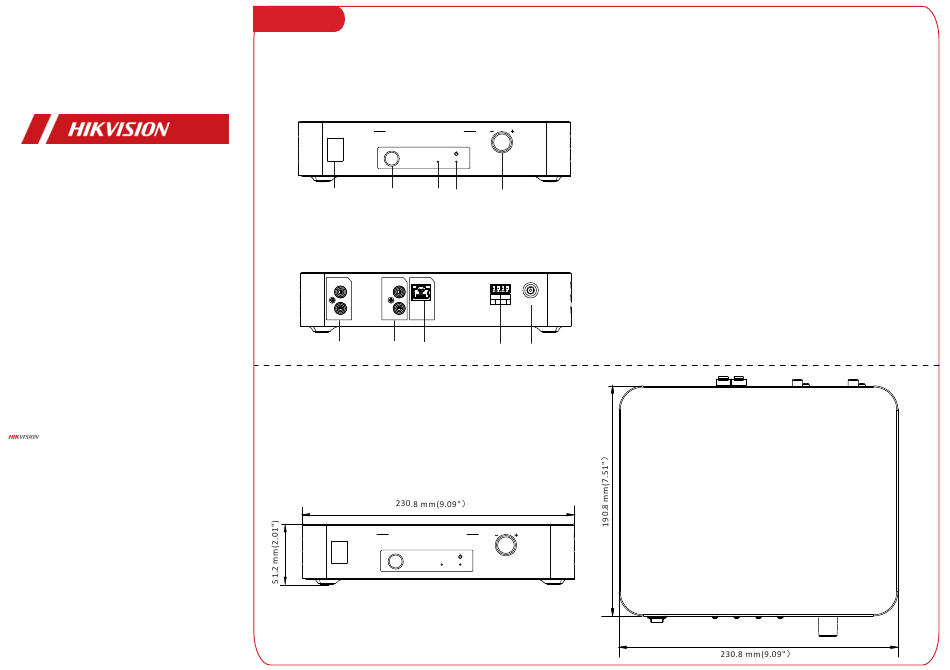

1 Appearance
Appearance
Front Panel
Professional Network Decoder
ON
MIC RESET
OFF
Power Switch MIC Input Reset
Rear Panel
RCA IN LAN
RCA OUT
RCA Output RCA Input Network Interface
Dimensions
Professional Network Decoder
ON
MIC RESET
OFF
MIC
Power Indicator MIC Volume Knob
ALARM ALARM
OUT IN
1A 1B GND IN
DC24V
Alarm Interface Power Interface
MIC
Indicators:
Power indicator (solid white): the device is normally working.
Buttons:
Reset: press and hold for 5 seconds to restore the device to factory settings.
Knobs:
MIC volume knob: adjust the volume of MIC.
Interfaces:
MIC input: connect to the 6.35 mm moving-coil microphone.
RCA output: connect to the analog amplifier or the speaker with amplifier module.
RCA input: connect to the audio device with RCA interface.
LAN: for network connection.
Power interface: 24 VDC.
Alarm interface: 1 alarm input and 1 alarm output.
