GRP260x Series - Administration Guide
Thank you for purchasing Grandstream GRP260X Essential IP Phones.
The GRP Series of Essential IP Phones provides simple, easy-to-use devices with zero-touch provisioning for mass deployment
and easy management. The four devices in the Essential series are designed to offer simple-to-use, affordable desktop IP
Phones with a sleek design and next-generation features. Built for the needs of on-site and remote workers and designed for
easy deployment by enterprises, service providers, and other high-volume markets, these essential IP phones offer an easy-to-
use and easy-to-deploy voice endpoint.
PRODUCT OVERVIEW
Feature Highlights

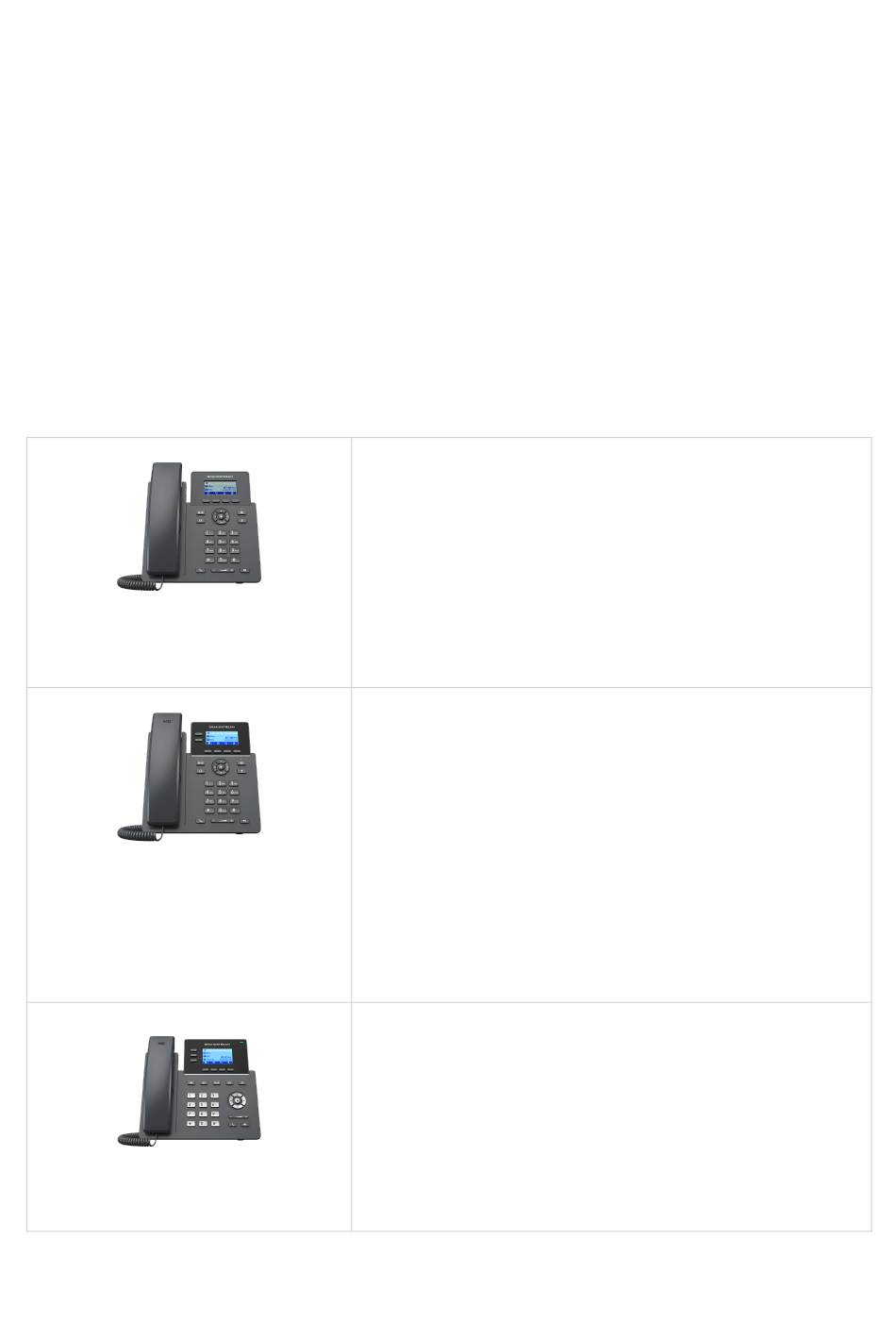

The following table contains the major features of the GRP260X phones:
GRP2601
GRP2601P
GRP2601W
GRP2602
GRP2602P
GRP2602W
GRP2602G
GRP2603
GRP2603P
● 4 programmable context-sensitive soft keys.
● 10/100M net work ports.
● Integrated PoE (for GRP2601P only).
● 5-way conference.
● Electronic Hook Switch (EHS) support for Plantronics & Jabra &
Sennheiser.
● Wi-Fi support (GRP2601W only).
● 2 SIP account keys with dual-color LED
● 4 programmable context-sensitive soft keys.
● 10/100M network ports. (1000M for GRP2602G)
● Integrated PoE (for GRP2602P/GRP2602G only).
● 5-way conference.
● Electronic Hook Switch (EHS) support for Plantronics & Jabra &
Sennheiser.
● Wi-Fi support (GRP2602W only).
● 3 SIP account keys with dual-color LED.
● 4 XML programmable context sensitive soft keys
● 132 x 64 backlit graphical LCD display
● 10/100/1000 Mbps Ethernet ports.
● Integrated PoE (GRP2603P only).
● 5-way conference.
● Electronic Hook Switch (EHS) support for Plantronics & Jabra &
Sennheiser.
