Installing the I/O board and joystick-button board
Steps
1.
Connect the cables to the connectors on the I/O board and the joystick-button board.
2.
Replace the screw (D3x5) to secure the I/O board to the back cover.
3.
Replace the two screws (D3x5) to secure the joystick-button board to the back cover.
Disassembly and reassembly
34

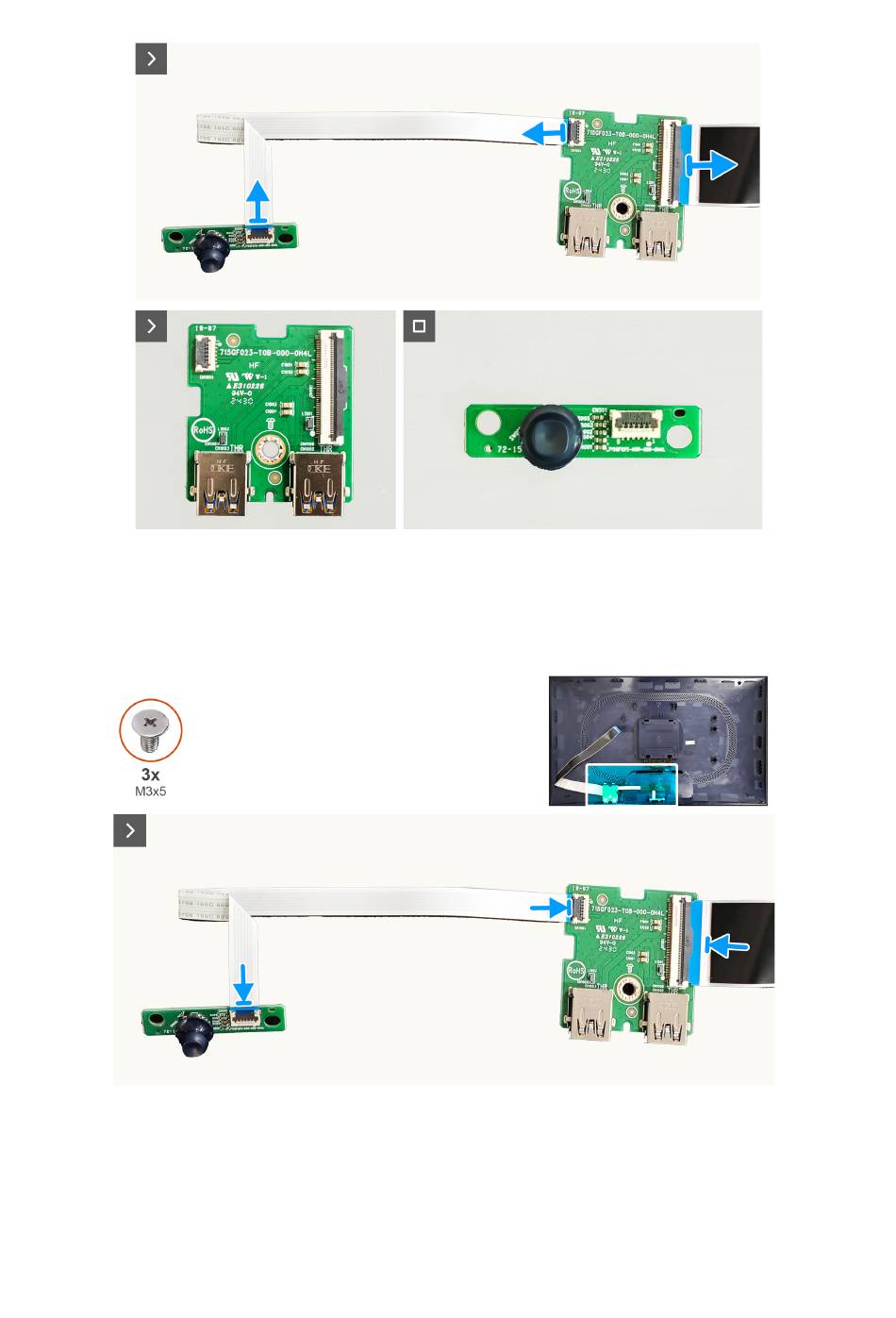

Figure 42. Removing the I/O board and joystick-button board
Figure 43. Installing the I/O board and joystick-button board
