Dell AW2725DFB Teardown Manual

DELL AW2725DFB

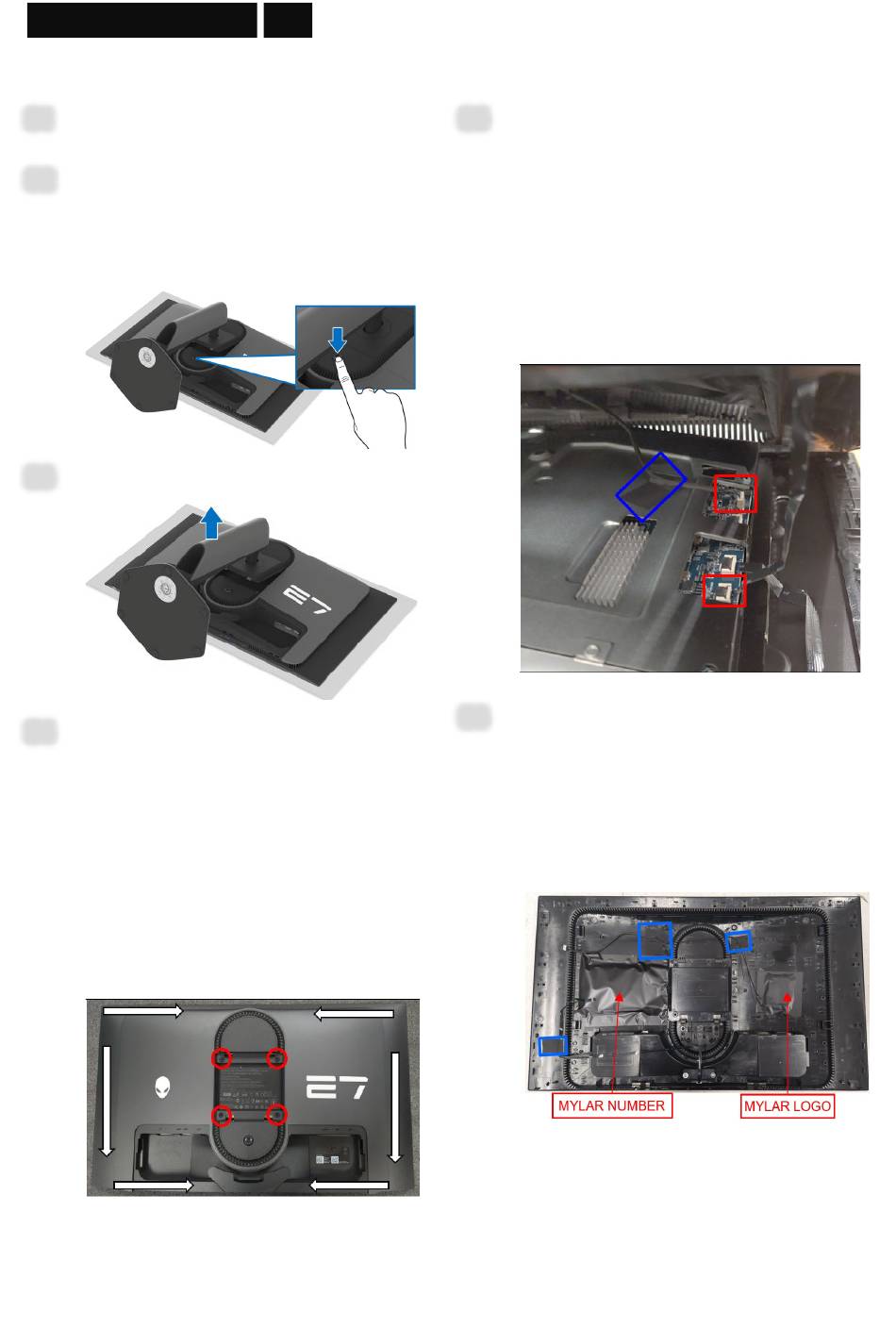

1. Disassembly Procedures
Turn off the monitor.
S1
Place the monitor on a soft cloth or
S2
cushion
Press and hold the stand release button
at the back of the display
Lift the stand assembly up and away
S3
from the monitor
Unlock 4 screws on "Rear Cover"
S4
Use hands and scraper bar to gently
disassemble "Rear Cover" from the
monitor.
Notice the disassembly order:
Top Side/ Right Side=> Left side
=>Bottom Side
Gently pull up "Rear Cover" from bottom
side to top side
(Screw Torque: 8~9 kgf)
1
Tear off tape from "WIRE 6P/4P/4P" on
S5
"Main Shielding"
Unplug below cables from "Interface
board"
a. WIRE 6P/4P/4P
b. Control board to Interface board FFC
Take off "Rear Cover" from monitor
head
Tear off 3 acetate tapes from "WIRE
S6
6P/4P/4P" on "Rear Cover"
Tear off "MYLAR NUMBER" from "Rear
Cover"
Tear off "MYLAR LOGO" from "Rear
Cover"
