Summary of Contents for OfficeSource 301ML

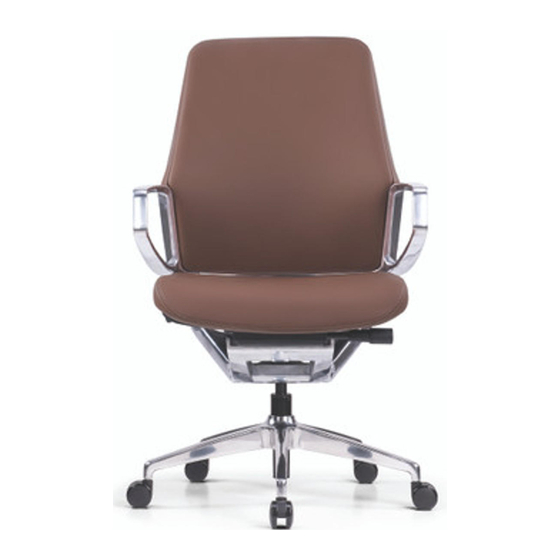

- Page 1 Model #:301MLCA ASSEMBLY INSTRUCTIONS Name:Veneto MODEL NO. 301ML Descrip�on:Execu�ve Mid-Back Chair Color:Caramel Assembly & Opera�ng Instruc�ons Please read the instruc�on sheets completely before assembly. Maximum Weight Load: 275lbs. OFFICESOURCE.COM Last Updated: 12/2022...
-
Page 2: Assembly Notes
ASSEMBLY INSTRUCTIONS MODEL NO. 301ML Assembly Notes 1.After opening the carton, please carefully check for missing parts and transportation damage and if needed, contact dealer immedi- ately. 2.Once installed, the gas lift will be difficult to remove. It is not recommended to remove the lift to avoid damage to other parts of the chair. -
Page 3: Parts List
ASSEMBLY INSTRUCTIONS 301MLCA assembly and operating instructions MODEL NO. 301ML Parts list Back with mechanism X1 Aluminum base x1 KGS class 4 gas lift X1 Casters X5 OFFICESOURCE.COM Last Updated: 12/2022... -
Page 4: Installation Steps
ASSEMBLY INSTRUCTIONS MODEL NO. 301ML Installation steps STEP1 STEP2 STEP3 STEP4 OFFICESOURCE.COM Last Updated: 12/2022... -
Page 5: Seat Slider
ASSEMBLY INSTRUCTIONS MODEL NO. 301ML Seat slider / Function lever located on the right hand side of the mechanism Pull out the hand lever for sliding function and release when desired position is reached Adjust sliding seat so that hips and knees are at a 90 degrees angle, it reduces tiredness. -
Page 6: Height Adjustment
ASSEMBLY INSTRUCTIONS MODEL NO. 301ML Height adjustment / Control rod located on the right hand side of mechanism To raise the seat, shift your weight to your feet. Engage actuator. Chair will rise automatically To lower seat, place your full weight on the chair, and engage actuator lever.
