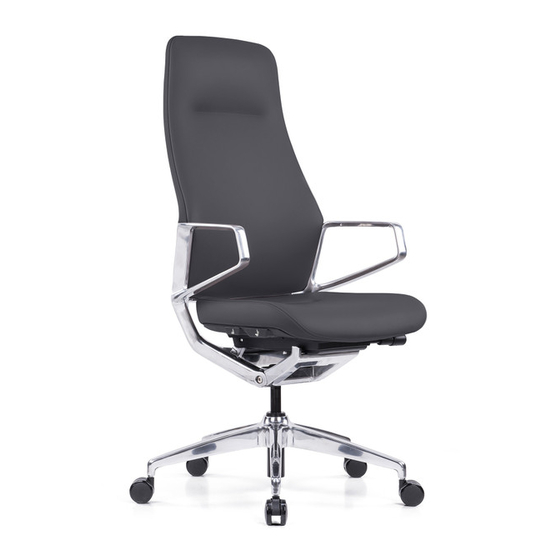

- Page 1 Model #:300HLCA ASSEMBLY INSTRUCTIONS Name:Veneto MODEL NO. 300HL Descrip�on:Execu�ve High Back Chair Color:Caramel Assembly & Opera�ng Instruc�ons Please read the instruc�on sheets completely before assembly. Maximum Weight Load: 275lbs. OFFICESOURCE.COM Last Updated: 12/2022...
- Page 2 ASSEMBLY INSTRUCTIONS MODEL NO. 300HL Assembly Notes 1.After opening the carton, please carefully check for missing parts and transportation damage and if needed, contact dealer immedi- ately. 2.Once installed, the gas lift will be difficult to remove. It is not recommended to remove the lift to avoid damage to other parts of the chair.
- Page 3 ASSEMBLY INSTRUCTIONS 300HLCA assembly and operating instructions MODEL NO. 300HL Parts list Back with mechanism X1 Aluminum base x1 KGS class 4 gas lift X1 Casters X5 OFFICESOURCE.COM Last Updated: 12/2022...
- Page 4 ASSEMBLY INSTRUCTIONS MODEL NO. 300HL Installation steps STEP1 STEP2 STEP3 STEP4 OFFICESOURCE.COM Last Updated: 12/2022...
- Page 5 ASSEMBLY INSTRUCTIONS MODEL NO. 300HL Seat slider / Function lever located on the right hand side of the mechanism Pull out the hand lever for sliding function and release when desired position is reached Adjust sliding seat so that hips and knees are at a 90 degrees angle, it reduces tiredness.
- Page 6 ASSEMBLY INSTRUCTIONS MODEL NO. 300HL Height adjustment / Control rod located on the right hand side of mechanism To raise the seat, shift your weight to your feet. Engage actuator. Chair will rise automatically To lower seat, place your full weight on the chair, and engage actuator lever.
