Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with
the parts list and/or hardware list shown below.
Cautions :
(1) Do not fully-tighten the nuts or bolts until all nuts and bolts are assembled.
(To avoid causing damages to the thread, do not over-tighten the nuts or bolts.)
(2) Keep all hardware part out of reach of children.

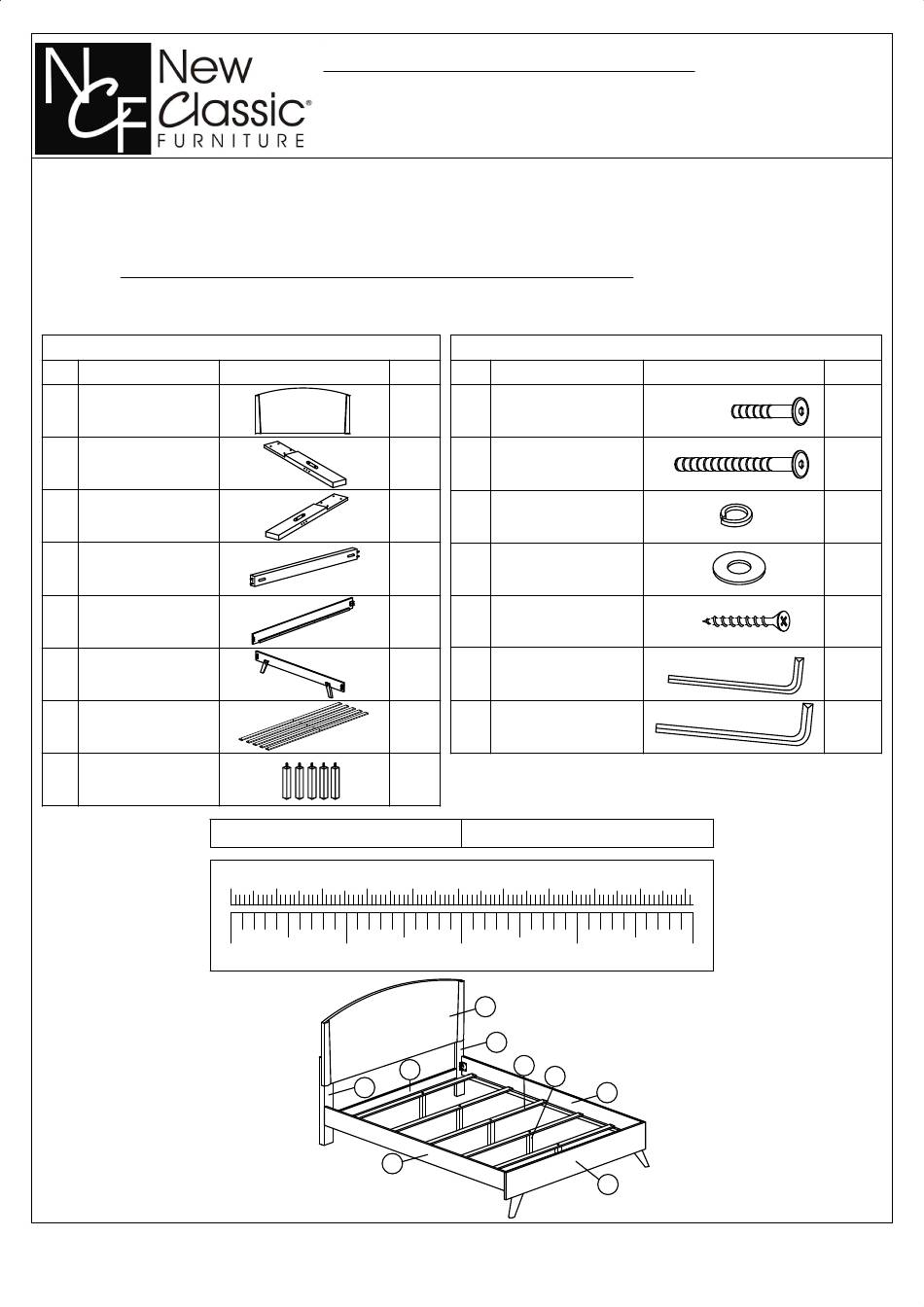

PARTS LIST
NO
DESCRIPTION
A
HEADBOARD
HEADBOARD
B
RIGHT SIDE
FACING (RSF) LEG
HEADBOARD
C
LEFT SIDE
FACING (LSF) LEG
HEADBOARD
D
CROSS
BAR
E
SIDE RAIL
F
FOOTBOARD
G
SLAT
SLAT
H
SUPPORT
LEG
ASSEMBLY INSTRUCTIONS
B1078-315 REX 5/0 Q PLATFORM HEADBOARD,
FOOTBOARD & SLATS
B1078-335 REX 5/0-6/6 Q/EK PLATFORM SIDE RAILS
(1PC 2 CARTON)
SKETCH
1 PC
1 PC
1 PC
1 PC
2 PCS
1 PC
5 PCS
5 PCS
WEIGHT CAPACITY
0
1
2
3
0
1
C
D
QTY
NO
DESCRIPTION
SHORT BOLT
1
1/4" x 1 3/8''
LONG BOLT
2
1/4" x 2''
SPRING WASHER
3
1/4"
FLAT WASHER
4
1/4"
CSK SCREW
5
5/32'' x 1 1/4''
6
ALLEN KEY 5/32''
7
ALLEN KEY 3/16''
500 pounds
4
5
6
7
2
3
A
B
G
D
H
HARDWARE LIST
SKETCH
8
9
10
4
D
F
Created Date : 19/09/2024
QTY
13 PCS
2 PCS
15 PCS
8 PCS
10 PCS
1 PC
1 PC
Page 1 of 4
Advertisement
Related Manuals for New Classic Furniture REX B1078-315
Summary of Contents for New Classic Furniture REX B1078-315
- Page 1 ASSEMBLY INSTRUCTIONS B1078-315 REX 5/0 Q PLATFORM HEADBOARD, FOOTBOARD & SLATS B1078-335 REX 5/0-6/6 Q/EK PLATFORM SIDE RAILS (1PC 2 CARTON) Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose inside the carton during shipment. Identify and count all items and compare with the parts list and/or hardware list shown below.
- Page 2 STEP 1 : Assemble the Headboard Cross Bar (D) between the Headboard RSF Leg (B) and Headboard LSF Leg (C) by using the Allen Key (6) and the hardware Long Bolt 1/4" x 2'' (2) & Spring washer (3). BACK VIEW STEP 2 : Place the Headboard (A) face down on a flat and clean surface.
- Page 3 STEP 3 : Assemble the Side Rails (E) to the Headboard Legs (B & C) and Footboard (F) by using the Allen Key (7). STEP 4 : Assemble the Slat Support leg (H) to the Slat (G) by using the Allen Key (6) and the hardware Short Bolt 1/4"...
- Page 4 STEP 5 : Assemble the Slat (G) to the the Side Rails (E) by using the Csk Screw 5/32'' x 1 1/4'' (5) with a screwdriver. COMPLETED ASSEMBLY. Page 4 of 4 Created Date : 19/09/2024...
